FRONT FORK DAMPER (MODEL X/Y)

SV650 2002 (K2) USA (E03)

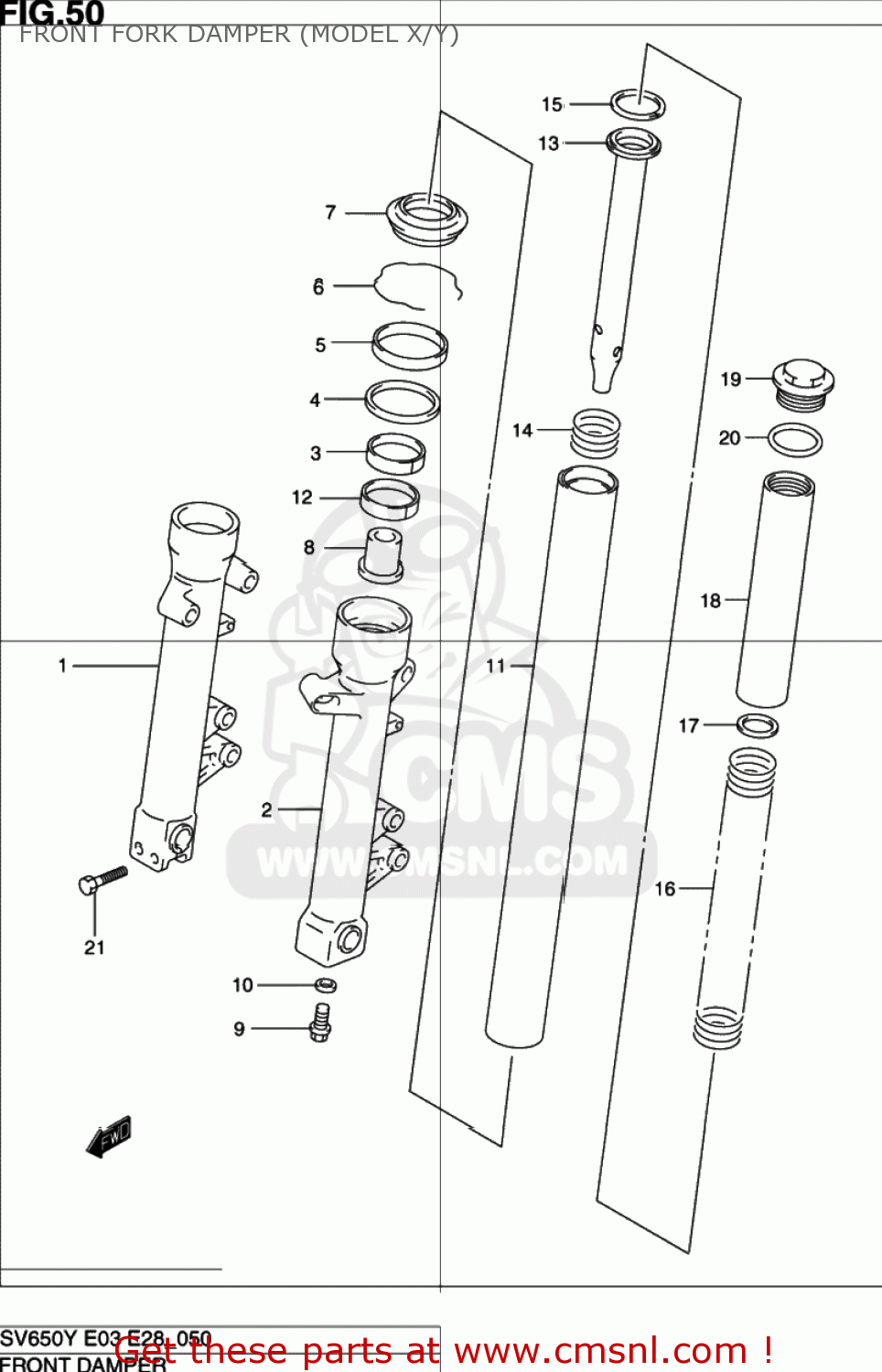

Front fork damper (model x/y) diagram SV650 2002 (K2) USA (E03)

FRONT FORK DAMPER (MODEL X/Y) SV650 2002 (K2) USA (E03)
FRONT FORK DAMPER (MODEL X/Y) SV650 2002 (K2) USA (E03)
FRONT FORK DAMPER (MODEL X/Y) SV650 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity

5110320F20
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 0.00

5110420F20
ref:
DAMPER ASSEMBLY,FRONT FORK
€ 0.00

5110320F00
ref:
DAMPER ASSY,FR FORK,R
5110320F00
€ 502.00

5110420F00
ref:
DAMPER ASSY,FR FORK,L
€ 502.00
1
5113020F00
ref: 1
TUBE,OUTER,R
€ 402.50
2
5114020F00
ref: 2
51140-20FA0
TUBE,OUTER,LEFT
€ 764.00
3
5116726E10
ref: 3
METAL,SLIDE
5116726E10
€ 20.50
4
5115805A00
ref: 4
WASHER,FORK OIL SEAL
5115805A00
€ 5.00
5
5115314F00
ref: 5
SEAL,OIL
5115314F00
€ 25.00
6
5115649440
ref: 6
RING,OIL SEAL STOPPER
5115649440
€ 5.50
7
5117314F00
ref: 7
SEAL,DUST
5117314F00
€ 18.50
8
5119533D10
ref: 8
PIECE,OIL LOCK
5119533D10
€ 18.00
9
5114716510
ref: 9
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
10
5114841310
ref: 10
GASKET (NAS)
5114841310
€ 2.50
11
5111020F00
ref: 11
TUBE,INNER
€ 481.50
12
5112133D10
ref: 12
PISTON
5112133D10
€ 11.00
13-1
5114620F20
ref: 13-1
CYLINDER
€ 0.00
13-2
5114620F00
ref: 13-2
CYLINDER
€ 87.50
14
5117706C00
ref: 14
SPRING,REBOUND
5117706C00
€ 10.50
15
5119633D10
ref: 15
RING,PISTON
5119633D10
€ 7.50
16
5117119F00
ref: 16
SPRING,FR
5117119F00
€ 76.50
17
5135610D03
ref: 17
WASHER(22.5X35.9X1.6)
5135610D03
€ 3.00
18-1
5117620F20
ref: 18-1
SPACER,SPRING
€ 9.00
18-2
5117620F00
ref: 18-2
51176-20F20
SPACER,SPRING
€ 9.00
19
5135133D00
ref: 19
CAP,OUTER TUBE
€ 36.00
20
0928032001
ref: 20
O RING(D:3.5,ID:31.7)
0928032001
€ 2.00
21
0155008457
ref: 21
BOLT
0155008457
€ 4.00
