EVAP SYSTEM (E33)
SV650 2006 (K6) USA (E03)

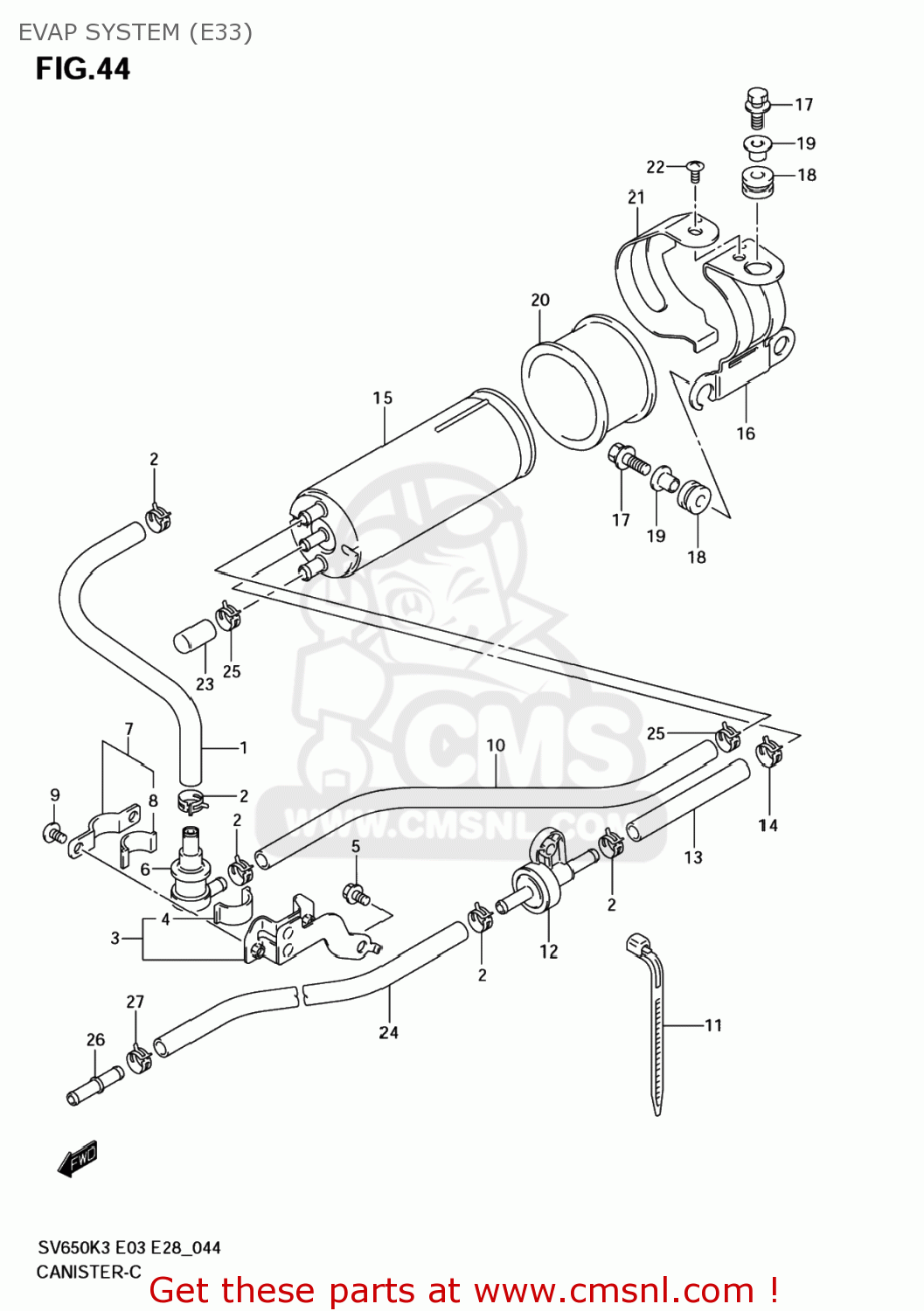

Evap system (e33) diagram SV650 2006 (K6) USA (E03)
EVAP SYSTEM (E33) SV650 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4443416G00
ref: 1
HOSE,TANK & BREATHER VALVE
€ 0.00
2
0940111413
ref: 2
CLIP
€ 2.50
3
4489016G00
ref: 3
PLATE,BREATHER VALVE
€ 0.00
4
4489424A00
ref: 4
CUSHION
€ 1.50
5
0155006103
ref: 5
01550-0610A
BOLT
€ 2.50
6
4424017C00
ref: 6
VALVE,FUEL TANK BREATHER
€ 40.00
7
4489224A00
ref: 7
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
8
4489424A00
ref: 8
CUSHION
€ 1.50
9
0214204083
ref: 9
02142-0408B
SCREW
€ 1.50
10
0935554116600
ref: 10
HOSE(5.4X11.4X600)
€ 12.00
11
0940718402
ref: 11
CLAMP(L:165)
€ 2.50
12
4424024F00
ref: 12
VALVE,2 WAY & BREATHER VALVE
€ 44.50
13
0935554116600
ref: 13
HOSE(5.4X11.4X600)
€ 12.00
14
0940111413
ref: 14
CLIP
€ 2.50
15
1721026E00
ref: 15
CANISTER ASSY,CHARCOAL
€ 261.50
16
4488116G00
ref: 16
BRACKET,CANISTER
€ 0.00
17
0911606025
ref: 17
BOLT(6X25)
€ 2.50
18
0932008001
ref: 18
CUSHION
€ 3.50
19
0916906062
ref: 19
WASHER
€ 3.00
20
4488326E00
ref: 20
CUSHION,CANISTER
€ 9.00
21
4488216G00
ref: 21
HOLDER,CANISTER
€ 0.00
22
0214206103
ref: 22
02142-0610A
SCREW 6X10
€ 2.00
23
0925107003
ref: 23
CAP,OD:11.5
€ 2.00
24
0935954112760
ref: 24
HOSE(5.4X11.4X760)
€ 28.00
25
0940112404
ref: 25
CLIP
€ 2.50
26
0936706009
ref: 26
JOINT
€ 2.50
27
0940111413
ref: 27
CLIP
€ 2.50
