HANDLEBAR (WITH COWLING)
SV650 2006 (K6) USA (E03)

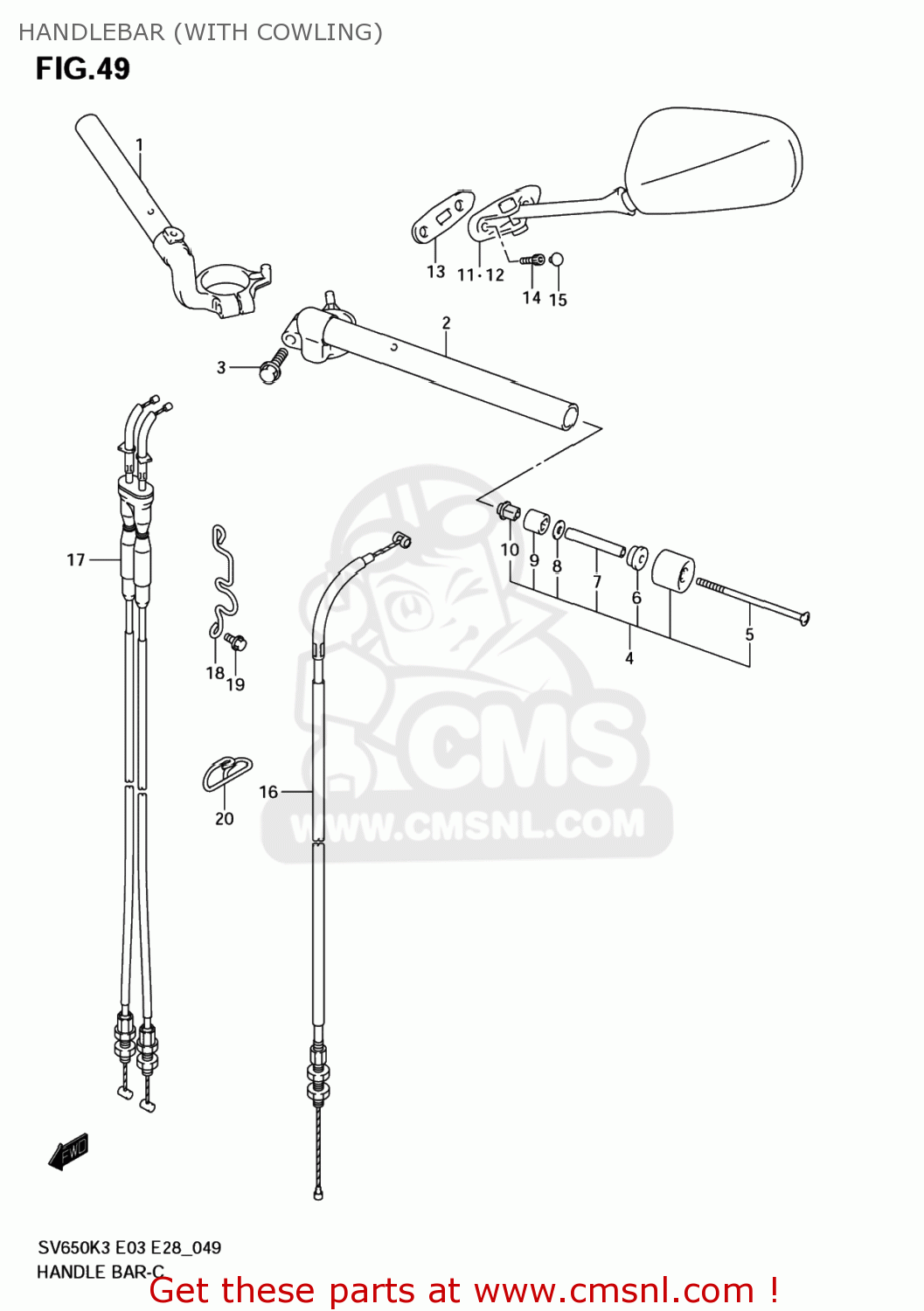

Handlebar (with cowling) diagram SV650 2006 (K6) USA (E03)
HANDLEBAR (WITH COWLING) SV650 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611117G00
ref: 1
HANDLEBAR,R
€ 158.00
2
5615117G00
ref: 2
HANDLEBAR,L
€ 158.00
3
5612335F00
ref: 3
BOLT,HANDLEBAR
€ 5.50
4
5620016830
ref: 4
56200-16831
BALANCER SET,H
€ 33.00
5
0212206953
ref: 5
02122-0695B
SCREW,HANDLE B
€ 2.50
6
5627223F00
ref: 6
EXPANDER,HANDLE BALANCER
€ 9.00
7
5627617D00
ref: 7
SPACER,EXPANDER
€ 2.50
8
0916006130
ref: 8
WASHER(6.5X16X1.6)
€ 2.00
9
5627210G00
ref: 9
EXPANDER,HANDLE BALANCER
€ 3.00
10
5627310G00
ref: 10
56273-10G10
NUT,HANDLE BAL
€ 6.50
11-1
5650016G00
ref: 11-1
56500-16G10
MIRROR ASSY,RE
€ 136.00
11-2
5650016G10
ref: 11-2
MIRROR ASSY,RR VIEW,R
€ 136.00
12-1
5660016G00
ref: 12-1
56600-16G10
MIRROR ASSY,RE
€ 145.50
12-2
5660016G10
ref: 12-2
MIRROR ASSY,RR VIEW,L
€ 145.50
13
9457624F00
ref: 13
CUSHION,RR VIEW MIRRORR
€ 5.00
14
0713006163
ref: 14
07130-0616B
BOLT,OIL FILLE
€ 3.00
15
0925005009
ref: 15
CAP(OD:10)
€ 2.50
16
5820017G10
ref: 16
CABLE ASSY,CLUTCH
€ 41.50
17
5830016G10
ref: 17
CABLE ASSY,THROTTLE
€ 69.00
18-1
5862116GA0
ref: 18-1
GUIDE,CABLE L
€ 15.50
18-2
5862116GC0
ref: 18-2
GUIDE,CABLE L
€ 15.50
19
0155006123
ref: 19
01550-0612A
BOLT
€ 2.50
20
5862116GB0
ref: 20
GUIDE,THROTTLE CABLE
€ 11.50
