REAR MASTER CYLINDER (SV650K4/SK4/K5/SK5/K6/SK6/K7/SK7)

SV650 2006 (K6) USA (E03)

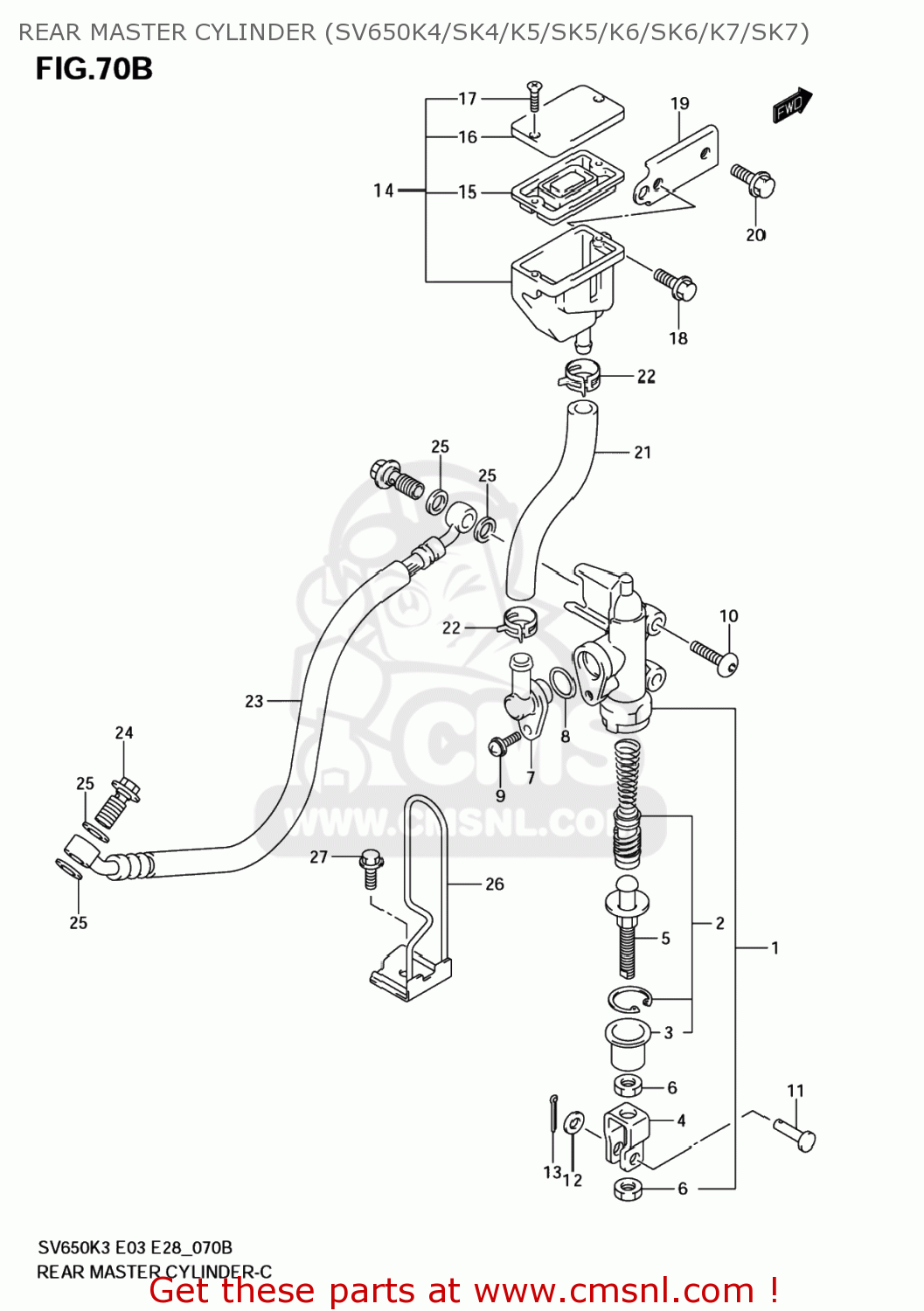

Rear master cylinder (sv650k4/sk4/k5/sk5/k6/sk6/k7/sk7) diagram SV650 2006 (K6) USA (E03)

REAR MASTER CYLINDER (SV650K4/SK4/K5/SK5/K6/SK6/K7/SK7) SV650 2006 (K6) USA (E03)

REAR MASTER CYLINDER (SV650K4/SK4/K5/SK5/K6/SK6/K7/SK7) SV650 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6960016G00
ref: 1

CYLINDER ASSY,RR MASTER

€ 254.50

2

6960034820
ref: 2

PISTON/CUP SET

€ 37.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967048B00
ref: 5

ROD,PUSH

€ 20.50

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

021127412A
ref: 9

SCREW

€ 2.50

10

0913906028
ref: 10

SCREW(6X20)

€ 3.50

11

0920006068
ref: 11

PIN(6X18.2)

€ 5.00

12

083220106A
ref: 12

WASHER

€ 2.00

13

0411120158
ref: 13
04111-2015A

PIN

€ 1.50

14

6974001D02
ref: 14

TANK ASSY,RR RESERVOIR

€ 58.00

15

5966704700
ref: 15

DIAPHRAGM

€ 8.00

16

5966905D00
ref: 16

CAP

€ 13.50

17

6968904A00
ref: 17

SCREW

€ 2.00

18

0910306222
ref: 18

BOLT(6X12)

€ 2.00

19

6975016G10
ref: 19

BRACKET,RR RESERVOIR TANK

€ 14.00

20

015500616A
ref: 20

BOLT

€ 2.50

21

6973116G20
ref: 21

HOSE,RR RESERVOIR TANK

€ 17.00

22

0940113417
ref: 22

CLIP

€ 2.50

23-1

6948016G30
ref: 23-1

HOSE,RR BRAKE

€ 63.00

23-2

6948017G10
ref: 23-2

HOSE,RR BRAKE

€ 37.50

24

0936010042
ref: 24
09360-10062

BOLT UNION

€ 5.00

25

0916110009
ref: 25

WASHER(10X15X1.5)

€ 2.00

26

6926016G00
ref: 26

GUIDE,RR BRAKE HOSE NO.1

€ 18.00

27

0154706163
ref: 27
01547-0616B

BOLT

€ 2.50
