FOOTREST (MODEL K4/K5/K6/K7)
SV650S 2004 (K4) USA (E03)

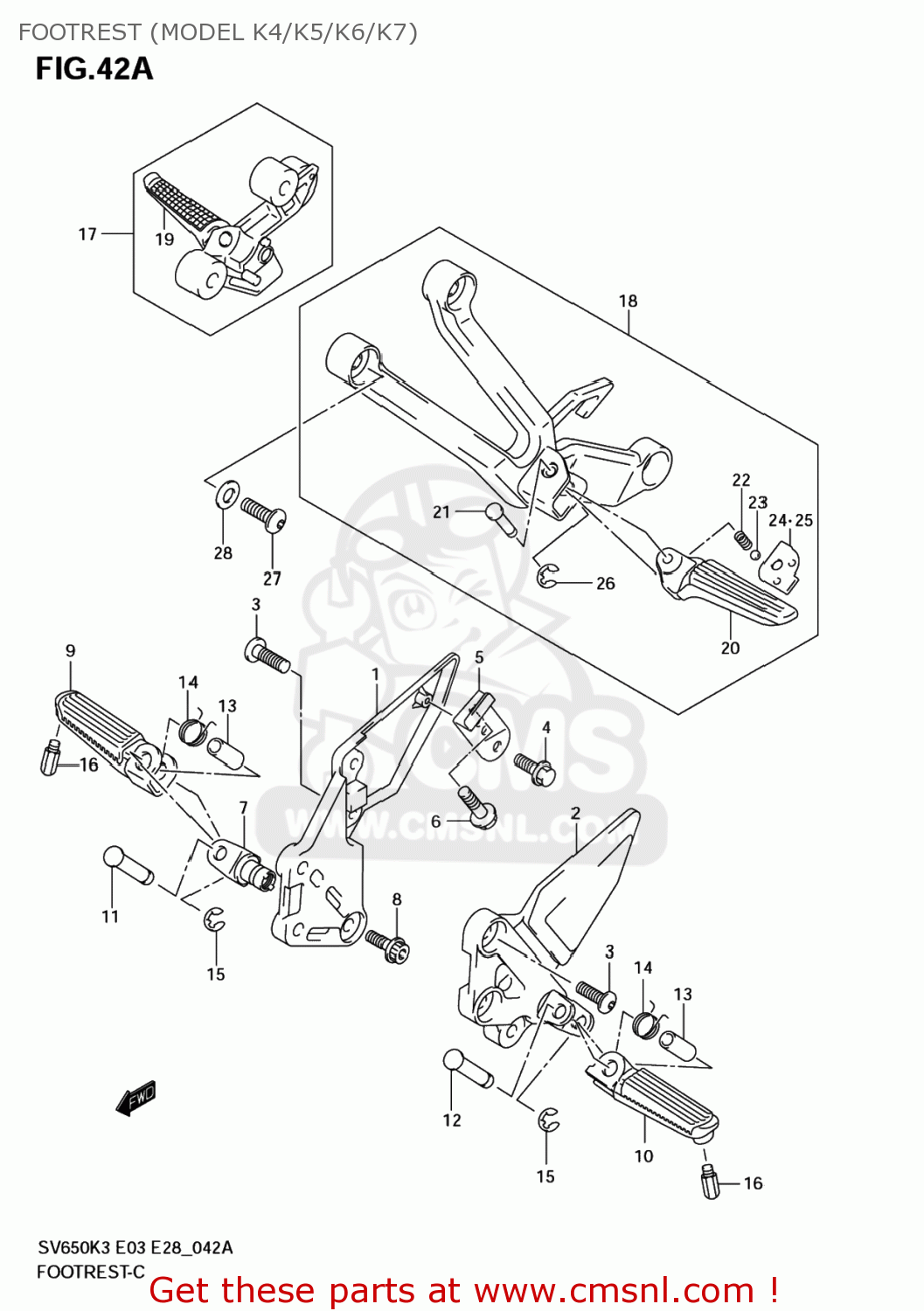

Footrest (model k4/k5/k6/k7) diagram SV650S 2004 (K4) USA (E03)
FOOTREST (MODEL K4/K5/K6/K7) SV650S 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351116G20
ref: 1-1
43511-16G21
BRACKET,FR FOO
€ 85.00
1-2
4351116G21
ref: 1-2
BRACKET,FR FOOTREST,R
€ 85.00
2-1
4352116G20
ref: 2-1
43521-16G21
BRACKET,FR FOOTREST,L
€ 76.50
2-2
4352116G21
ref: 2-2
BRACKET,FR FOOTREST,L
€ 76.50
3-1
0910608118
ref: 3-1
09106-08161
BOLT 8X20
€ 4.00
3-2
0910608167
ref: 3-2
BOLT(8X20)
€ 3.50
4
0155006103
ref: 4
01550-0610A
BOLT
€ 2.50
5-1
4357116G00
ref: 5-1
REINF,FOOTREST BRACKET
€ 14.50
5-2
4357117G20
ref: 5-2
REINF,FOOTREST BRACKET
€ 10.50
6
0155008203
ref: 6
01550-0820A
BOLT
€ 3.00
7
4353016G00
ref: 7
HOLDER,FOOTREST,R
€ 24.00
8
0910610064
ref: 8
BOLT(10X28)
€ 4.50
9
4351002F11
ref: 9
BAR,FR FOOTREST,R
€ 37.00
10
4352002F11
ref: 10
BAR,FR FOOTREST,L
€ 37.00
11
0920808014
ref: 11
PIN
€ 4.00
12
0920808016
ref: 12
PIN
€ 4.00
13
0918008149
ref: 13
SPACER(8.1X12X22)
€ 7.00
14
0944818022
ref: 14
SPRING
€ 3.50
15
0833211063
ref: 15
08332-1106A
E.RING
€ 2.00
16
4357648B02
ref: 16
BOLT,BANK SENSOR
€ 4.00
17
4360017G20
ref: 17
FOOTREST ASSY,PILLION
€ 135.00
18
4370017G20
ref: 18
FOOTREST ASSY,PILLION
€ 135.00
19
4361135F01
ref: 19
BAR,PILLION FOOTREST,R
€ 35.00
20
4362135F01
ref: 20
BAR,PILLION FOOTREST,L
€ 35.00
21
8725985510
ref: 21
PIN
€ 4.50
22
0944005005
ref: 22
SPRING
€ 1.50
23
0611107004
ref: 23
BALL
€ 1.50
24
4381633E21
ref: 24
PLATE,PILLION FOOT,R
€ 15.00
25
4382633E22
ref: 25
PLATE,PILLION FOOT,L
€ 15.00
26
0833211043
ref: 26
08332-1104A
E-RING
€ 2.00
27
0910608150
ref: 27
BOLT(8X23)
€ 3.50
28
0916408020
ref: 28
WASHER
€ 2.50
