REAR WHEEL (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7)

SV650S 2004 (K4) USA (E03)

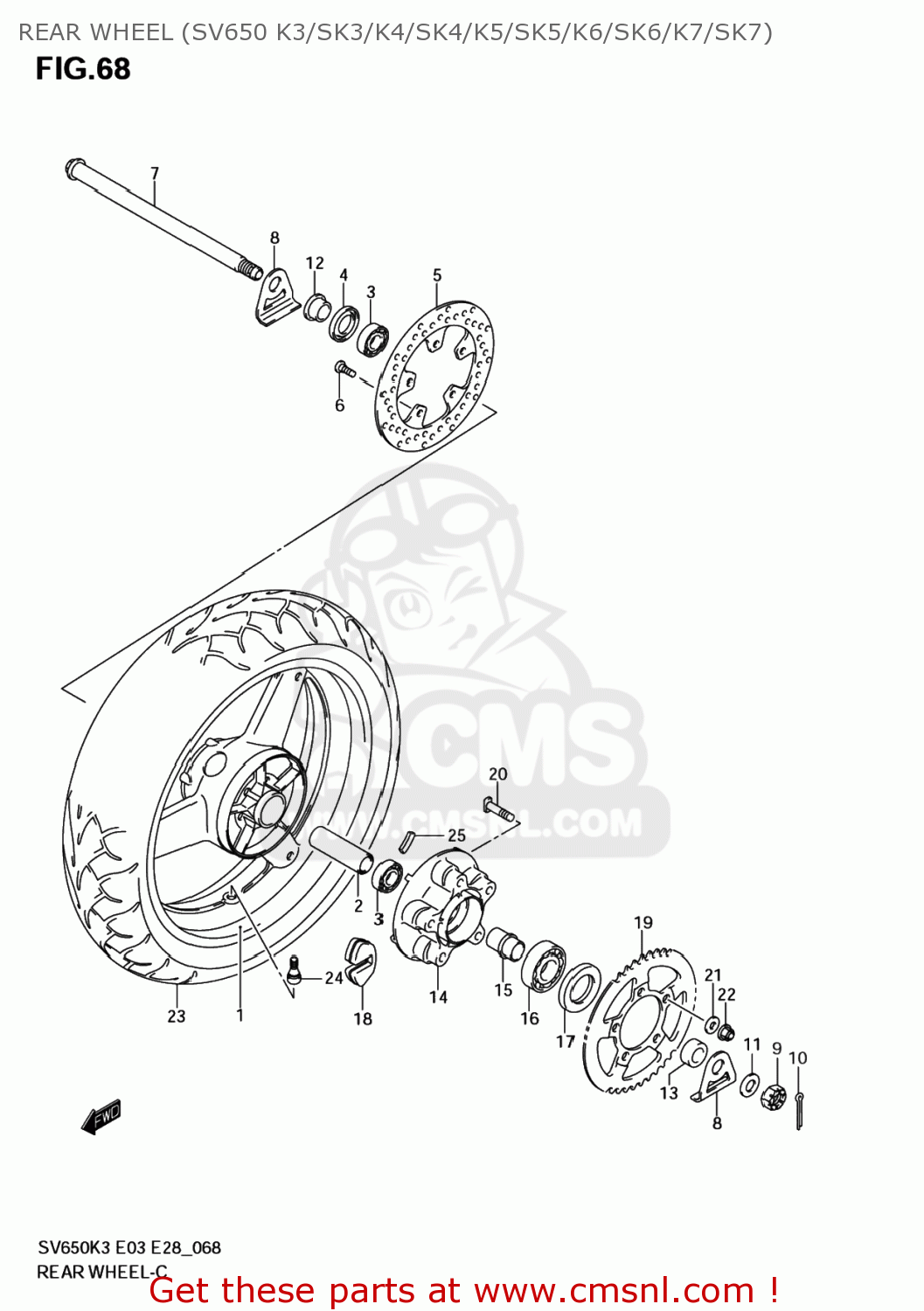

Rear wheel (sv650 k3/sk3/k4/sk4/k5/sk5/k6/sk6/k7/sk7) diagram SV650S 2004 (K4) USA (E03)

REAR WHEEL (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7) SV650S 2004 (K4) USA (E03)

REAR WHEEL (SV650 K3/SK3/K4/SK4/K5/SK5/K6/SK6/K7/SK7) SV650S 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

6411108F10Y6G
ref: 1-1
64111-08F11-Y6G

WHEEL,REAR,17X

€ 744.00

1-1

6411108F10Y6G
ref: 1-1
64111-08F11-Y6G

WHEEL,REAR,17X

€ 744.00

1-2

6411108F11019
ref: 1-2

WHEEL,RR(17M/CXMT4.50)

€ 1,224.50

1-2

6411108F11019
ref: 1-2

WHEEL,RR(17M/CXMT4.50)

€ 1,224.50

2

0918020062
ref: 2

SPACER(20.5X28X88)

€ 11.50

3

0926220042
ref: 3

BEARING(20X47X14)

€ 21.00

4

0928528001
ref: 4

SEAL,OIL(28X47X7)

€ 11.50

5

6921140F10
ref: 5

DISC,RR BRAKE

€ 199.50

6

0910608148
ref: 6

BOLT(8X33)

€ 6.00

7

6471117G10
ref: 7

AXLE,RR

€ 113.50

8

6144517G00
ref: 8

WASHER,CHAIN ADJUSTER

€ 9.00

9

0831440187
ref: 9

NUT

€ 6.00

10

0411140408
ref: 10
04111-4040A

PIN, COTTER

€ 2.00

11

0916018030
ref: 11

WASHER(18.5X28X2.6)

€ 2.50

12

6474122D00
ref: 12

SPACER,RR AXLE,R

€ 9.50

13

6475126E00
ref: 13

SPACER,RR AXLE,L

€ 20.50

14

6461119F00
ref: 14

DRUM,RR SPROCKET MOUNTING

€ 140.00

15

6473327A00
ref: 15

RETAINER,RR HUB BEARING

€ 18.50

16

0926225073
ref: 16

BEARING(25X62X17)

€ 21.50

17

0928535001
ref: 17

SEAL,OIL(35X62X8)

€ 9.00

18

6465127A01
ref: 18

ABSORBER,RR HUB SHOCK

€ 6.00

19-1

6451132C00
ref: 19-1

SPROCKET,RR(NT:45-525)

€ 95.50

19-2

6451133C01
ref: 19-2

SPROCKET,RR(NT:44-525)

€ 83.50

20

0911910043
ref: 20

BOLT(10X47)

€ 4.50

21

0916010506
ref: 21
09160-10039

WASHER (10.5X22X2.3)

€ 2.50

22

0831931107
ref: 22

NUT

€ 3.00

23

6511017G00
ref: 23

TIRE,RR(160/60 ZR17M/C 69W)

€ 190.00

23

6511017G00
ref: 23

TIRE,RR(160/60 ZR17M/C 69W)

€ 190.00

24

4313024A00
ref: 24

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

25-1

5541100A00
ref: 25-1

BALANCER,WHEEL (10G)

€ 6.50

25-2

5541200A01
ref: 25-2
55412-17G00

BALANCER,WHEEL (20G)

€ 7.00

25-3

5541117G00
ref: 25-3

BALANCER,WHEEL(10G)

€ 6.50

25-4

5541217G00
ref: 25-4

BALANCER,WHEEL(20G)

€ 7.00

25-5

5541317G00
ref: 25-5

BALANCER,WHEEL(30G)

€ 7.50
