STEERING STEM (SV650K3/K4/K5/K6/K7/AK7)

SV650S 2004 (K4) USA (E03)

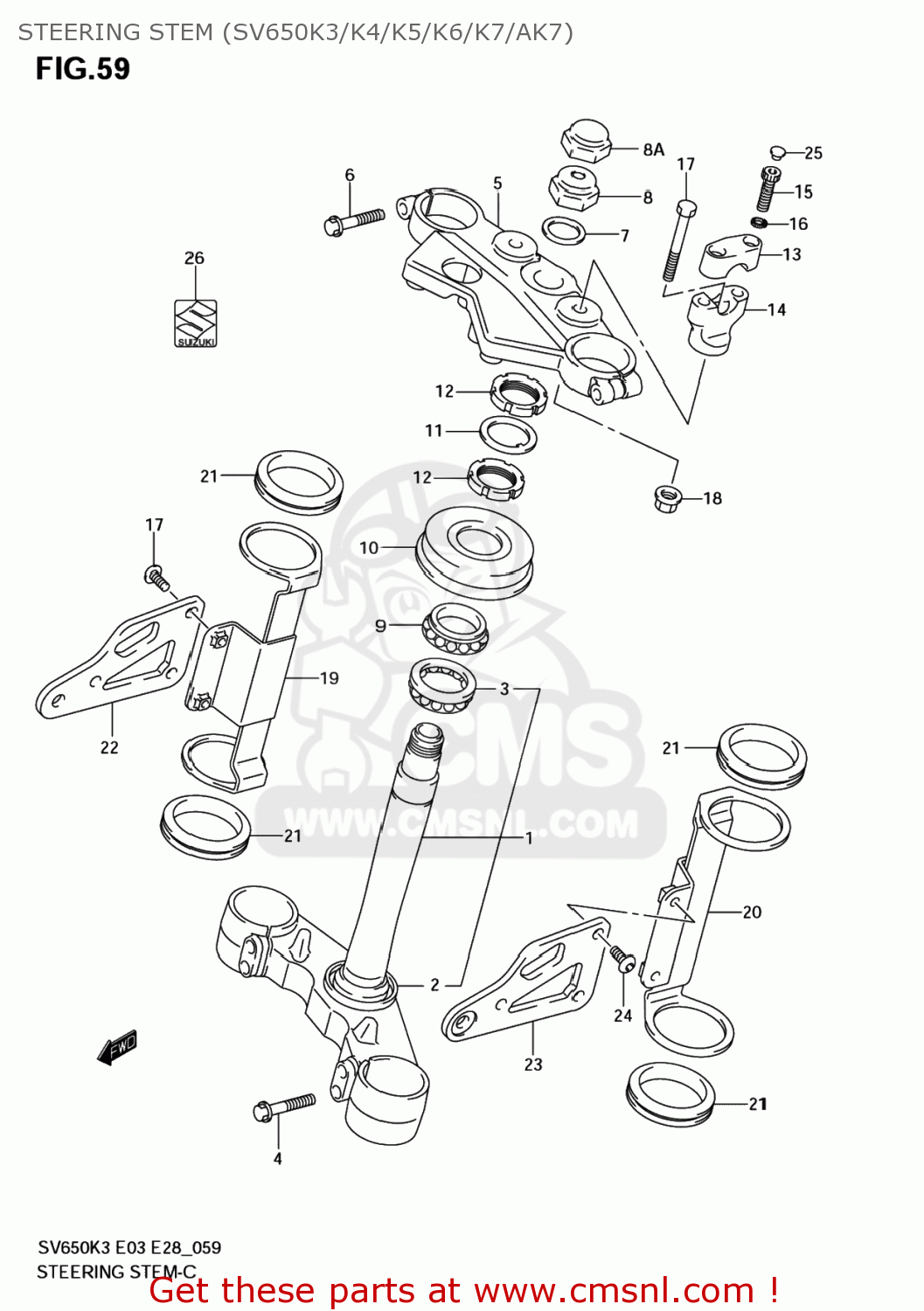

Steering stem (sv650k3/k4/k5/k6/k7/ak7) diagram SV650S 2004 (K4) USA (E03)

STEERING STEM (SV650K3/K4/K5/K6/K7/AK7) SV650S 2004 (K4) USA (E03)

STEERING STEM (SV650K3/K4/K5/K6/K7/AK7) SV650S 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5141017G00
ref: 1-1

STEM,STEERING

€ 657.50

1-2

5141017G80
ref: 1-2

STEM,STEERING

€ 432.50

2

5164412C00
ref: 2

SEAL,STEERING LWR

€ 5.50

3

0926730010
ref: 3

BEARING(30X55X17)

€ 46.50

4

5132803FK0
ref: 4

BOLT(8X40)

€ 4.50

5

5131117G00
ref: 5

HEAD,STEERING STEM

€ 291.50

6

5132803FK0
ref: 6

BOLT(8X40)

€ 4.50

7

5135442E00
ref: 7

WASHER

€ 14.50

8

5135317G00
ref: 8

NUT

€ 59.00

8A

5135327G00
ref: 8A

NUT

€ 22.00

9

0926730010
ref: 9

BEARING(30X55X17)

€ 46.50

10

5164333E00
ref: 10

SEAL,STEERING UPR DUST

€ 12.50

11

5164133E00
ref: 11

WASHER,STEERING STEM

€ 3.00

12

5163133E00
ref: 12

NUT,STEERING STEM

€ 12.00

13

5621117G0013L
ref: 13

HOLDER,HANDLE

€ 27.00

14

5622117G0013L
ref: 14

HOLDER,HANDLE UNDER

€ 51.50

15

0713008257
ref: 15

BOLT

€ 3.50

16

0916408015
ref: 16

WASHER

€ 3.00

17

5632117G00
ref: 17

BOLT

€ 8.50

18

0831931107
ref: 18

NUT

€ 3.00

19-1

5153017G00
ref: 19-1

BRACKET,HEADLAMP HOUSING,R

€ 211.00

19-2

5153017G10
ref: 19-2
51530-17G00

BRACKET, HEADLAMP HOUSING, R

€ 211.00

20-1

5154017G00
ref: 20-1

BRACKET,HEADLAMP HOUSING,L

€ 399.50

20-2

5154017G10
ref: 20-2
51540-17G00

BRACKET, HEADLAMP HOUSING, L

€ 399.50

21

5155338C00
ref: 21

DAMPER,HEADLAMP HSG BRACKET

€ 8.50

22

5185116G00
ref: 22

STAY,HEADLAMP HOUSING,R

€ 56.00

23

5186116G00
ref: 23

STAY,HEADLAMP HOUSING,L

€ 56.00

24-1

0913906030
ref: 24-1

SCREW(6X16)

€ 3.50

24-2

0913906028
ref: 24-2

SCREW(6X20)

€ 3.50

25

0925006011
ref: 25

CAP(OD:11)

€ 2.50

26

6828135F00
ref: 26

EMBLEM,S

€ 13.00
