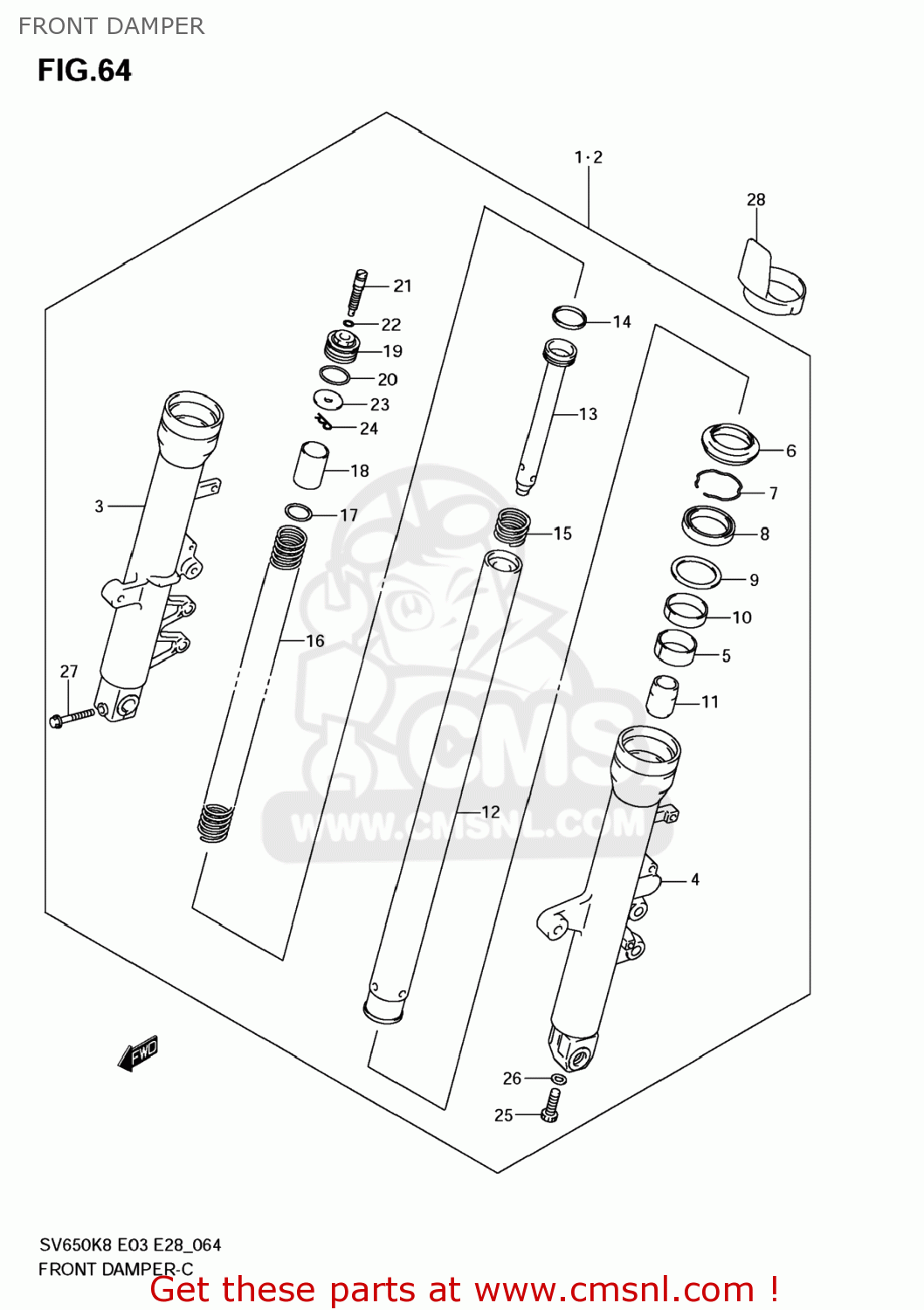

FRONT DAMPER

ref

part #

description

quantity

1-1

5110317GA0
ref: 1-1
51103-17G00

DAMPER ASSY,FR FORK,R

€ 477.50

1-1

5110317GA0
ref: 1-1
51103-17G00

DAMPER ASSY,FR FORK,R

€ 477.50

1-2

5110317G00
ref: 1-2

DAMPER ASSY,FR FORK,R

€ 477.50

1-2

5110317G00
ref: 1-2

DAMPER ASSY,FR FORK,R

€ 477.50

1-3

5110317GB0
ref: 1-3

DAMPER ASSY,FR FORK,R

€ 600.50

1-3

5110317GB0
ref: 1-3

DAMPER ASSY,FR FORK,R

€ 600.50

1-4

5110317G80
ref: 1-4

DAMPER ASSY,FR FORK,R

€ 622.00

1-4

5110317G80
ref: 1-4

DAMPER ASSY,FR FORK,R

€ 622.00

1-5

5110317G90
ref: 1-5
51103-17G80

DAMPER ASSY, FRONT FORK RH

€ 622.00

1-5

5110317G90
ref: 1-5
51103-17G80

DAMPER ASSY, FRONT FORK RH

€ 622.00

1-6

5110317GC0
ref: 1-6

DAMPER ASSY,FR FORK,R

€ 427.50

1-6

5110317GC0
ref: 1-6

DAMPER ASSY,FR FORK,R

€ 427.50

1-7

5110317G50
ref: 1-7

DAMPER ASSY,FR FORK,R

€ 651.50

1-7

5110317G50
ref: 1-7

DAMPER ASSY,FR FORK,R

€ 651.50

2-1

5110417GA0
ref: 2-1
51104-17G00

DAMPER ASSY,FR FORK,L

€ 651.50

2-1

5110417GA0
ref: 2-1
51104-17G00

DAMPER ASSY,FR FORK,L

€ 651.50

2-2

5110417G00
ref: 2-2

DAMPER ASSY,FR FORK,L

€ 651.50

2-2

5110417G00
ref: 2-2

DAMPER ASSY,FR FORK,L

€ 651.50

2-3

5110417GB0
ref: 2-3

DAMPER ASSY,FR FORK,L

€ 600.50

2-3

5110417GB0
ref: 2-3

DAMPER ASSY,FR FORK,L

€ 600.50

2-4

5110417G80
ref: 2-4

DAMPER ASSY,FR FORK,L

€ 606.50

2-4

5110417G80
ref: 2-4

DAMPER ASSY,FR FORK,L

€ 606.50

2-5

5110417G90
ref: 2-5
51104-17G80

DAMPER ASSY,FR FORK,L

€ 606.50

2-5

5110417G90
ref: 2-5
51104-17G80

DAMPER ASSY,FR FORK,L

€ 606.50

2-6

5110417GC0
ref: 2-6

DAMPER ASSY,FR FORK,L

€ 428.00

2-6

5110417GC0
ref: 2-6

DAMPER ASSY,FR FORK,L

€ 428.00

2-7

5110417G50
ref: 2-7

DAMPER ASSY,FR FORK,L

€ 651.50

2-7

5110417G50
ref: 2-7

DAMPER ASSY,FR FORK,L

€ 651.50

3-1

5113017GA0
ref: 3-1

TUBE,OUTER,R

€ 514.50

3-2

5113017G00
ref: 3-2

TUBE,OUTER,R

€ 596.50

3-3

5113017GB0
ref: 3-3

TUBE,OUTER,R

€ 316.50

3-4

5113017G80
ref: 3-4

TUBE,OUTER,R

€ 374.00

4-1

5114017GA0
ref: 4-1

TUBE,OUTER,L

€ 514.50

4-2

5114017G00
ref: 4-2

TUBE,OUTER,L

€ 548.50

4-3

5114017GB0
ref: 4-3

TUBE,OUTER,L

€ 316.50

4-4

5114017G80
ref: 4-4

TUBE,OUTER,L

€ 583.50

5

5112142E00
ref: 5

BUSH,SLIDE

€ 15.50

6-1

5157147D50
ref: 6-1

SEAL,DUST

€ 18.00

6-2

5117301H00
ref: 6-2

SEAL,DUST

€ 9.50

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8-1

5115308D00
ref: 8-1

SEAL,OIL

€ 15.50

8-2

5115301H00
ref: 8-2

SEAL,OIL

€ 19.00

9-1

5116838B00
ref: 9-1

SPACER,SEAL

€ 5.00

9-2

5116817G80
ref: 9-2

SPACER,SEAL

€ 5.50

10

5115217G00
ref: 10

BUSH,GUIDE

€ 15.50

11

5119548B31
ref: 11

PIECE,OIL LOCK

€ 19.00

12-1

5111017G00
ref: 12-1

TUBE,INNER

€ 436.50

12-2

5111017G80
ref: 12-2

TUBE,INNER

€ 432.50

13-1

5114617G00
ref: 13-1

CYLINDER

€ 96.00

13-2

5114617G20
ref: 13-2

CYLINDER

€ 57.50

13-3

5114617G80
ref: 13-3

CYLINDER

€ 96.50

14

5119612C00
ref: 14

RING,PISTON

€ 5.50

15-1

5117712C00
ref: 15-1

SPRING,REBOUND

€ 8.00

15-2

5117717G50
ref: 15-2

SPRING,REBOUND

€ 6.50

16-1

5117117G00
ref: 16-1

SPRING,FR

€ 89.50

16-2

5117117G20
ref: 16-2

SPRING,FR

€ 79.50

16-3

5117117G80
ref: 16-3

SPRING,FR

€ 51.00

17

5119219C00
ref: 17

JOINT,SPRING

€ 3.50

18-1

5117612C10
ref: 18-1

COLLAR,SPRING(32.9X34X50)

€ 11.50

18-2

5117617G50
ref: 18-2

COLLAR,SPRING

€ 12.00

19

5118912C00
ref: 19

BOLT,FORK

€ 38.50

20

5111712C00
ref: 20

O RING

€ 3.00

21

5118517G00
ref: 21

ADJUSTER BOLT,SPRING

€ 25.50

22

0928009005
ref: 22

O RING(D:1.9,ID:8.6)

€ 4.00

23

5118612C00
ref: 23

SEAT,SPRING

€ 3.50

24

5118832B00
ref: 24

PIN,SEAT SPRING

€ 3.50

25

5114748130
ref: 25

BOLT(8X27)

€ 3.50

26

5114836011
ref: 26

GASKET (NAS)

€ 4.00

27

5132803FK0
ref: 27

BOLT(8X40)

€ 4.50

28

5120132F00
ref: 28

PROTECTOR

€ 17.00

all assemblies
