HEADLAMP (SV650SK8/SK9/SAK8/SAK9)
SV650SF 2008 (K8) USA (E03)

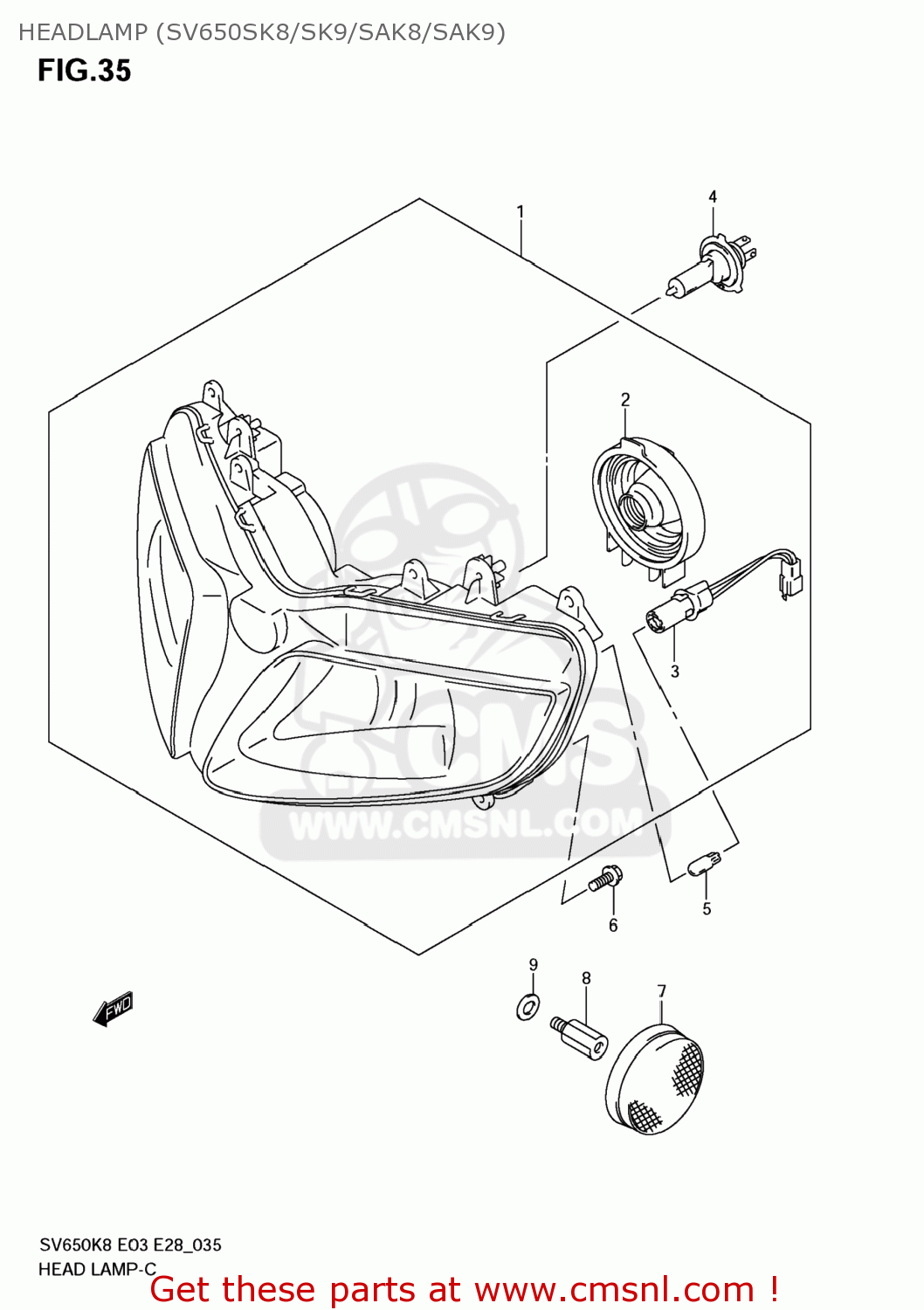

Headlamp (sv650sk8/sk9/sak8/sak9) diagram SV650SF 2008 (K8) USA (E03)
HEADLAMP (SV650SK8/SK9/SAK8/SAK9) SV650SF 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510016G30999
ref: 1
HEADLAMP ASSY
€ 563.00
2
3512577A00
ref: 2
COVER,SOCKET
€ 12.00
3
3611835F50
ref: 3
CORD ASSY
€ 20.50
4
0947112182
ref: 4
BULB(12V60/55W,H4)
€ 8.00
5
0947112216
ref: 5
BULB(12V5W)
€ 5.00
6
021620516B
ref: 6
SCREW
€ 1.50
7
3595014A10
ref: 7
35950-14A11
REFLECTOR,REFLEX
€ 11.00
8
0911905023
ref: 8
BOLT(5X10)
€ 7.50
9
083220105B
ref: 9
WASHER
€ 2.50
