STEERING STEM (SV650K8/AK8/K9/AK9)
SV650SF 2008 (K8) USA (E03)

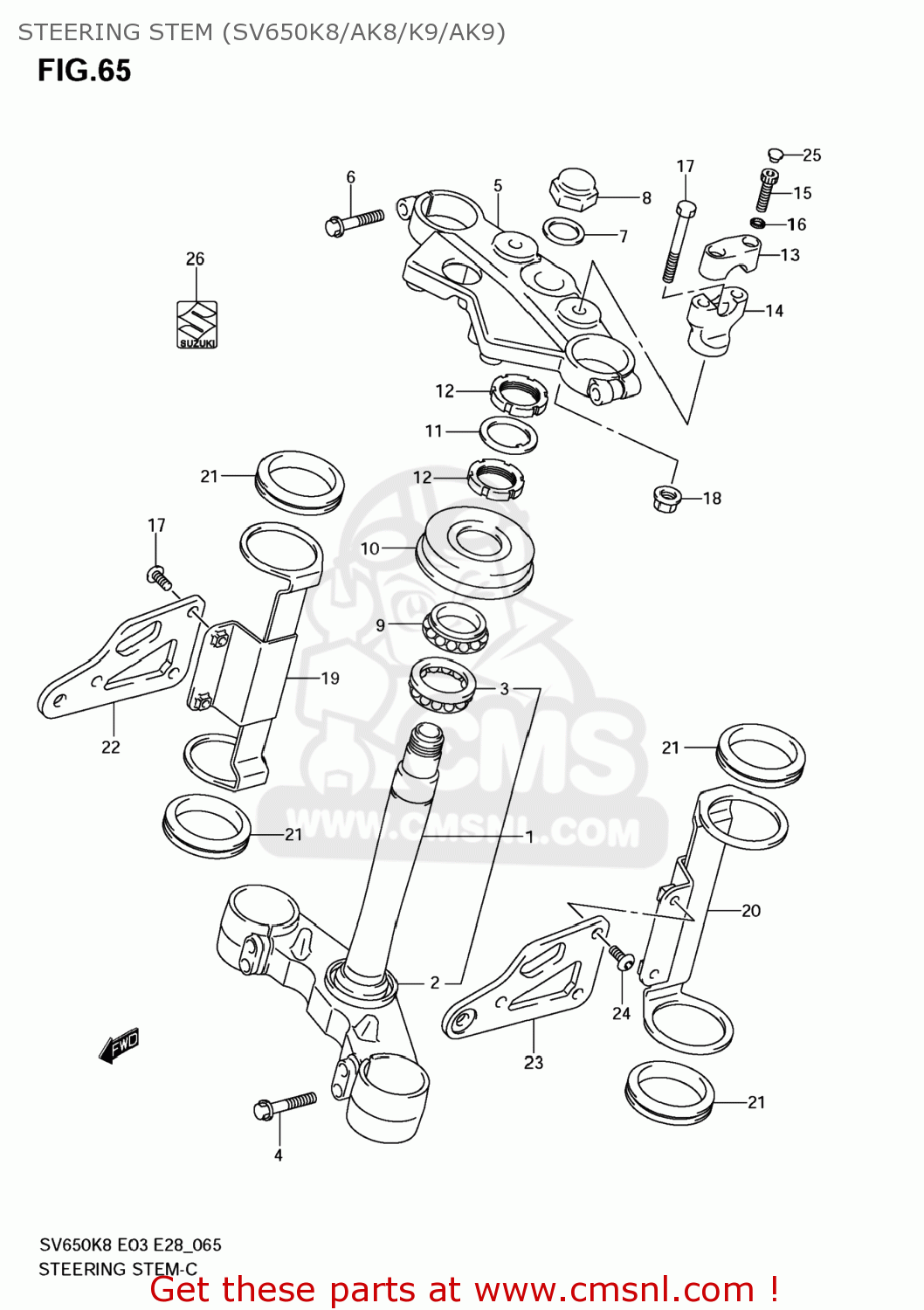

Steering stem (sv650k8/ak8/k9/ak9) diagram SV650SF 2008 (K8) USA (E03)
STEERING STEM (SV650K8/AK8/K9/AK9) SV650SF 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5141017G00
ref: 1-1
STEM,STEERING
€ 657.50
1-2
5141017G80
ref: 1-2
STEM,STEERING
€ 432.50
2
5164412C00
ref: 2
SEAL,STEERING LWR
€ 5.50
3
0926730010
ref: 3
BEARING(30X55X17)
€ 46.50
4
5132803FK0
ref: 4
BOLT(8X40)
€ 4.50
5
5131117G00
ref: 5
HEAD,STEERING STEM
€ 291.50
6
5132803FK0
ref: 6
BOLT(8X40)
€ 4.50
7
5135442E00
ref: 7
WASHER
€ 14.50
8
5135327G00
ref: 8
NUT
€ 22.00
9
0926730010
ref: 9
BEARING(30X55X17)
€ 46.50
10
5164333E00
ref: 10
SEAL,STEERING UPR DUST
€ 12.50
11
5164133E00
ref: 11
WASHER,STEERING STEM
€ 3.00
12
5163133E00
ref: 12
NUT,STEERING STEM
€ 12.00
13
5621117G0013L
ref: 13
HOLDER,HANDLE
€ 27.00
14
5622117G0013L
ref: 14
HOLDER,HANDLE UNDER
€ 51.50
15
0713008257
ref: 15
BOLT
€ 3.50
16
0916408015
ref: 16
WASHER
€ 3.00
17
5632117G00
ref: 17
BOLT
€ 8.50
18
0831931107
ref: 18
NUT
€ 3.00
19
5153017G00
ref: 19
BRACKET,HEADLAMP HOUSING,R
€ 211.00
20
5154017G10
ref: 20
51540-17G00
BRACKET, HEADLAMP HOUSING, L
€ 399.50
21
5155338C00
ref: 21
DAMPER,HEADLAMP HSG BRACKET
€ 8.50
22
5185116G00
ref: 22
STAY,HEADLAMP HOUSING,R
€ 56.00
23
5186116G00
ref: 23
STAY,HEADLAMP HOUSING,L
€ 56.00
24
0913906028
ref: 24
SCREW(6X20)
€ 3.50
25
0925006011
ref: 25
CAP(OD:11)
€ 2.50
26
6828135F00
ref: 26
EMBLEM,S
€ 13.00
