AIR CLEANER
TC125 1973 (K) USA (E03)

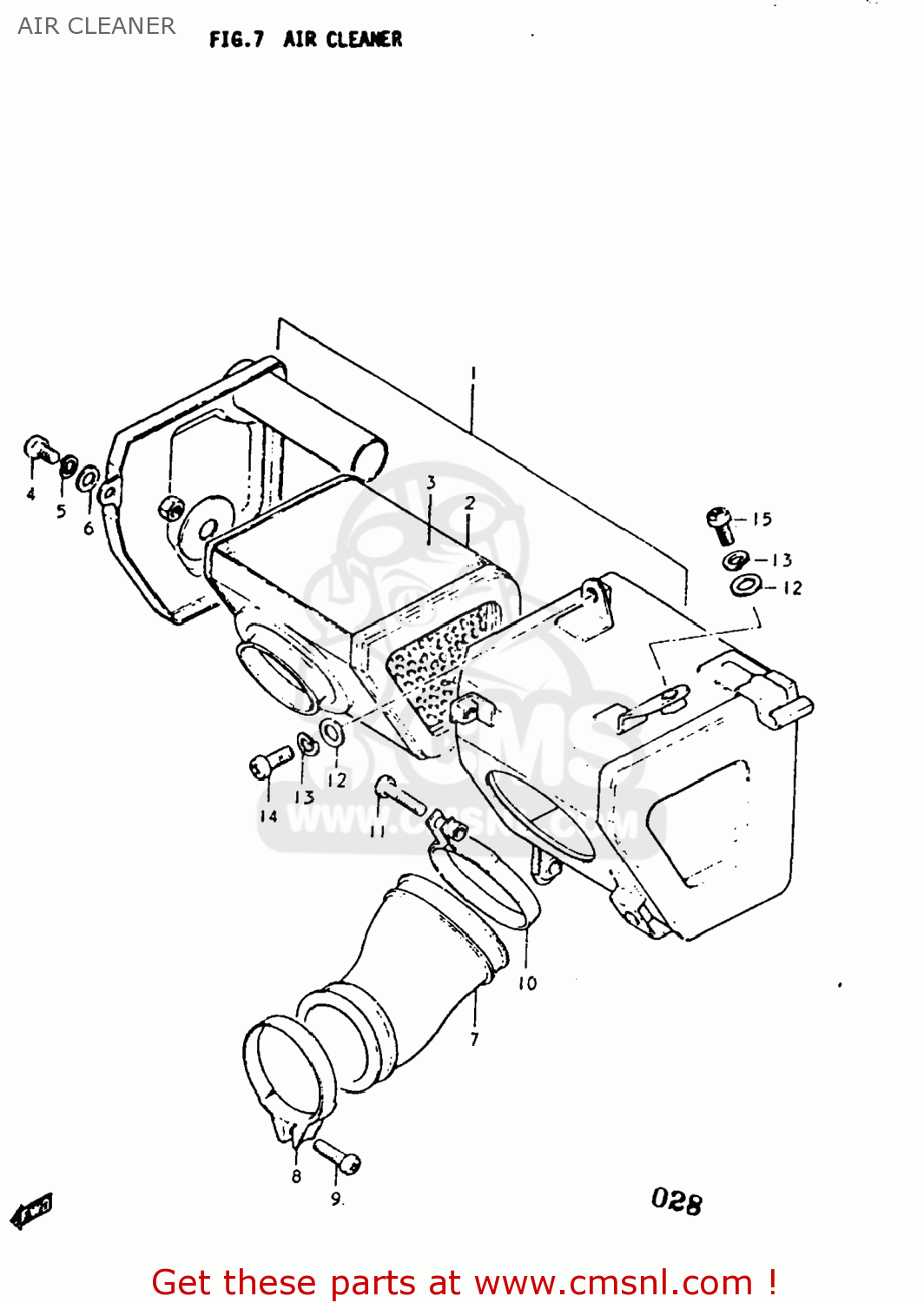

Air cleaner diagram TC125 1973 (K) USA (E03)
AIR CLEANER TC125 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370028110
ref: 1-1
CLEANER ASSEMBLY,AIR
€ 57.00
1-2
1370028211
ref: 1-2
CLEANER ASSEMBLY,AIR
€ 165.00
1-3
1370028630
ref: 1-3
CLEANER ASSEMBLY,AIR
€ 58.50
1-4
1370028631
ref: 1-4
CLEANER ASSEMBLY,AIR
€ 58.50
2-1
1378028210
ref: 2-1
13780-28211
FILTER,AIR CLEANER
€ 0.00
2-2
1378028211
ref: 2-2
FILTER,AIR CLEANER
€ 0.00
2-3
1378028630
ref: 2-3
FILTER,AIR CLEANER
€ 48.50
3
1378128210
ref: 3
FILTER
€ 48.50
4
0211104087
ref: 4
02112-04087
SCREW
€ 1.50
5
0832121048
ref: 5
08321-0104A
LOCK WASHER
€ 2.00
6
0832221048
ref: 6
08322-01047
WASHER
€ 2.00
7-1
1388128001
ref: 7-1
13881-28002
TUBE,AIR CLEANER OUTLET
€ 17.00
7-2
1388128002
ref: 7-2
HOSE,CARBURETOR AIR INLET
€ 17.00
8-1
0940250306
ref: 8-1
CLAMP
€ 6.00
8-2
0940252306
ref: 8-2
CLAMP
€ 6.00
9
0211104208
ref: 9
02112-0420A
SCREW
€ 1.00
10
0940258306
ref: 10
CLAMP
€ 5.00
11
0211104208
ref: 11
02112-0420A
SCREW
€ 1.00
12
0832221068
ref: 12
08322-01067
WASHER
€ 2.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
0211206128
ref: 14
02112-06127
SCREW 6X12
€ 2.00
15
0211206168
ref: 15
02112-06167
SCREW
€ 2.50
