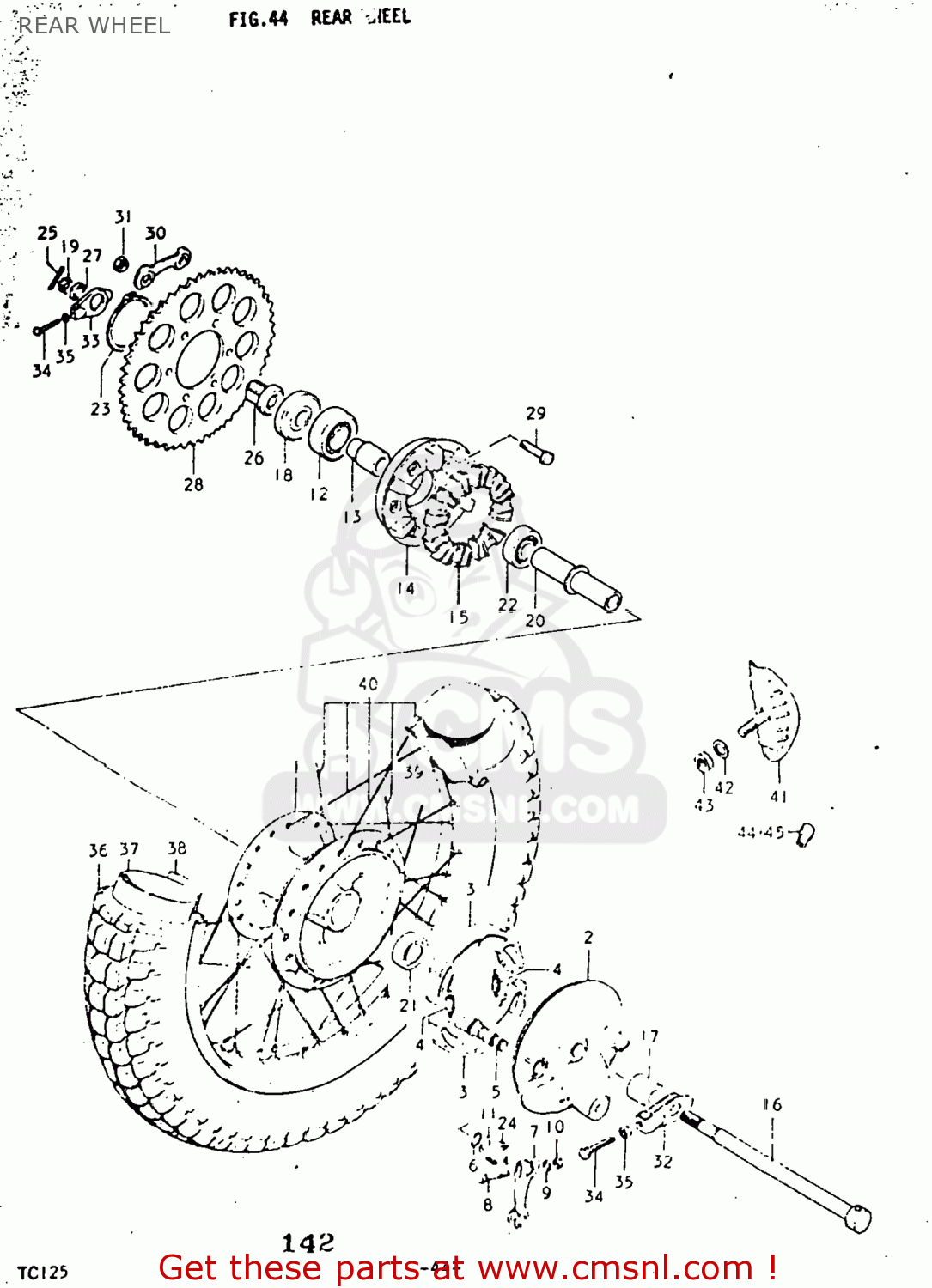

REAR WHEEL

ref

part #

description

quantity

1-1

6411028002
ref: 1-1

HUB,REAR

€ 90.00

1-2

6411028400
ref: 1-2

HUB,REAR

€ 151.50

1-3

6411028610
ref: 1-3

HUB,REAR

€ 118.50

2-1

6421028003
ref: 2-1
64210-28004

PANEL,REAR HUB

€ 106.50

2-1

6421028003
ref: 2-1
64210-28004

PANEL,REAR HUB

€ 106.50

2-2

6421028004
ref: 2-2

PANEL,REAR HUB

€ 106.50

2-3

6421028305
ref: 2-3
64210-28004

PANEL,REAR HUB

€ 106.50

3-1

5441007001
ref: 3-1
54401-07810

SHOE,BRAKE

€ 35.00

3-2

5441007002
ref: 3-2
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444120000
ref: 5-1

CAM,FRONT BRAKE

€ 19.50

5-2

5444107001
ref: 5-2

CAM,FRONT BRAKE

€ 19.50

5-3

5444101002
ref: 5-3

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7-1

6445128000
ref: 7-1

LEVER,REAR BRAKE CAM

€ 14.50

7-2

6445128600
ref: 7-2

LEVER,REAR BRAKE CAM

€ 15.50

8

0910006050
ref: 8
09100-06150

BOLT

€ 1.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831111068
ref: 10
08310-00067

NUT

€ 2.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

12

0812362040
ref: 12
08123-62047

BEARING

€ 17.00

13

6473328400
ref: 13

SPACER,REAR HUB BEARING

€ 9.00

14-1

6461028001
ref: 14-1

DRUM,REAR SPROCKET MOUNT

€ 65.00

14-2

6461128400
ref: 14-2

DRUM,REAR SPROCKET MOUNT

€ 34.50

14-3

6461128600
ref: 14-3

DRUM,REAR SPROCKET MOUNT

€ 28.00

15-1

6465028001
ref: 15-1
64650-28002

CUSHION,REAR DRUM

€ 15.00

15-2

6465028002
ref: 15-2

ABSORBER,RR WHEEL HUB SHOCK

€ 15.00

15-3

6465028400
ref: 15-3

ABSORBER,RR WHEEL HUB SHOCK

€ 17.00

16-1

6471128000
ref: 16-1

AXLE,REAR

€ 78.50

16-2

6471128001
ref: 16-2
64711-4130V

AXLE,REAR

€ 78.50

17-1

0918015010
ref: 17-1
09180-15038

SPACER

€ 7.00

17-2

0918015038
ref: 17-2

SPACER(15.2X22X26)

€ 7.00

18-1

6475028000
ref: 18-1

SPACER,RR AXLE,L

€ 11.50

18-2

6475028400
ref: 18-2

SPACER,REAR AXLE,RIGHT

€ 9.50

19

0831431128
ref: 19
08314-3112A

NUT 12MM

€ 2.00

20-1

6473028000
ref: 20-1

SPACER,REAR HUB BEARING

€ 9.00

20-2

0918015039
ref: 20-2

SPACER

€ 3.50

21

0814362020
ref: 21
08143-62027

BEARING

€ 12.50

21

0814362020
ref: 21
08143-62027

BEARING

€ 12.50

22

0812363020
ref: 22
08123-63027

BEARING

€ 19.00

23

0833111558
ref: 23
08331-31558

CIRCLIP

€ 4.00

24

0944827003
ref: 24

SPRING

€ 7.00

25

0411130308
ref: 25
04111-3030A

COTTER PIN

€ 1.50

26-1

6479128001
ref: 26-1

SPACER,CHAIN ADJUSTER,L

€ 12.00

26-2

6479128000
ref: 26-2

SPACER,REAR AXLE

€ 12.00

27-1

0914018001
ref: 27-1
09140-18501

NUT

€ 3.00

27-2

0914018005
ref: 27-2
09140-18501

NUT

€ 3.00

28

6451129720
ref: 28

SPROCKET,REAR

€ 56.50

29-1

0910508001
ref: 29-1

BOLT(8X33.5)

€ 2.50

29-2

0910508006
ref: 29-2

BOLT(8X32)

€ 2.00

29-3

0910508007
ref: 29-3

BOLT(8X30)

€ 2.50

30

0916908013
ref: 30

WASHER

€ 2.50

31

0831211088
ref: 31
08310-00087

NUT

€ 2.00

32-1

6141028002A
ref: 32-1
61410-28004

ADJUSTER,CHAIN

€ 8.00

32-2

6141028001A
ref: 32-2

ADJUSTER,CHAIN

€ 8.00

33-1

6142028002
ref: 33-1
61420-28003

ADJUSTER,CHAIN

€ 11.00

33-2

6142028001
ref: 33-2

ADJUSTER,CHAIN

€ 11.00

34-1

0910008099
ref: 34-1
09100-08146

BOLT

€ 2.50

34-2

0910006065
ref: 34-2

BOLT(6X38)

€ 2.50

35-1

0831211088
ref: 35-1
08310-00087

NUT

€ 2.00

35-2

0831111068
ref: 35-2
08310-00067

NUT

€ 2.50

36-1

6510028211
ref: 36-1
65100-28600

TIRE

€ 32.50

36-2

6510028610
ref: 36-2

TIRE

€ 0.00

37

6520018010
ref: 37
65200-44AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

38-1

5526111010
ref: 38-1

PROTECTOR,INNER TUBE

€ 3.50

38-2

6526128030
ref: 38-2

PROTECTOR,WHEEL,INNER

€ 1.50

38-3

6526111010
ref: 38-3
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

39-1

6531129601
ref: 39-1

RIM,REAR WHEEL

€ 46.00

39-2

6531129602
ref: 39-2

RIM,REAR WHEEL

€ 38.50

39-3

6531129022
ref: 39-3

RIM,REAR WHEEL

€ 105.50

40-1

6530028807
ref: 40-1

SPOKE SET,REAR

€ 37.00

40-2

6530028880
ref: 40-2
65320-28021

SPOKE SET,REAR

€ 31.50

41

6527028600
ref: 41

STOPPER,BEAD

€ 26.50

42

0832211088
ref: 42
08322-01087

WASHER

€ 2.00

43

0831211088
ref: 43
08310-00087

NUT

€ 2.00

44-1

5541211000
ref: 44-1
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

44-2

5541237000
ref: 44-2

BALANCER,WHEEL

€ 8.00

45-1

5541128000
ref: 45-1

BALANCER, WHEEL L; 50G BOLD-TIPPED TYPE

€ 0.00

45-2

5541130000
ref: 45-2

BALANCER,WHEEL (50G)

€ 4.50

all assemblies
