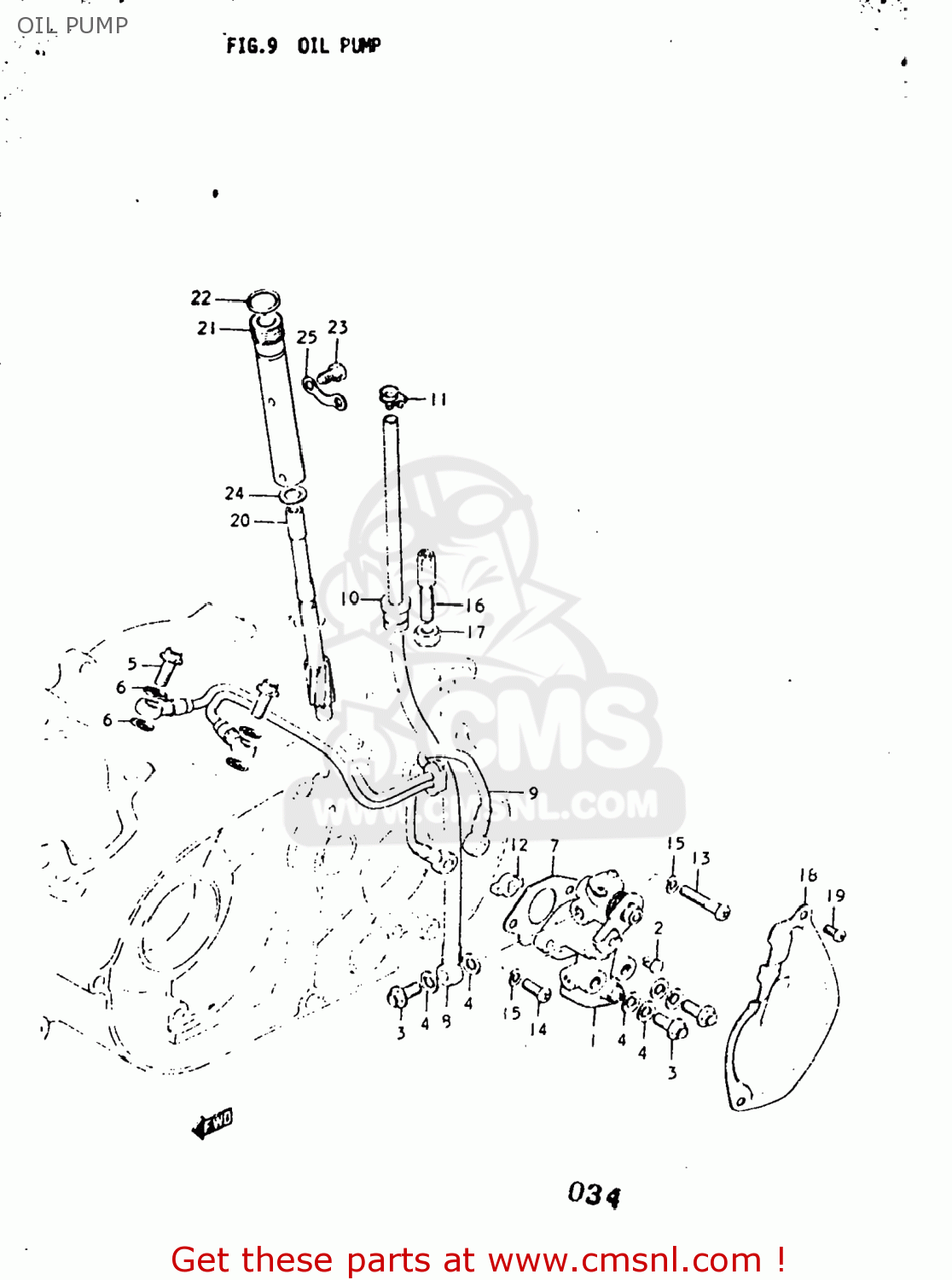

OIL PUMP

ref

part #

description

quantity

1-1

1610028830
ref: 1-1

PUMP ASSEMBLY,OIL

€ 223.00

1-2

1610028010
ref: 1-2

PUMP ASSEMBLY,OIL

€ 223.00

2-1

1629203110
ref: 2-1
16292-03112

TERMINAL,CABLE

€ 3.50

2-2

1629203111
ref: 2-2
16292-03112

TERMINAL,CABLE

€ 3.50

3

0936006003
ref: 3

UNION BOLT

€ 5.00

4-1

0916806002
ref: 4-1
09168-06004

GASKET (NAS)

€ 1.50

4-2

0916806004
ref: 4-2

GASKET(6.2X11X1).2 (NAS)

€ 1.50

5

0936006003
ref: 5

UNION BOLT

€ 5.00

6-1

0916806003
ref: 6-1

GASKET

€ 1.50

6-2

0916806004
ref: 6-2

GASKET(6.2X11X1).2 (NAS)

€ 1.50

7

1673103100
ref: 7
16731-03101

GASKET,OIL PUMP (MCA)

€ 2.50

8

1681035030
ref: 8
16810-07520

HOSE,OIL NO.1

€ 17.50

9

1682028030
ref: 9

HOSE,OIL NO.2

€ 35.00

10

0930509002
ref: 10

BUSHING

€ 1.50

11

0940010301
ref: 11
09400-10302

CLAMP

€ 9.50

12

1639105030
ref: 12
16391-05031

PIECE,OIL PUMP DRIVE

€ 2.50

13

0211205308
ref: 13
02112-0530A

SCREW

€ 1.50

14

0211205168
ref: 14
02112-05167

SCREW

€ 2.50

15

0832121058
ref: 15
08321-0105A

LOCK WASHER

€ 2.00

16

0911908014
ref: 16

BOLT

€ 3.50

17

0831211088
ref: 17
08310-00087

NUT

€ 2.00

18-1

1138525001
ref: 18-1

CAP

€ 5.50

18-2

1138027300
ref: 18-2

CAP,OIL PUMP INSPECTION

€ 5.50

19

0211206108
ref: 19
02112-06107

SCREW

€ 1.50

20

2643128001
ref: 20

GEAR,TACHOMETER DRIVEN

€ 20.50

21

2644128001
ref: 21
26441-28002

SLEEVE,TACHOMETER DRIVE

€ 17.00

22

0928010001
ref: 22

O RING(D:1.3,ID:9.6)

€ 2.00

23

0913506009
ref: 23

BOLT(6X12)

€ 2.00

24

0916008003
ref: 24

WASHER(8X13.7X1)

€ 2.00

25

0940407704
ref: 25

CLAMP

€ 6.50

25

0940407704
ref: 25

CLAMP

€ 6.50

all assemblies
