TC125 1976 (A) USA (E03)

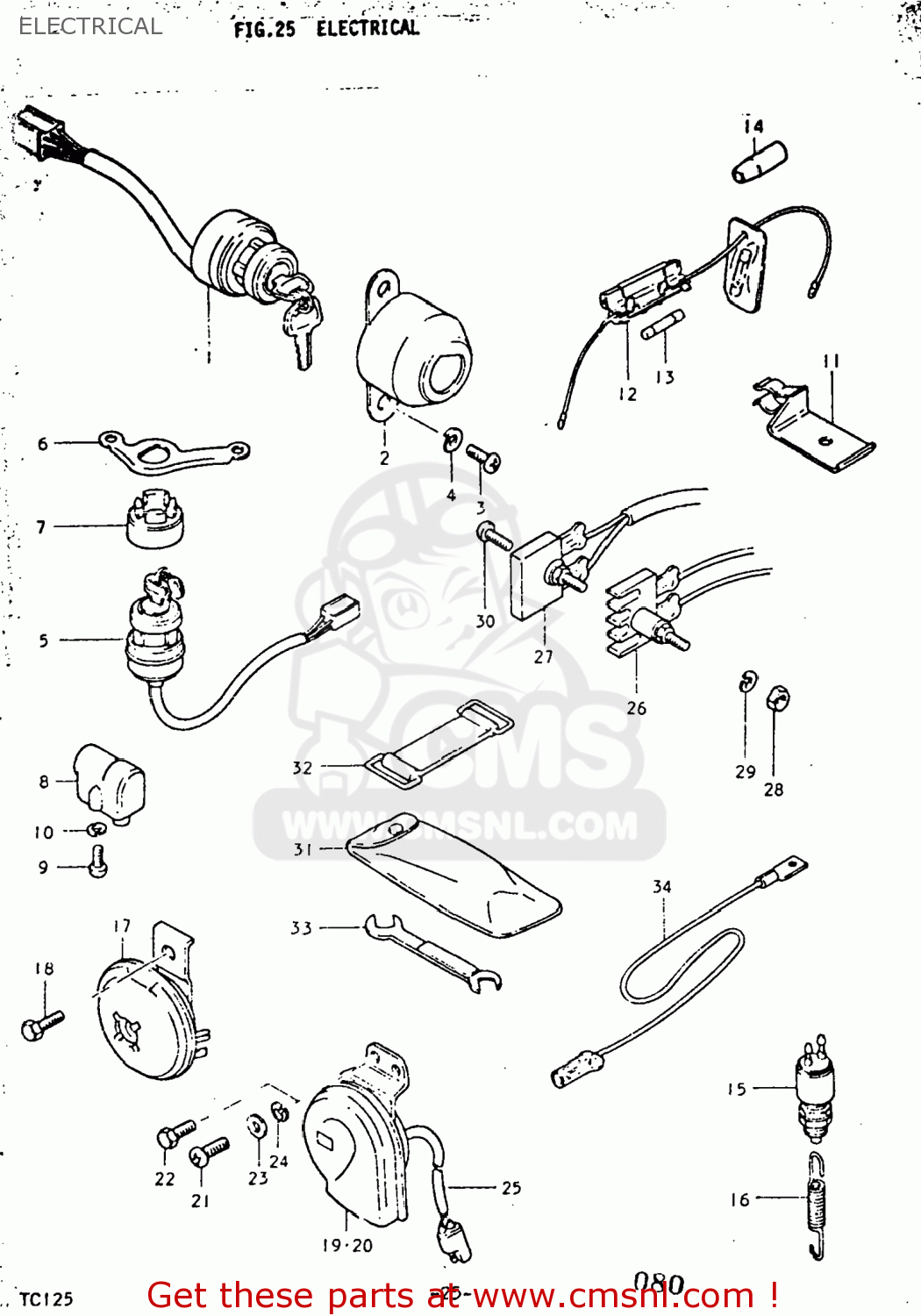

Electrical diagram TC125 1976 (A) USA (E03)
ELECTRICAL TC125 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3711028611
ref: 1
37110-28613
SWITCH ASSEMBLY,IGNITION
€ 44.50
2
3711530000
ref: 2
37115-16401
BRACKET,IGNITION SWITCH
€ 6.50
3
0211206128
ref: 3
02112-06127
SCREW 6X12
€ 2.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5-1
3711025312
ref: 5-1
SWITCH ASSEMBLY,IGNITION
€ 60.00
5-2
3711025314
ref: 5-2
37110-25319
SWITCH ASSEMBLY,IGNITION
€ 60.00
5-3
3711025315
ref: 5-3
SWITCH ASSEMBLY,IGNITION
€ 60.00
5-4
3711025318
ref: 5-4
37110-25319
SWITCH ASSEMBLY,IGNITION
€ 60.00
5-4
3711025318
ref: 5-4
37110-25319
SWITCH ASSEMBLY,IGNITION
€ 60.00
6
3711536000
ref: 6
37115-36001
BRACKET,IGNITION SWITCH
€ 17.00
7-1
3712836000
ref: 7-1
IGN SWITCH COVE
€ 4.50
7-2
3712836001
ref: 7-2
IGN SWITCH COVE
€ 4.50
8
5000025837
ref: 8
51910-25311
LOCK ASSY,STEERING
€ 22.50
9
0211105127
ref: 9
02112-05127
Screw
€ 2.50
10
0832121058
ref: 10
08321-0105A
LOCK WASHER
€ 2.00
11
3679128400
ref: 11
HOLDER,FUSE CASE
€ 0.00
12
3674015010
ref: 12
36740-15011
BOX ASSEMBLY,FUSE
€ 11.00
13
0948115001
ref: 13
FUSE(15A)
€ 3.00
14
0928710001
ref: 14
SEAL,DUST(10X17X45)
€ 4.00
15
3761053011
ref: 15
SWITCH ASSY,BRAKE LAMP
€ 34.50
16-1
0944306020
ref: 16-1
09443-06012
SPRING
€ 3.00
16-2
0944306012
ref: 16-2
SPRING
€ 3.00
17
3850028031
ref: 17
38500-28032
HORN ASSEMBLY
€ 25.00
18
0112208128
ref: 18
01500-08127
BOLT
€ 2.50
19
3850025330
ref: 19
HORN ASSEMBLY
€ 45.50
20-1
3850025331
ref: 20-1
HORN ASSEMBLY
€ 45.50
20-2
3850025332
ref: 20-2
HORN ASSY
€ 45.50
21
0211206128
ref: 21
02112-06127
SCREW 6X12
€ 2.00
22
0111206108
ref: 22
01500-06107
BOLT
€ 2.00
23
0832221068
ref: 23
08322-01067
WASHER
€ 2.00
24
0832121068
ref: 24
08321-01067
LOCK WASHER
€ 2.50
25
3687025030
ref: 25
WIRE
€ 10.50
26-1
3280016420
ref: 26-1
32800-16421
RECTIFIER ASSEMBLY
€ 24.00
26-2
3280016421
ref: 26-2
RECTIFIER ASSEMBLY
€ 24.00
27-1
3280019061
ref: 27-1
32800-16A00
RECTIFIER ASSEMBLY
€ 10.50
27-2
3280019062
ref: 27-2
32800-16A00
RECTIFIER ASSEMBLY
€ 10.50
28
0831111058
ref: 28
08310-00057
NUT
€ 2.50
29
0832121058
ref: 29
08321-0105A
LOCK WASHER
€ 2.00
30
0211205208
ref: 30
02112-05207
SCREW 5X20
€ 3.00
31
0980000108
ref: 31
09800-21028
TOOL SET
€ 43.50
32
0946200017
ref: 32
BAND
€ 13.50
33
0993020111
ref: 33
WRENCH, CONTACT POINT
€ 22.50
34
3681127610
ref: 34
WIRE,WIRING HARNESS LEAD
