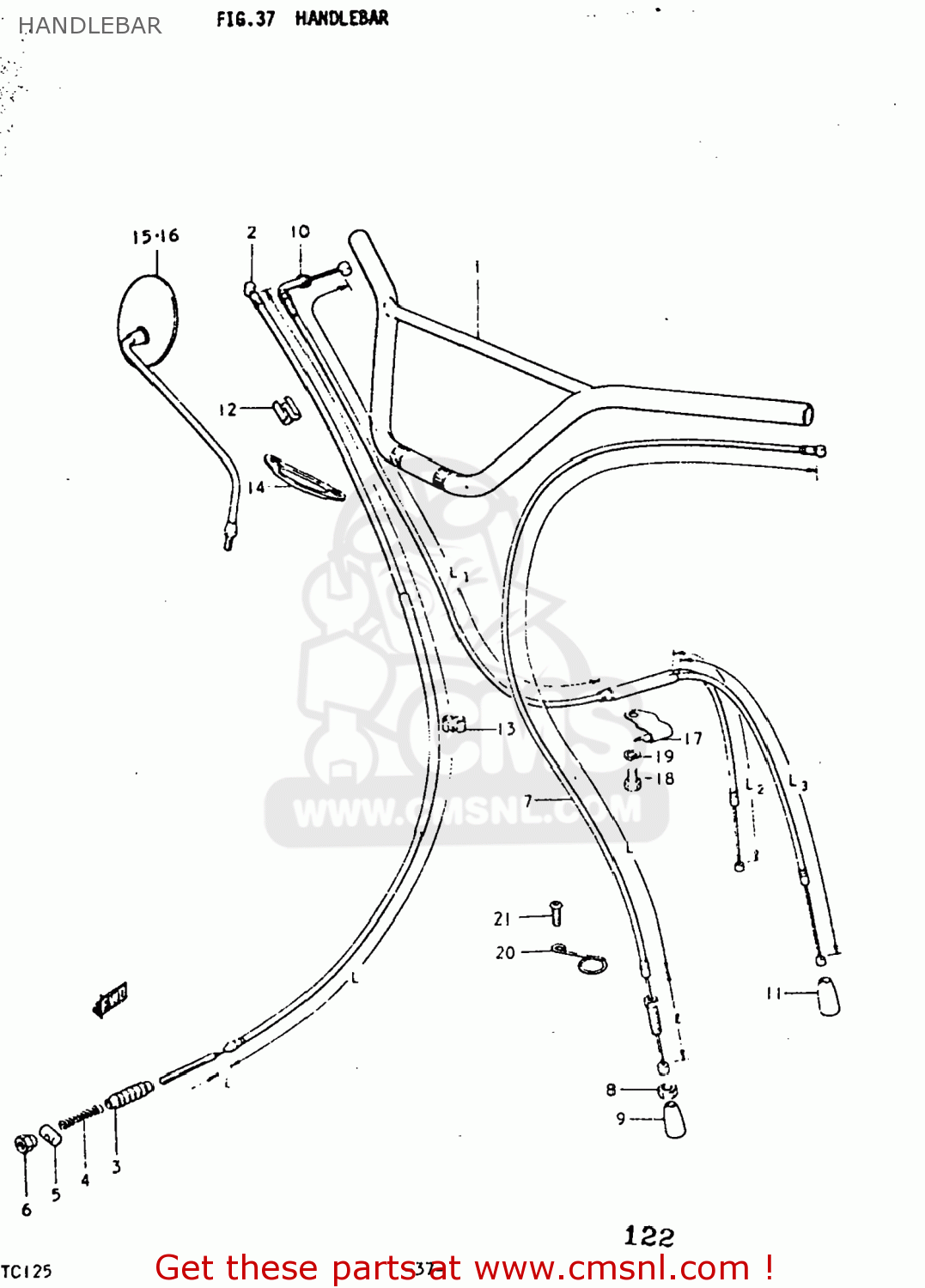

HANDLEBAR

ref

part #

description

quantity

1

5611028001
ref: 1

HANDLEBAR

€ 201.50

2

5810028100
ref: 2
58100-28090

CABLE ASSEMBLY,FRONT BRAKE

€ 23.50

3

0928707001
ref: 3

SEAL,DUST(7X16X75)

€ 2.00

4

0944006003
ref: 4

SPRING

€ 2.00

5

0920910001
ref: 5

PIN,10X19

€ 2.00

6

0915005101
ref: 6

NUT

€ 3.00

7-1

5820028000
ref: 7-1

CABLE ASSY,CLUTCH

€ 22.50

7-2

5820028301
ref: 7-2

CABLE ASSY,CLUTCH

€ 26.50

8

0831211088
ref: 8
08310-00087

NUT

€ 2.00

9

0928707002
ref: 9

SEAL,DUST(7X18X30)

€ 2.50

10

5830028000
ref: 10
58300-28002

CABLE ASSEMBLY,THROTTLE

€ 35.00

11

0928707002
ref: 11

SEAL,DUST(7X18X30)

€ 2.50

12

0940800001
ref: 12

CLIP

€ 2.50

13

0940800002
ref: 13

CLIP

€ 2.00

14

5862128000
ref: 14

GUIDE,CABLE

€ 5.00

15-1

5650019010
ref: 15-1
56500-19012

MIRROR ASSEMBLY,RIGHT

€ 194.00

15-2

5650031011
ref: 15-2
56500-31013

MIRROR ASSEMBLY,RIGHT

€ 65.50

16-1

5660019010
ref: 16-1
56600-19012

MIRROR ASSEMBLY,LEFT

€ 174.00

16-2

5660031011
ref: 16-2
56600-31013

MIRROR ASSEMBLY,LEFT

€ 65.50

17

0940309308
ref: 17

CLAMP

€ 1.00

18

0111206108
ref: 18
01500-06107

BOLT

€ 2.00

19

0832121068
ref: 19
08321-01067

LOCK WASHER

€ 2.50

20

0940313401
ref: 20

CLIP

€ 3.50

21

0211206128
ref: 21
02112-06127

SCREW 6X12

€ 2.00

all assemblies
