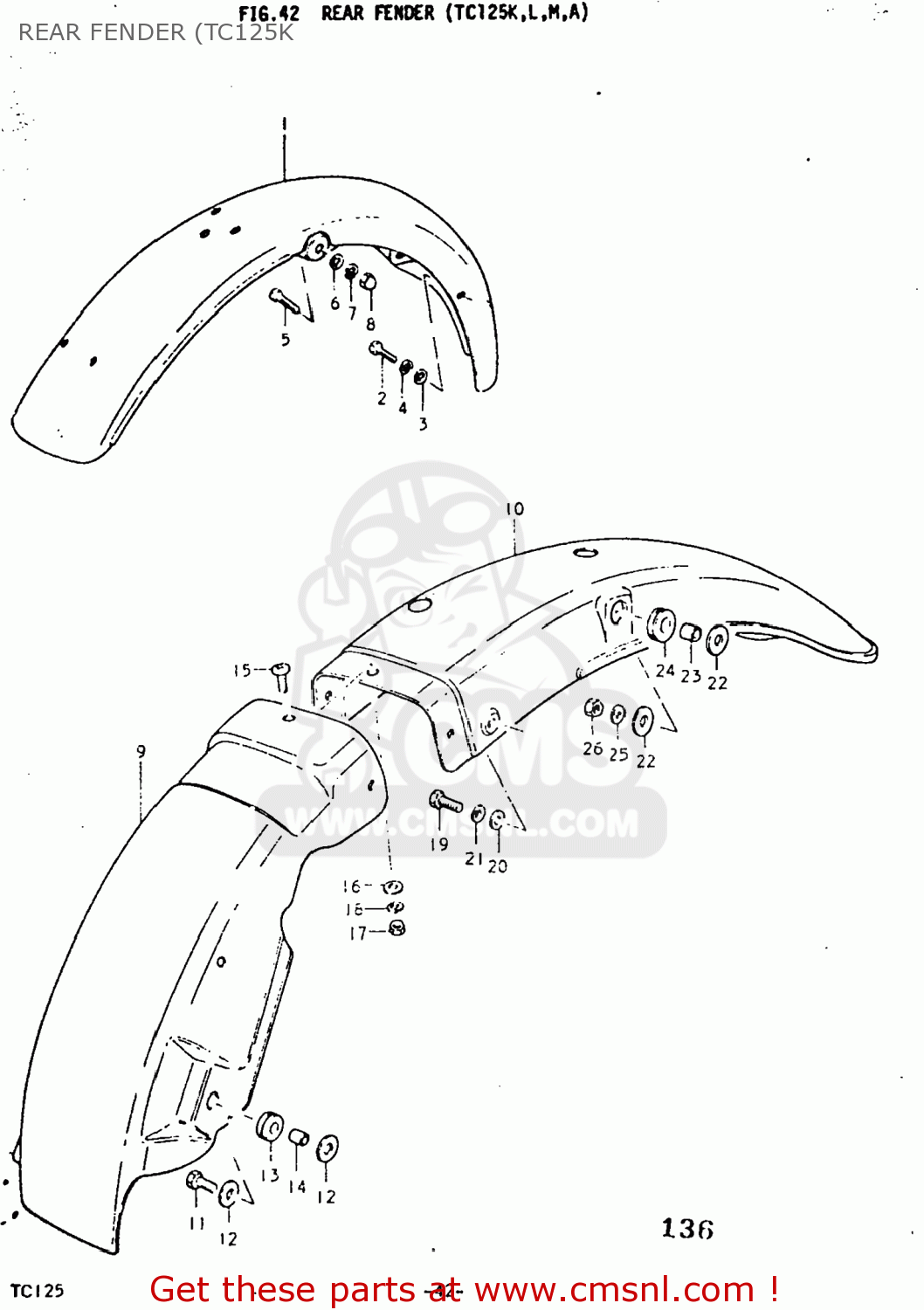

REAR FENDER (TC125K

ref

part #

description

quantity

1

6311028100
ref: 1

FENDER,REAR

€ 76.00

2

0910008085
ref: 2
09100-08284

BOLT

€ 3.50

3

0832221088
ref: 3
08322-01087

WASHER

€ 2.00

4

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5

0910008085
ref: 5
09100-08284

BOLT

€ 3.50

6

0832221088
ref: 6
08322-01087

WASHER

€ 2.00

7

0832121088
ref: 7
08321-01087

LOCK WASHER

€ 2.00

8

0831311087
ref: 8
08313-10087

NUT

€ 2.50

9-1

6311228000
ref: 9-1

FENDER,REAR

€ 39.50

9-2

6311028600
ref: 9-2
63112-28002

FENDER,REAR

€ 39.50

10-1

6311028502
ref: 10-1

BODY,REAR FENDER,REAR

€ 249.00

10-2

6311028401737
ref: 10-2

FENDER,REAR

€ 77.50

11

0111206168
ref: 11
01500-06167

BOLT

€ 3.00

12

0916006027
ref: 12
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

13

0932008007
ref: 13
09320-08021

CUSHION

€ 4.00

14

0918006038
ref: 14

SPACER(6.1X9X7.5)

€ 2.00

15

0214105127
ref: 15
02142-05127

SCREW

€ 1.50

16

0832211058
ref: 16
08322-01057

WASHER 5MM

€ 2.50

17

0831111058
ref: 17
08310-00057

NUT

€ 2.50

18

0832121058
ref: 18
08321-0105A

LOCK WASHER

€ 2.00

19

0111206128
ref: 19
01500-06127

BOLT

€ 2.00

20

0832221068
ref: 20
08322-01067

WASHER

€ 2.00

21

0832121068
ref: 21
08321-01067

LOCK WASHER

€ 2.50

22

0916010041
ref: 22

WASHER(10.3X25X1.5

€ 4.00

23

0918010026
ref: 23

SPACER

€ 6.00

24

0932012011
ref: 24

CUSHION

€ 3.00

25

0832121108
ref: 25
08321-01107

LOCK WASHER

€ 2.00

26

0831232108
ref: 26
08310-00107

NUT

€ 2.50
