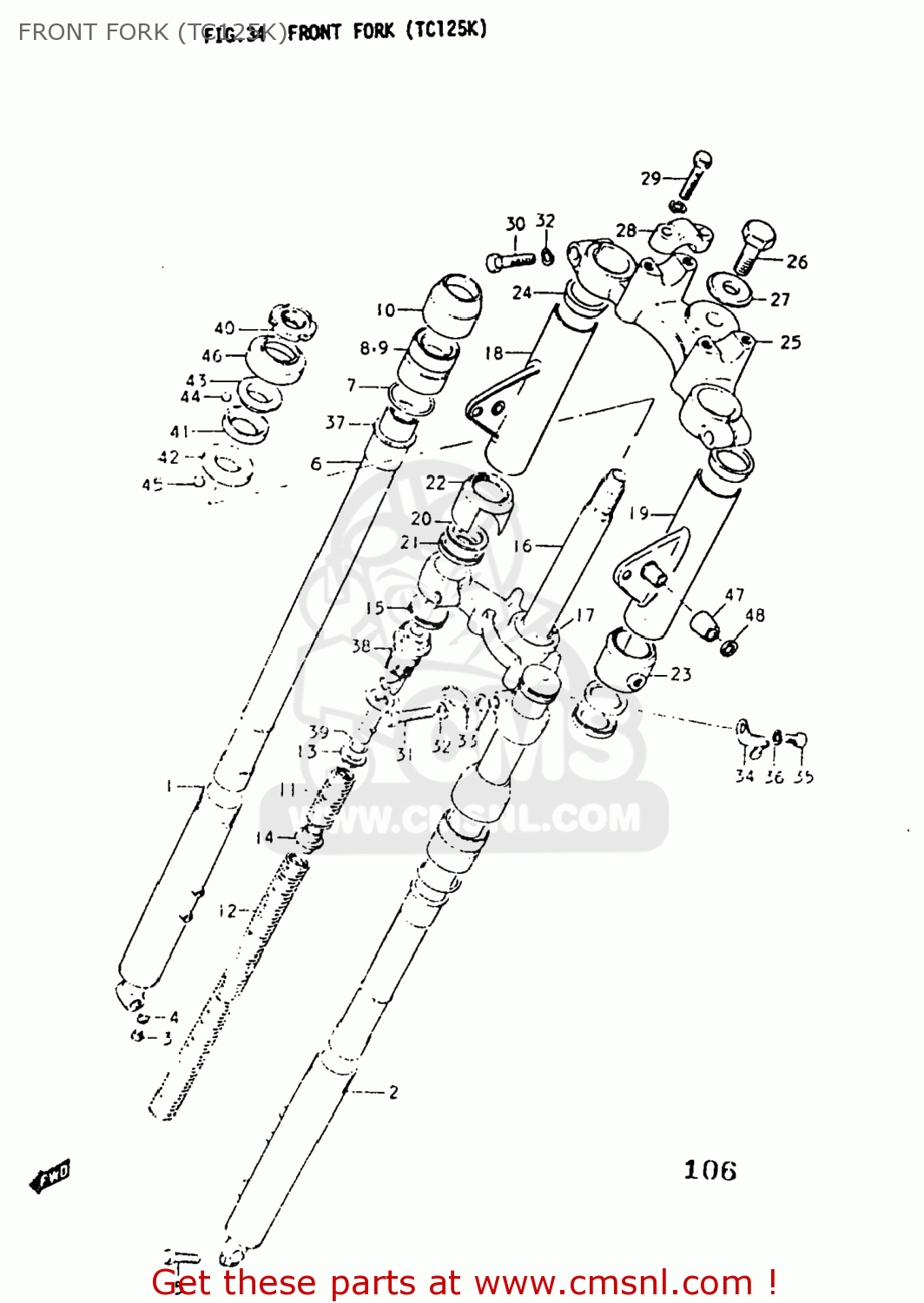

FRONT FORK (TC125K)

ref

part #

description

quantity

0

5110029620019
ref: 0

DAMPER SET

€ 0.00

1

5113028600
ref: 1

TUBE,OUTER,RIGHT

€ 59.00

2

5114028600
ref: 2

TUBE,OUTER,LEFT

€ 59.00

3

0211104087
ref: 3
02112-04087

SCREW

€ 1.50

4

5118303010
ref: 4

GASKET,DRAIN,PLUG (NAS)

€ 3.00

5

0112208258
ref: 5
01500-08257

BOLT

€ 2.50

6

5111028010
ref: 6

TUBE,FORK,INNER

€ 135.50

7

5115407010
ref: 7

O RING,OIL SEAL LWR

€ 7.00

8

5115025011
ref: 8

NUT,FORK OUTER TUBE

€ 19.50

9

5115308011
ref: 9

SEAL,OIL

€ 10.50

10

5117325010
ref: 10

SEAL,DUST

€ 10.00

11

5117129010
ref: 11

SPRING

€ 15.00

12

5118429011
ref: 12

SPRING,FRONT FORK

€ 14.50

13

5117228010
ref: 13

GUIDE,SPRING

€ 0.00

14

5119229011
ref: 14

JOINT,SPRING

€ 4.00

15

5118929010
ref: 15

CAP,FRONT FORK

€ 7.50

16

5141028011
ref: 16
51410-36260

STEM,STEERING

€ 72.50

17

5162133001
ref: 17

RACE,STEERING OUTER LWR

€ 10.00

18

5153029620
ref: 18
51530-29621

BRACKET,HEADLAMP HOUSING

€ 54.00

19

5154029620
ref: 19
51540-29621

BRACKET,HEADLAMP,LEFT

€ 75.50

20

5155307110
ref: 20

CUSHION,HEADLAMP BRACKET

€ 1.50

21

5155828010
ref: 21

GUIDE, COVER

€ 7.50

22

5155428010
ref: 22

CUSHION,HEADLAMP BRACKET

€ 0.00

23

5155728010
ref: 23

NO PRODUCT DESCRIPTION AVAILABLE

€ 5.50

24

5155125010
ref: 24

SEAT,HEADLAMP BRACKET

€ 0.00

25

5131128011019
ref: 25

HEAD,STEERING STEM

€ 65.50

26

5135120010
ref: 26
51351-29400

BOLT,FORK INNER TUBE

€ 25.00

27

5135622011
ref: 27

WASHER

€ 6.00

28

5621112111019
ref: 28

HOLDER,HANDLEBAR

€ 0.00

29

0122108307
ref: 29
01204-08307

BOLT

€ 2.50

30

5145115111
ref: 30

BOLT,FORK INNER TUBE F

€ 2.50

31

5145128012
ref: 31

BOLT,FR FORK LWR(12X33)

€ 11.50

32

0832121108
ref: 32
08321-01107

LOCK WASHER

€ 2.00

33

5145536010
ref: 33

CLIP

€ 6.50

34

5145330011
ref: 34

CLIP

€ 3.50

35

0211206108
ref: 35
02112-06107

SCREW

€ 1.50

36

0832121068
ref: 36
08321-01067

LOCK WASHER

€ 2.50

37

5115225010
ref: 37
51152-25011

BUSHING,GUIDE

€ 6.00

38

5118029010
ref: 38

CAP

€ 41.50

39

5118629620
ref: 39

SEAT,SPRING

€ 0.00

40

5163128000
ref: 40

NUT,STEERING STEM(25X44X10)

€ 12.50

41

5161120001
ref: 41

RACE,STEERING,INNER,UPPER

€ 5.50

42

5161133002
ref: 42

LACE,STEERING INNER LWR

€ 7.00

43

5162128000
ref: 43

RACE,STEERING OUTER UPR

€ 7.00

44

0611108003
ref: 44

BALL

€ 1.50

45

0611108003
ref: 45

BALL

€ 1.50

46

5164325001
ref: 46

DUST SEAL,STEERING UPR

€ 4.50

47

3569828000
ref: 47

COVER,FRONT TURN SIGNAL BRACKET

€ 8.50

48

0832221108
ref: 48
08322-01107

WASHER

€ 2.50
