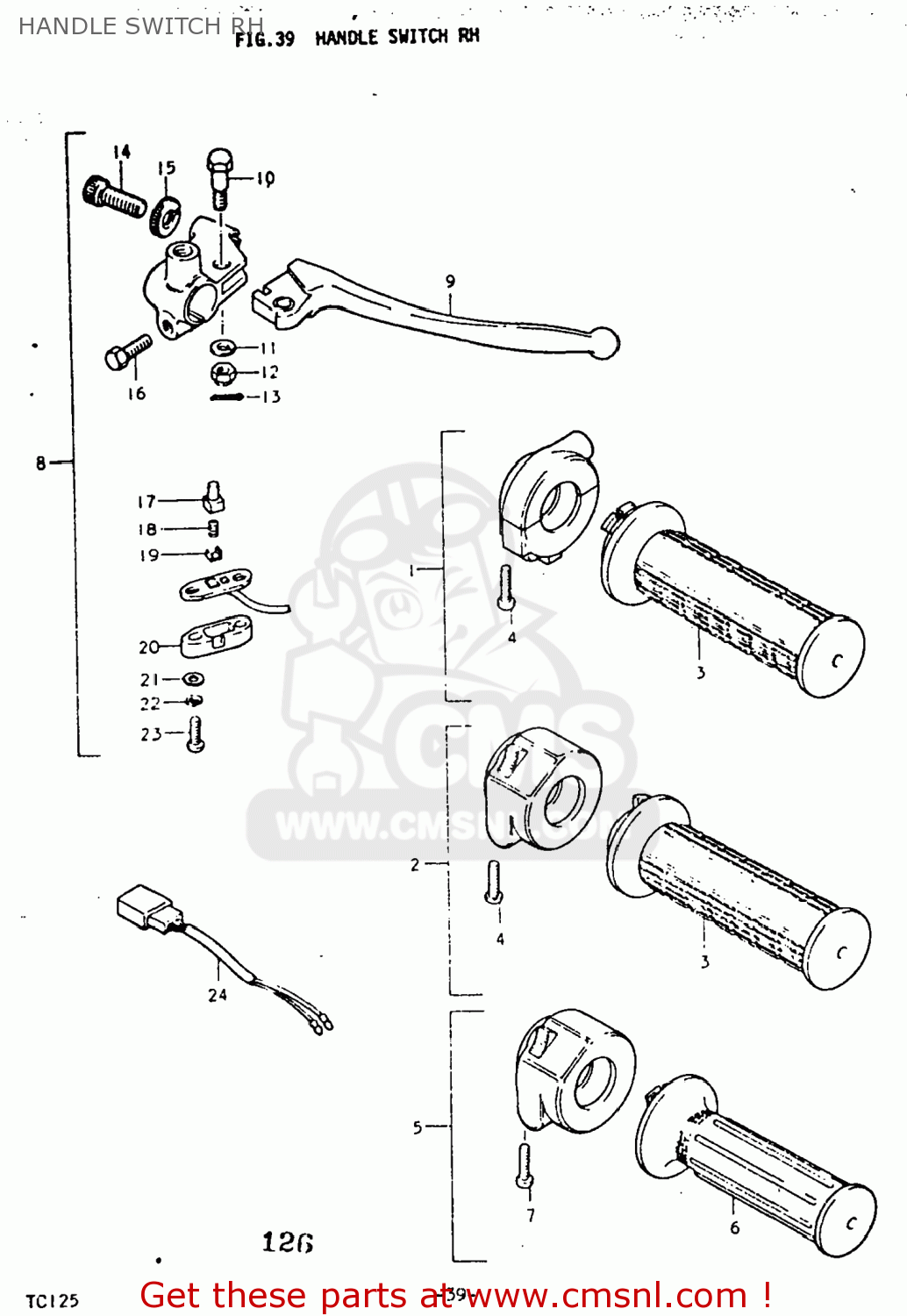

HANDLE SWITCH RH

ref

part #

description

quantity

1

5710028010
ref: 1

GRIP ASSY,THROTTLE

€ 65.50

2

5710032600
ref: 2
57100-39650

GRIP ASSEMBLY,THROTTLE

€ 59.50

3

5711028010
ref: 3

GRIP,THROTTLE

€ 26.50

4

0211105207
ref: 4
02112-05207

SCREW

€ 3.00

5

5710032620
ref: 5

GRIP ASSEMBLY,THROTTLE

€ 59.00

6

5711028630
ref: 6

GRIP,THROTTLE

€ 26.50

7

0211105207
ref: 7
02112-05207

SCREW

€ 3.00

8-1

5730030011
ref: 8-1
57300-30501

LEVER ASSEMBLY,BRAKE

€ 59.00

8-2

5730030701
ref: 8-2
57300-30501

LEVER ASSEMBLY,BRAKE

€ 59.00

8-3

5730028012
ref: 8-3
57300-28013

LEVER/SWITCH ASSEMBLY,BRAKE

€ 48.00

9

5742033010
ref: 9
57420-18602

LEVER ASSEMBLY,ADJUST

€ 37.00

10

5743111010
ref: 10
57431-11013

BOLT,LEVER

€ 6.00

11

0832121068
ref: 11
08321-01067

LOCK WASHER

€ 2.50

12

5743311010
ref: 12

NUT,LEVER FITTNG

€ 5.50

13

0411116158
ref: 13
04111-1620A

COTTER PIN

€ 2.00

14

5744111010
ref: 14

ADJUSTER,CABLE

€ 8.00

15

5744211010
ref: 15

NUT,CABLE ADJUSTER

€ 4.00

16

0111206208
ref: 16
01500-06207

BOLT

€ 2.00

17

5746118600
ref: 17
57465-18601

HOLDER

€ 4.50

18

5746218600
ref: 18
57465-18601

SPRING

€ 4.50

19

5746318600
ref: 19
57465-18601

PLATE

€ 4.50

20

5748133010
ref: 20

COVER,FR BK TERMINAL BASE

€ 19.50

21

0832221038
ref: 21
08322-01037

WASHER

€ 2.00

22

0832121038
ref: 22
09162-03001

LOCK WASHER

€ 1.50

23

0912503105
ref: 23
09125-03105-XC0

SCREW

€ 2.50

24

5732331700
ref: 24

LEAD WIRE

€ 15.50

all assemblies
