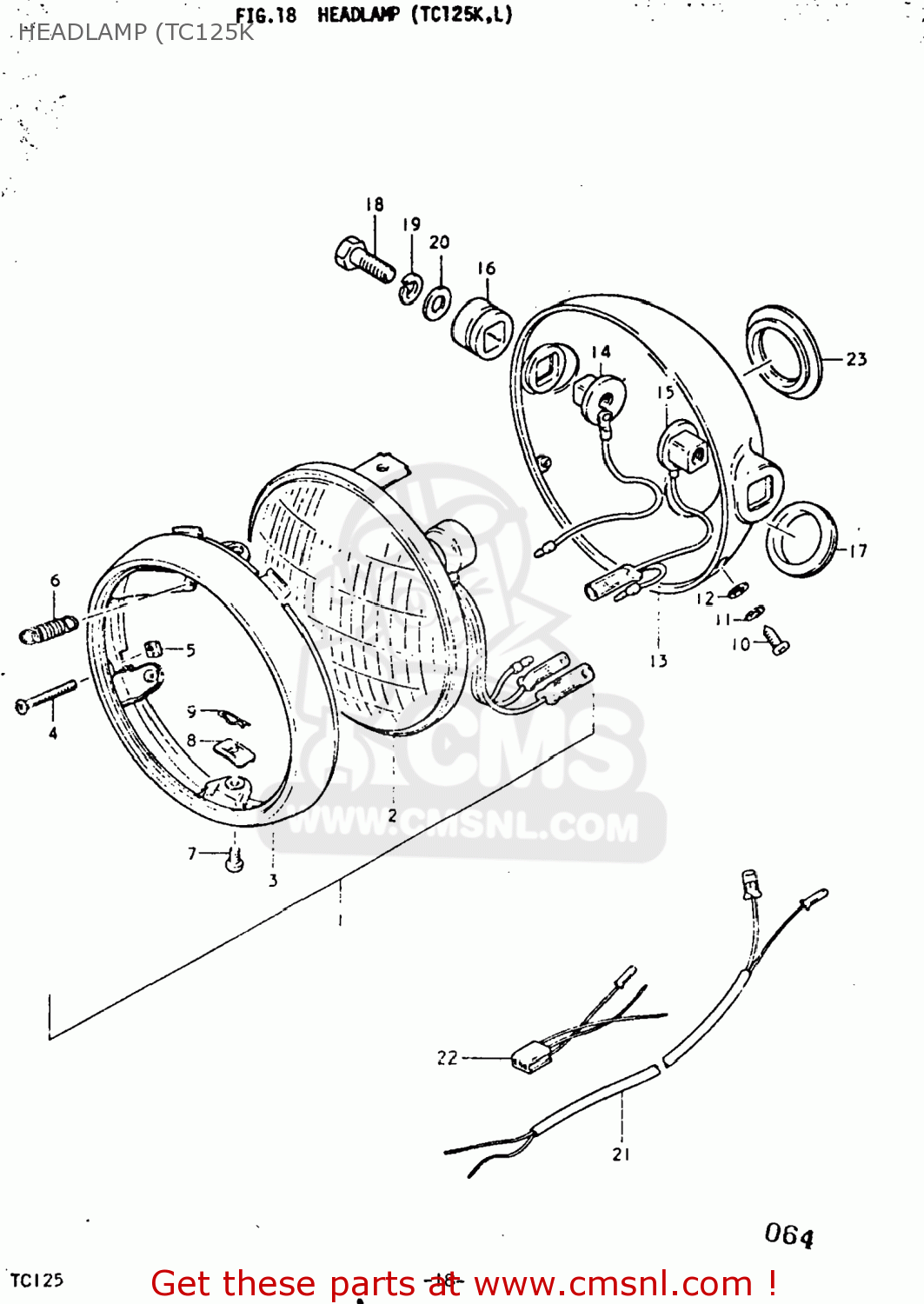

HEADLAMP (TC125K

ref

part #

description

quantity

1

3510028610
ref: 1

HEADLAMP ASSEMBLY

€ 31.50

2

3512128610
ref: 2

LAMP UNIT

€ 32.50

3-1

3511127620
ref: 3-1

RIM,HEADLAMP

€ 42.00

3-2

3511128610
ref: 3-2

RIM,HEADLAMP

€ 42.00

4

3515127620
ref: 4
35151-06020

SCREW,HEADLAMP ADJUST

€ 2.50

5

3515501321
ref: 5

NUT,HEADLAMP ADJUSTER

€ 2.50

6

3515405610
ref: 6

SPRING,HEADLAMP ADJUST

€ 2.00

7

3513619610
ref: 7

SCREW,LENS

€ 0.00

8

3513512610
ref: 8
35155-48510

NUT,ADJUSTING

€ 2.00

9

3513727620
ref: 9

CUSHION,HEADLAMP

€ 2.00

10

0211204128
ref: 10
02112-0412A

SCREW

€ 1.50

12

0832121048
ref: 12
08321-0104A

LOCK WASHER

€ 2.00

12

0832221048
ref: 12
08322-01047

WASHER

€ 2.00

13

5181026600
ref: 13

HOUSING,HEADLAMP

€ 83.50

14-1

5182129000
ref: 14-1

SPACER,HEADLAMP HOUSING

€ 4.50

14-2

5182129001
ref: 14-2
51822-29001

SPACER,HEADLAMP HOUSING

€ 3.00

15-1

5182229000
ref: 15-1

SPACER,HEADLAMP HOUSING

€ 3.00

15-2

5182229001
ref: 15-2

SPACER,HEADLAMP HOUSING

€ 3.00

16-1

5182729000
ref: 16-1

CUSHION,HEADLAMP HOUSING

€ 3.50

16-2

5182729001
ref: 16-2

CUSHION,HEADLAMP HOUSING

€ 3.50

17

5184531031
ref: 17

GROMMET,HEADLAMP HOUSING

€ 4.00

17

5184531031
ref: 17

GROMMET,HEADLAMP HOUSING

€ 4.00

18

0112208258
ref: 18
01500-08257

BOLT

€ 2.50

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0832211088
ref: 20
08322-01087

WASHER

€ 2.00

21

3685226000
ref: 21

WIRE

€ 3.00

22

3685227650
ref: 22

WIRE

€ 3.00

23

0925040001
ref: 23

CAP

€ 2.50

all assemblies
