CDI UNIT - IGNITION COIL

TM125 1975 (M) USA (E03)

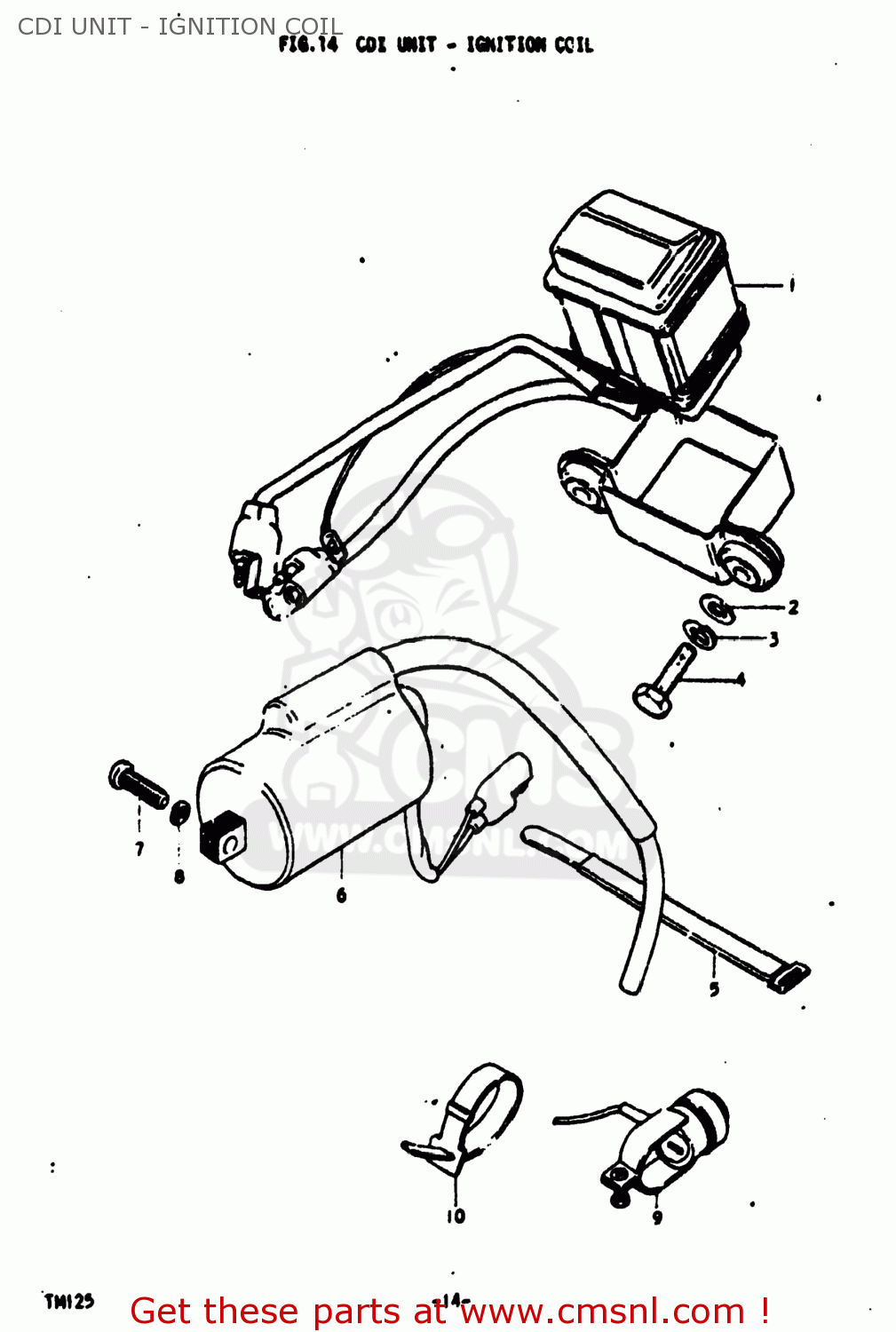

Cdi unit - ignition coil diagram TM125 1975 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3190028300
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 311.50

1-2

3190028600
ref: 1-2

CDI UNIT ASSY

€ 76.50

0832211068
ref: 2
08322-0106B

WASHER 6MM

€ 2.00

0832121068
ref: 3
08321-01067

LOCK WASHER

€ 2.50

0111206208
ref: 4
01500-06207

BOLT

€ 2.00

0940718301
ref: 5

CLAMP

€ 6.00

6-1

3341030020
ref: 6-1
33410-14120

COIL ASSEMBLY,IGNITION

€ 100.00

6-2

3341028600
ref: 6-2

COIL ASSY,IGNITION

€ 82.50

0211105207
ref: 7
02112-05207

SCREW

€ 3.00

0832121058
ref: 8
08321-0105A

LOCK WASHER

€ 2.00

3782016510
ref: 9
37820-14X50

SWITCH ASSEMBLY

€ 24.50

0940712401
ref: 10

CLAMP

€ 3.00
