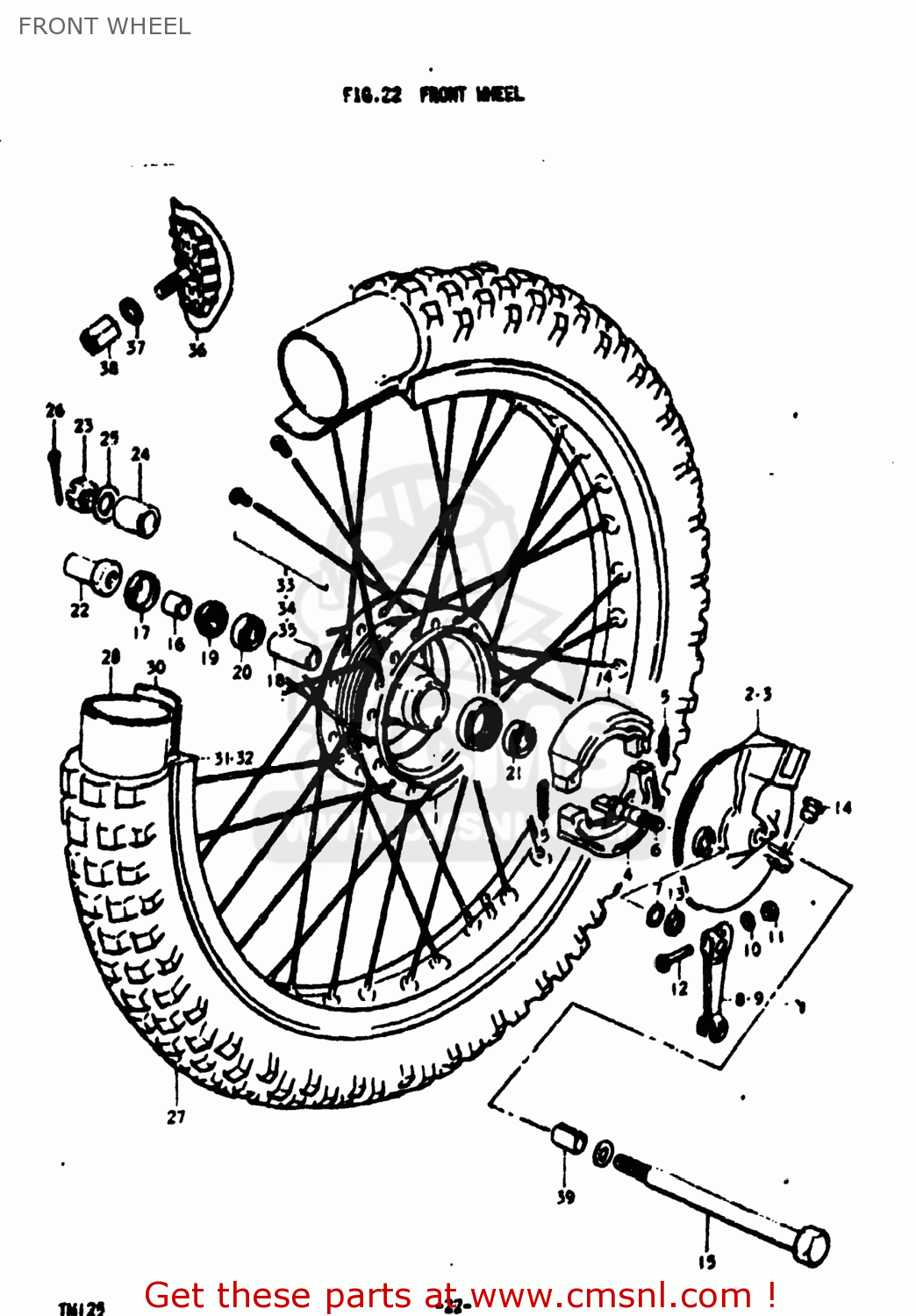

FRONT WHEEL

ref

part #

description

quantity

0-1

5410028830
ref: 0-1

HUB,FRONT

€ 0.00

0-1

5410028830
ref: 0-1

HUB,FRONT

€ 0.00

0-2

5410028831
ref: 0-2

HUB,FRONT

€ 0.00

1

5411028301
ref: 1
54110-28303

HUB,FRONT

€ 90.50

2

5421028300
ref: 2

PANEL,FRONT HUB

€ 40.50

3-1

5421028301
ref: 3-1

PANEL,FRONT HUB

€ 40.50

3-2

5421028302
ref: 3-2

PANEL,FRONT HUB

€ 40.50

4-1

5441001004
ref: 4-1
54400-35860

SHOE,BRAKE

€ 39.00

4-2

5441001005
ref: 4-2
54400-35860

SHOE,BRAKE

€ 39.00

5

0944307001
ref: 5
09443-07025

SPRING(L:34)

€ 2.50

6-1

5444128001
ref: 6-1

CAM,FRONT BRAKE

€ 19.50

6-2

5444101001
ref: 6-2
54441-01002

CAM,FRONT BRAKE

€ 19.50

7

0928012001
ref: 7

O RING(D:2.5,ID:11.4)

€ 2.50

8

5445103602
ref: 8

LEVER,FRONT BRAKE CAM

€ 10.50

9

5445103002
ref: 9

LEVER,FR BRAKE CAM

€ 10.50

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0831111068
ref: 11
08310-00067

NUT

€ 2.50

12

0910006050
ref: 12
09100-06150

BOLT

€ 1.50

13

0916012011
ref: 13

WASHER(12.5X20X1)

€ 1.50

14

0925011003
ref: 14

CAP(OD:17)

€ 2.50

15-1

5471128300
ref: 15-1

AXLE,FRONT

€ 22.50

15-2

5471128303
ref: 15-2

AXLE,FRONT

€ 22.50

16-1

0918012040
ref: 16-1

SPACER(12X18X16.4)

€ 4.50

16-2

0918012052
ref: 16-2

SPACER

€ 0.00

17-1

5489228000
ref: 17-1

DUST SEAL,FRONT HUB DRUM

€ 2.50

17-2

5489225500
ref: 17-2

DUST SEAL,FRONT HUB DRUM

€ 2.50

18

0918012041
ref: 18
09180-12144

SPACER (12.6X19X52)

€ 4.50

19

0928418002
ref: 19

OIL SEAL

€ 4.50

20

0811362010
ref: 20
08113-62017

BEARING

€ 11.00

21

0814362010
ref: 21
08143-62017

BEARING, LH

€ 11.50

22

5472136000
ref: 22

NO PRODUCT DESCRIPTION AVAILABLE

€ 7.00

23

0831441128
ref: 23
08314-4012A

NUT, REAR AXLE

€ 2.50

24

0918012064
ref: 24

SPACER

€ 3.00

25

0832221128
ref: 25
08322-01127

WASHER

€ 2.00

26

0411130308
ref: 26
04111-3030A

COTTER PIN

€ 1.50

27-1

5510016510
ref: 27-1

TIRE,FRONT

€ 0.00

27-2

5510016511
ref: 27-2
55100-14230

TIRE,FRONT

€ 0.00

28

5520015010
ref: 28
55200-44610

TUBE,INNER

€ 41.00

29

5520016510
ref: 29

TUBE

€ 32.50

30

5526116510
ref: 30
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

31

5531116500
ref: 31

RIM,FRONT WHEEL

€ 83.00

32-1

5531116501
ref: 32-1

RIM,FRONT WHEEL

€ 83.00

32-2

5531128322
ref: 32-2

RIM,FRONT WHEEL

€ 83.00

33

5530028808
ref: 33

SPOKE SET,FRONT

€ 14.50

34

5530028850
ref: 34
55320-28700

SPOKE SET,FRONT

€ 48.50

35

5530028860
ref: 35

SPOKE SET,FRONT

€ 20.50

36

6527030000
ref: 36
65270-43D00

STOPPER,BEAD

€ 30.50

37

0832221088
ref: 37
08322-01087

WASHER

€ 2.00

38

0915908016
ref: 38

NUT

€ 2.00

39

5475128300
ref: 39
09180-12064

SPACER,FRONT AXLE,LEFT

€ 3.00
