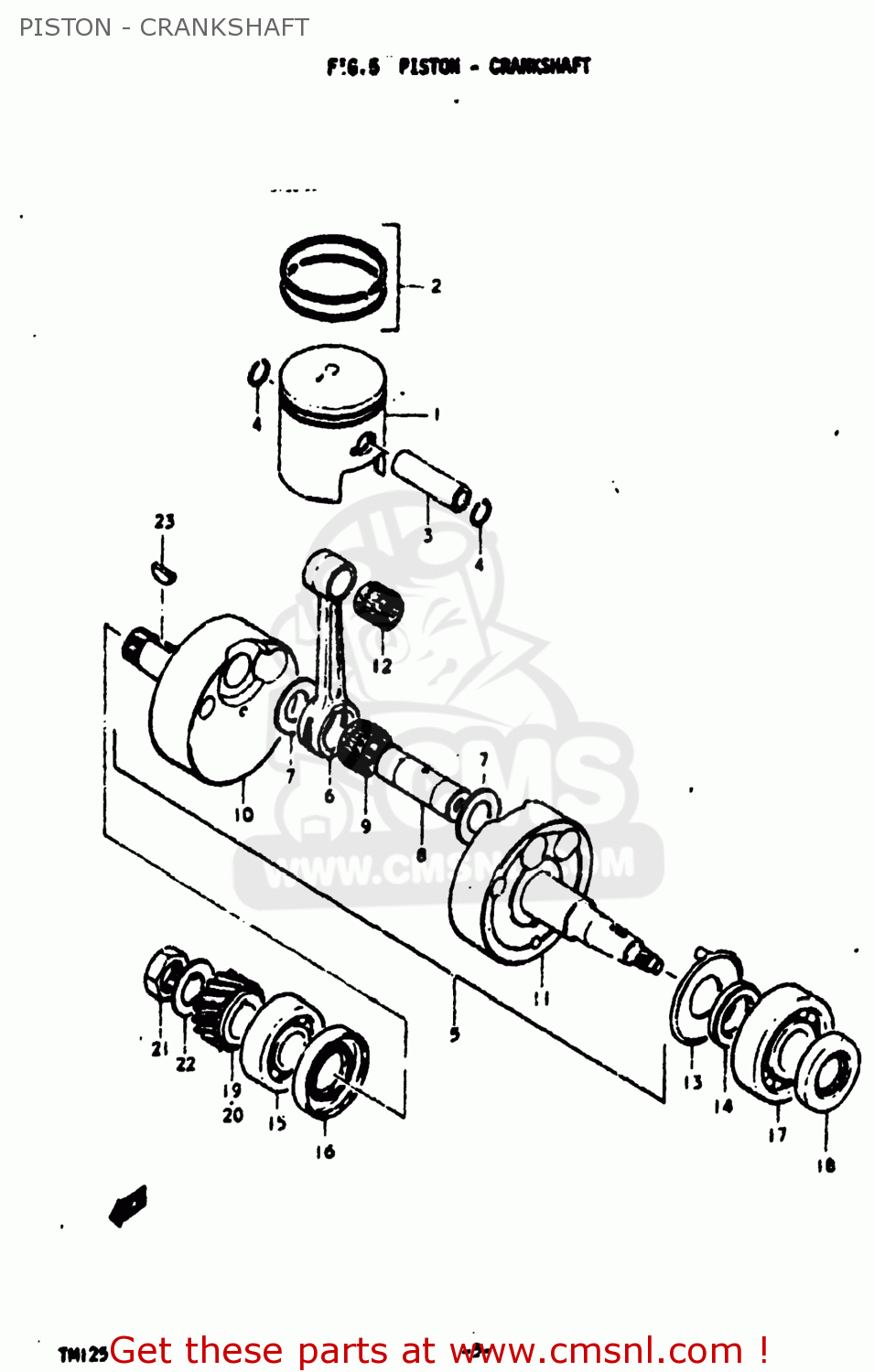

PISTON - CRANKSHAFT - TM125 1975 (M) USA (E03)

ref

part #

description

quantity

1-1

1211028301
ref: 1-1
12110-41731

PISTON

€ 36.50

1-2

1211028760
ref: 1-2
12110-41731

PISTON

€ 36.50

1-3

1211028743
ref: 1-3
12110-41731-050

PISTON

€ 50.00

2-1

1214028010
ref: 2-1
12140-28021

RING SET,PISTON

€ 41.50

2-2

1214028710
ref: 2-2
12140-28011-050

RING SET,PISTON

€ 42.00

3

1215128000
ref: 3
12151-05200

PIN,PISTON

€ 6.50

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5-1

1220028830
ref: 5-1

CRANKSHAFT ASSEMBLY

€ 195.50

5-2

1220028300
ref: 5-2

CRANKSHAFT ASSEMBLY

€ 195.50

6-1

1216128300
ref: 6-1
12161-39300

CONNECTING ROD

€ 54.50

6-2

1216112000
ref: 6-2
12161-39300

CONNECTING ROD

€ 54.50

7-1

0916019001
ref: 7-1

WASHER(19X32X1)

€ 3.50

7-2

0916019002
ref: 7-2
09160-19001

WASHER

€ 3.50

8

1221128000
ref: 8

PIN,CRANK

€ 33.50

9

0926319007
ref: 9
09263-19009

BEARING

€ 15.00

10

1222128001
ref: 10

CRANKSHAFT

€ 64.50

11

1226128002
ref: 11
12261-41001

CRANKSHAFT,LEFT

€ 76.00

12

0926314004
ref: 12
09263-14022

BEARING

€ 10.00

13

1251128002
ref: 13

PLATE,CRANKSHAFT OIL GUIDE

€ 7.50

14

0918025041
ref: 14

SPACER

€ 4.50

15

0926220009
ref: 15
09262-20073

BEARING

€ 19.00

16

0928326007
ref: 16

SEAL,OIL(26X52X8)

€ 7.50

17

0926925013
ref: 17

BEARING(25X62X17)

€ 41.50

18

0928325037
ref: 18
09283-25066

OIL SEAL

€ 7.00

19

2111128000
ref: 19
21111-28001

GEAR,PRIMARY DRIVE

€ 42.00

20

2111128700
ref: 20

GEAR,PRIMARY DRIVE

€ 16.50

21

0914018002
ref: 21

NUT

€ 3.50

22

0916618001
ref: 22

WASHER

€ 3.00

23

0834131059
ref: 23

KEY

€ 3.00

PISTON - CRANKSHAFT

all assemblies
