CYLINDER
TM250 1973 (K) USA (E03)

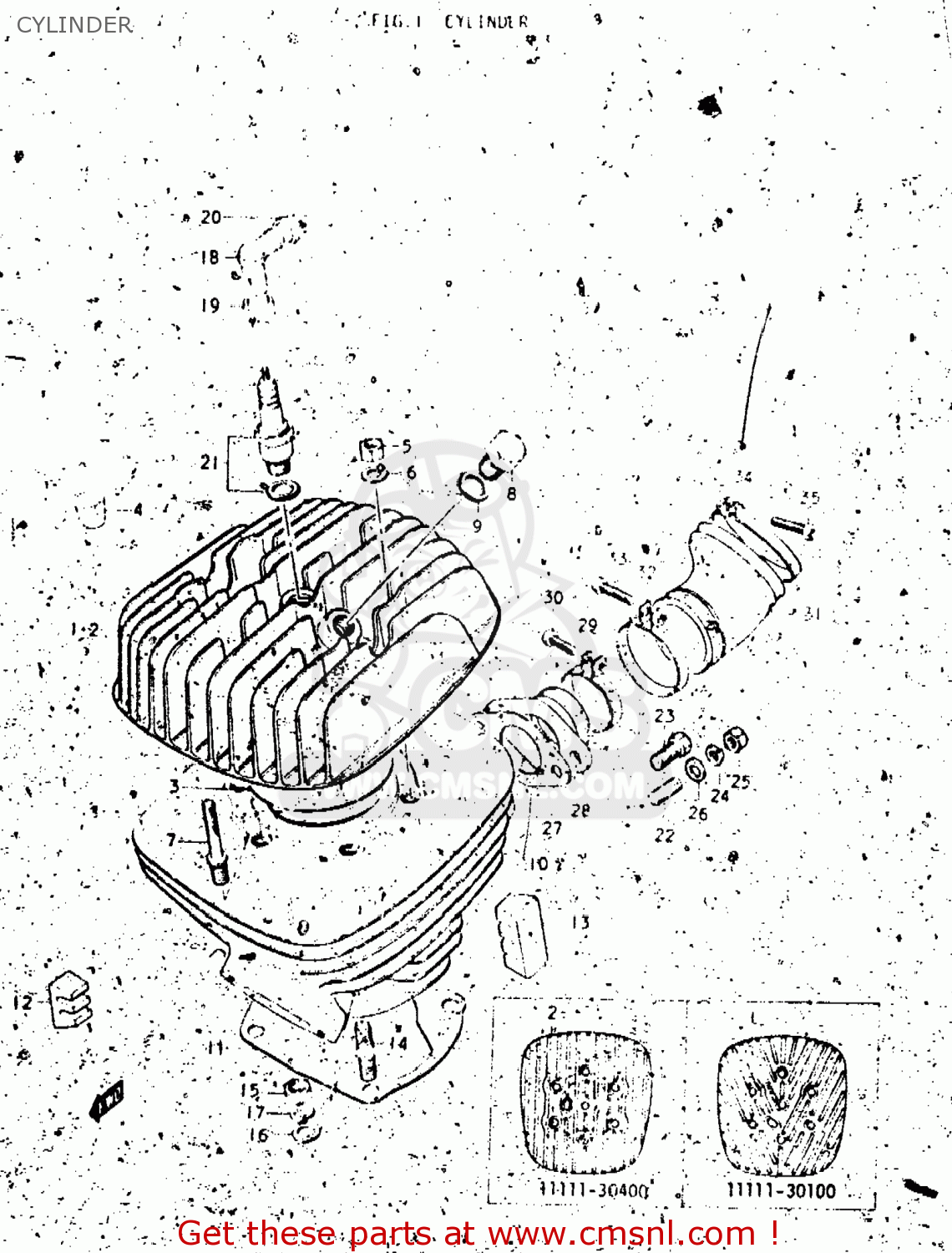

Cylinder diagram TM250 1973 (K) USA (E03)
CYLINDER TM250 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111130100
ref: 1
HEAD,CYLINDER
€ 0.00
2
1111130400
ref: 2
HEAD,CYLINDER
€ 0.00
3
1114116300
ref: 3
GASKET,CYLINDER HEAD (NAS)
€ 13.00
4
1115125000
ref: 4
11252-25000
PAD,CYLINDER HEAD
€ 5.00
5
0914008005
ref: 5
09140-08017
NUT (8MM)
€ 1.50
6
0832221088
ref: 6
08322-01087
WASHER
€ 2.00
7
0910808018
ref: 7
BOLT,STUD
€ 4.00
8
0924714007
ref: 8
09247-14025
PLUG
€ 3.50
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10-1
1121030100
ref: 10-1
CYLINDER
€ 187.50
10-2
1121030400
ref: 10-2
CYLINDER
€ 246.00
11
1124130000
ref: 11
11241-30001
GASKET,CYLINDER (MCA)
€ 6.00
12
1125116400
ref: 12
11261-16400
PAD,CYLINDER
€ 8.50
13
1126116400
ref: 13
PAD,CYLINDER
€ 8.50
14
0142110308
ref: 14
01421-1030A
STUD 10X30
€ 2.50
15
0831211108
ref: 15
08310-00107
NUT
€ 2.50
16
0832211108
ref: 16
08322-01107
WASHER
€ 2.50
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18-1
3351026700
ref: 18-1
33510-28300
CAP,SPARK PLUG
€ 19.50
18-2
3351028300
ref: 18-2
CAP ASSEMBLY,SPARK PLUG
€ 19.50
19
3354169010
ref: 19
SEAL,SPARK PLUG
€ 5.00
20
3354226700
ref: 20
SEAL,HIGH TENSION CORD
€ 1.00
21-1
0948200056
ref: 21-1
09482-00091
SPARK PLUG
€ 3.00
21-2
0948200047
ref: 21-2
SPARK PLUG
€ 3.50
21-3
0948200046
ref: 21-3
SPARK PLUG
€ 19.50
21-4
0948200055
ref: 21-4
SPARK PLUG
€ 5.00
21-4
0948200055
ref: 21-4
SPARK PLUG
€ 5.00
21-5
0948200029
ref: 21-5
09482-00091
SPARK PLUG
€ 3.00
22
0142108168
ref: 22
01421-0816A
STUD BOLT
€ 2.00
23
0112208208
ref: 23
01500-08207
BOLT
€ 3.00
24
0832121088
ref: 24
08321-01087
LOCK WASHER
€ 2.00
25
0831211088
ref: 25
08310-00087
NUT
€ 2.00
26
0832211088
ref: 26
08322-01087
WASHER
€ 2.00
27
1312515000
ref: 27
GASKET,CARBURETOR (NAS)
€ 6.00
28
1311016500
ref: 28
PIPE,INTAKE
€ 65.50
29
0940200246
ref: 29
09402-52306
CLAMP
€ 6.00
30
0211105207
ref: 30
02112-05207
SCREW
€ 3.00
31-1
1388130710
ref: 31-1
TUBE,AIR CLEANER OUTLET
€ 16.00
31-2
1388130711
ref: 31-2
TUBE,AIR CLEANER OUTLET
€ 16.00
32
0940206306
ref: 32
CLAMP J,K,L,M; FROM 09402-00092
€ 0.00
33
0211105257
ref: 33
02112-05257
SCREW
€ 2.00
34
0940280306
ref: 34
CLAMP
€ 2.50
35
0211105207
ref: 35
02112-05207
SCREW
€ 3.00
