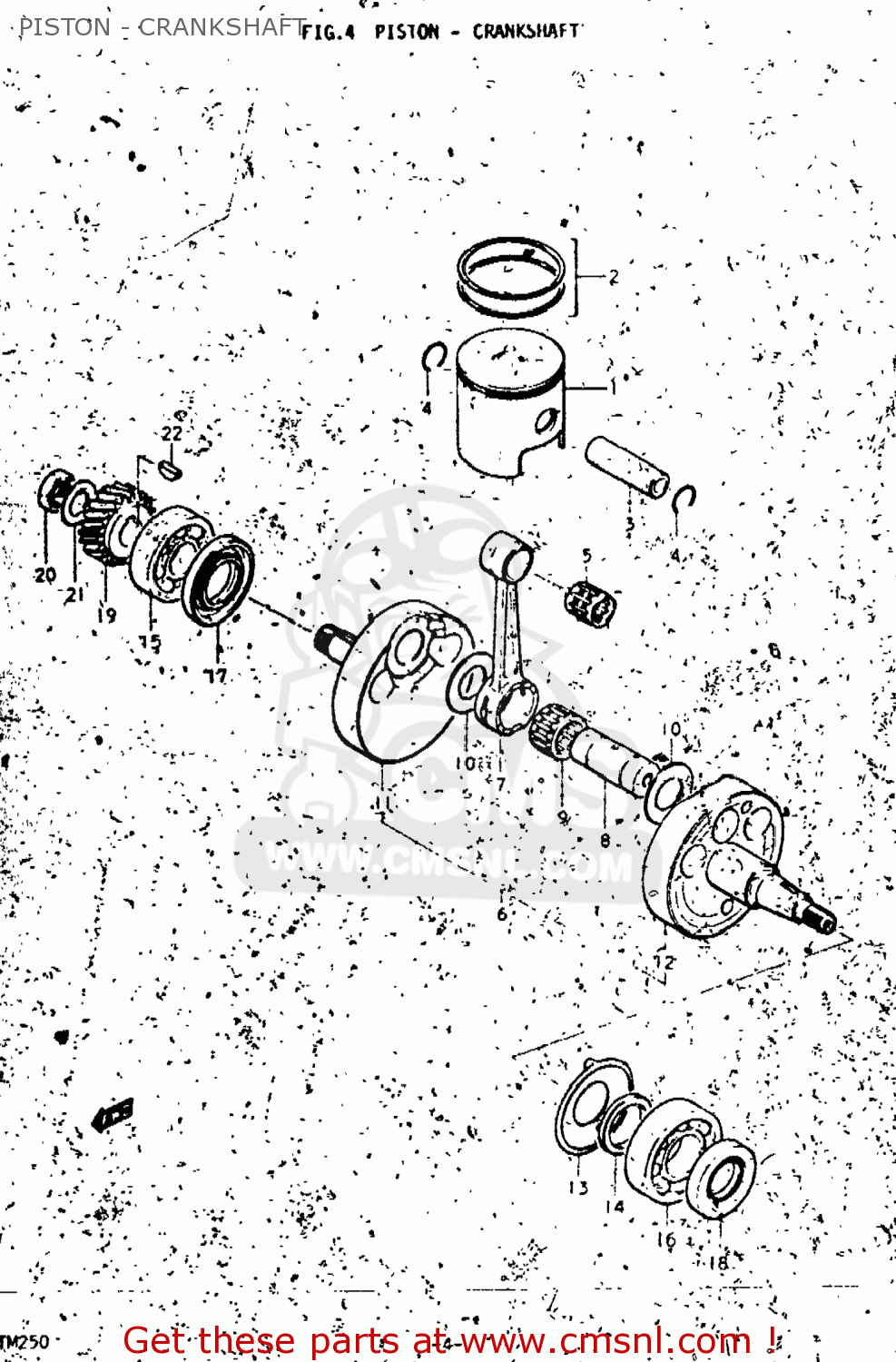

PISTON - CRANKSHAFT - TM250 1973 (K) USA (E03)

ref

part #

description

quantity

1-1

1211030731
ref: 1-1

PISTON

€ 18.00

1-2

1211030740
ref: 1-2
12110-30731-050

PISTON

€ 35.50

2-1

1214030010
ref: 2-1

RING SET,PISTON

€ 70.00

2-2

1214030710
ref: 2-2
12140-30010-050

RING SET,PISTON

€ 59.00

3

1215115000
ref: 3
12151-13A00-0A0

PIN,PISTON (18MM)

€ 14.50

4

0938118002
ref: 4

CIRCLIP

€ 1.50

5

0926318005
ref: 5
09263-18021

BEARING

€ 22.50

6-1

1200230803
ref: 6-1

CRANKSHAFT SET

€ 584.00

6-2

1220030830
ref: 6-2

CRANKSHAFT ASSEMBLY

€ 584.00

6-2

1220030002
ref: 6-2
12200-30003

CRANKSHAFT ASSEMBLY

€ 584.00

7-1

1216116400
ref: 7-1

ROD,CONNECTING

€ 107.50

7-2

1216130200
ref: 7-2
12161-16400

CONNECTING ROD

€ 107.50

8

1221116400
ref: 8

PIN,CRANK

€ 56.50

9

0926325008
ref: 9

BEARING(25X31X20)

€ 17.00

10

0916025004
ref: 10
09160-25024

WASHER

€ 7.00

11-1

1222130000
ref: 11-1

CRANKSHAFT

€ 61.00

11-2

1222130001
ref: 11-2

CRANKSHAFT

€ 61.00

12-1

1226130001
ref: 12-1

CRANKSHAFT,LEFT

€ 61.50

12-2

1226130002
ref: 12-2

CRANKSHAFT,LEFT

€ 61.50

13

1251130002
ref: 13

PLATE,CRANKSHAFT OIL GUIDE

€ 5.50

14

0918030012
ref: 14

SPACER (30X45X4.8)

€ 4.50

15

0811363050
ref: 15
09262-25073

BEARING

€ 21.50

16

0926930006
ref: 16

BEARING(30X72X19)

€ 48.00

17

0928335004
ref: 17

SEAL,OIL(35X62X9)

€ 19.50

18

0928330011
ref: 18
09283-30064

OIL SEAL

€ 32.50

19-1

2111130000
ref: 19-1

GEAR,PRIMARY DRIVE

€ 47.00

19-2

2111130100
ref: 19-2

GEAR,PRIMARY DRIVE

€ 23.50

20

0914018002
ref: 20

NUT

€ 3.50

21

0916618001
ref: 21

WASHER

€ 3.00

22

0834131059
ref: 22

KEY

€ 3.00
