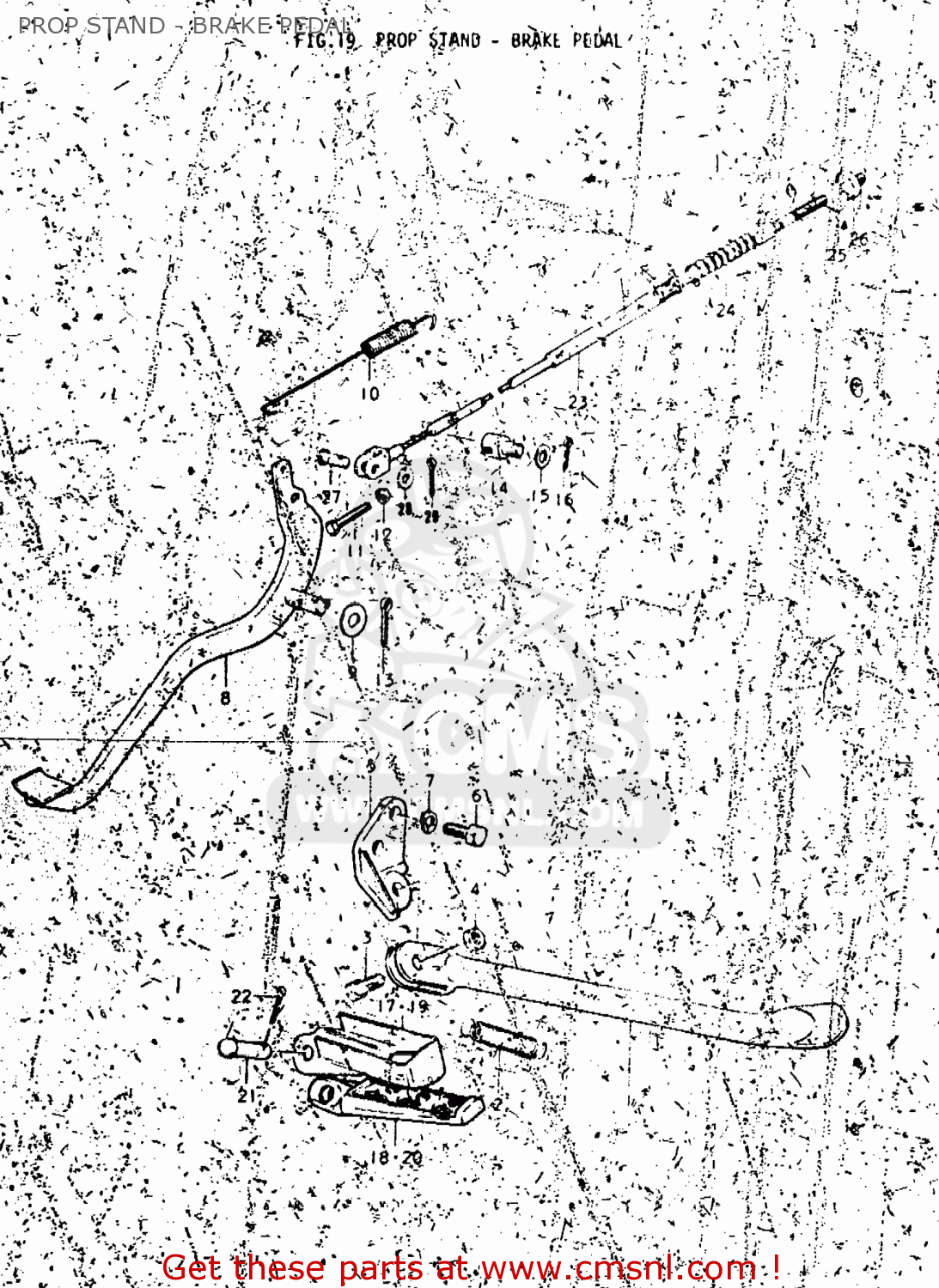

PROP STAND - BRAKE PEDAL - TM250 1974 (L) USA (E03)

ref

part #

description

quantity

1

4231030000
ref: 1
42310-30001

STAND,SIDE

€ 33.50

2

0944314005
ref: 2
09443-14017

SPRING

€ 6.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831231108
ref: 4
08310-00107

NUT

€ 2.50

5

4233030000
ref: 5

BRACKET,SIDE STAND

€ 15.00

6

0111110258
ref: 6
01500-10257

BOLT

€ 3.00

7

0832121108
ref: 7
08321-01107

LOCK WASHER

€ 2.00

8-1

4311030100
ref: 8-1

PEDAL,BRAKE

€ 25.00

8-2

4311030101
ref: 8-2

PEDAL,BRAKE

€ 25.00

8-3

4311030102
ref: 8-3

PEDAL,BRAKE

€ 25.00

9

0916010001
ref: 9
09160-10093

WASHER

€ 2.00

10

0944314008
ref: 10

SPRING

€ 1.50

11

0910006003
ref: 11

BOLT

€ 1.50

12

0831111068
ref: 12
08310-00067

NUT

€ 2.50

13

0411130208
ref: 13
04111-3020A

PIN 30X20

€ 1.50

14

4322116501
ref: 14

PROP STAND

€ 8.50

15

0916008020
ref: 15

WASHER

€ 1.00

16

0411125208
ref: 16
04111-2520A

PIN 25X20

€ 2.00

17

4355016500
ref: 17

FOOTREST,FRONT,RIGHT

€ 10.00

18

4351130100
ref: 18

BAR,FRONT FOOTREST

€ 15.00

19

4356016500
ref: 19

FOOTREST,FRONT,LEFT

€ 24.50

20

4352130100
ref: 20

BAR,FOOTREST,LEFT

€ 14.50

21-1

0920008024
ref: 21-1

PIN

€ 1.00

21-2

0432208308
ref: 21-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.50

22

0411120158
ref: 22
04111-2015A

PIN

€ 1.50

23

5851016501
ref: 23

CABLE,RR BRAKE

€ 31.50

24

0928705001
ref: 24

SEAL,DUST

€ 11.00

25

0920913003
ref: 25
09209-13018

PIN

€ 3.50

26

0915006001
ref: 26
09150-06010

NUT

€ 3.50

27

0920006013
ref: 27

PIN(L:13.5)

€ 2.00

28

0832221068
ref: 28
08322-01067

WASHER

€ 2.00

29

0411120158
ref: 29
04111-2015A

PIN

€ 1.50
