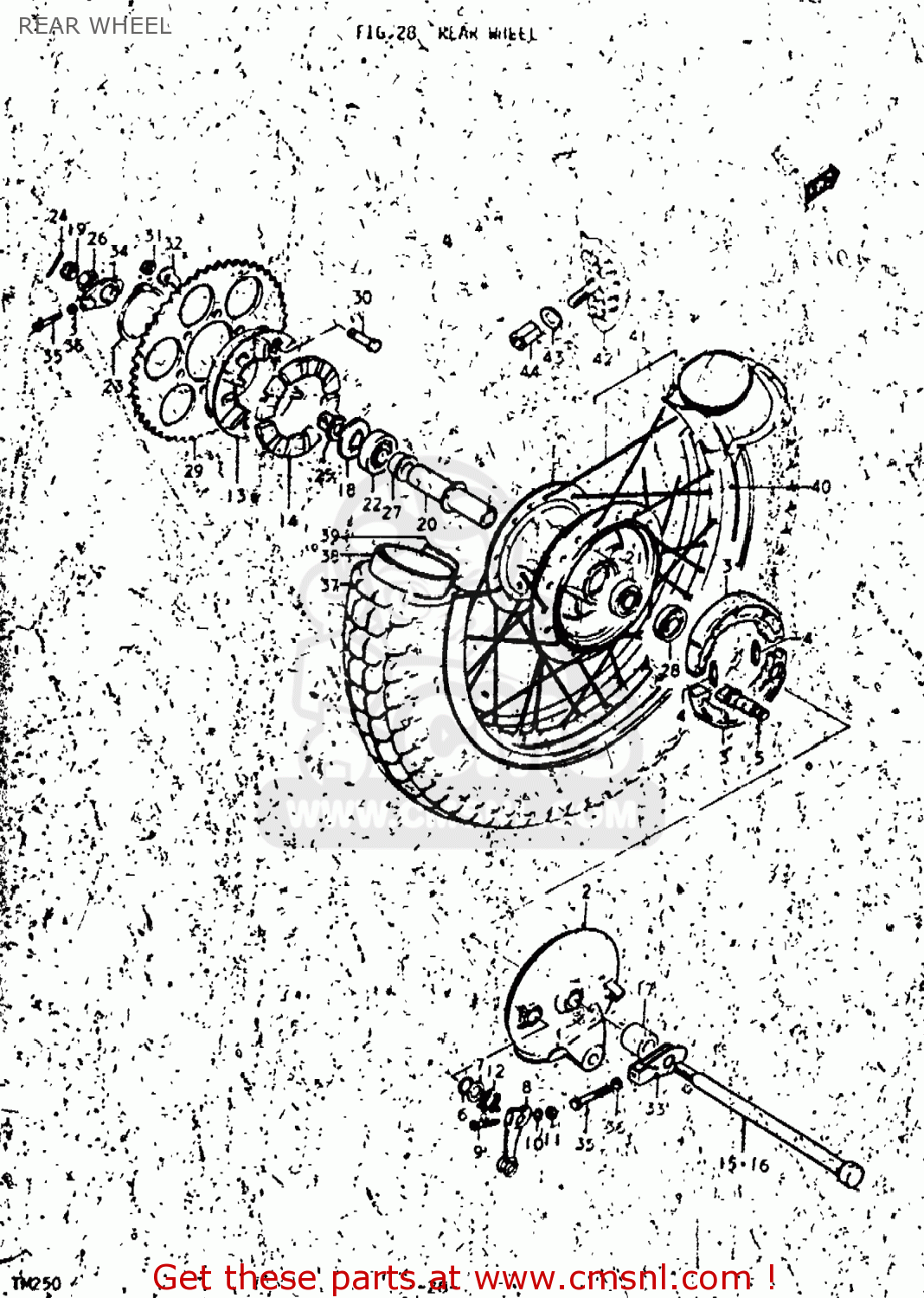

REAR WHEEL

ref

part #

description

quantity

0-1

6000116827
ref: 0-1

HUB SET,REAR

€ 0.00

0-1

6000116821
ref: 0-1

INCLUDES REF. NOS. 1,20~22,40,AND 41

€ 0.00

0-2

6410016860
ref: 0-2

HUB SET,REAR

€ 0.00

0-2

6410016860
ref: 0-2

HUB SET,REAR

€ 0.00

0-3

6410016861
ref: 0-3

HUB SET,REAR

€ 0.00

0-4

6410016840
ref: 0-4

HUB SET,REAR

€ 0.00

0-4

6410016840
ref: 0-4

HUB SET,REAR

€ 0.00

0-5

6410016841
ref: 0-5

HUB SET,REAR

€ 0.00

1

6411016500
ref: 1

DRUM,REAR HUB

€ 295.00

2-1

6421016500
ref: 2-1

PANEL,REAR HUB

€ 49.50

2-2

6421016501
ref: 2-2

PANEL,REAR HUB

€ 49.50

3-1

5441008001
ref: 3-1
64400-02830

SHOE,BRAKE

€ 35.00

3-2

544100800
ref: 3-2

SHOE, BRAKE M

€ 0.00

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5-1

5444030000
ref: 5-1

CAM,FRONT BRAKE

€ 19.00

5-2

5444030001
ref: 5-2

CAM,FRONT BRAKE

€ 19.00

5-3

5444008001
ref: 5-3
54440-08004

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

6445130000
ref: 8
64451-30001

LEVER,REAR BRAKE CAM

€ 19.00

9

0111206408
ref: 9
01500-0640B

BOLT

€ 2.00

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0831111068
ref: 11
08310-00067

NUT

€ 2.50

12

0944830001
ref: 12
09448-30001-XC0

SPRING

€ 16.00

13

6461016500
ref: 13

DRUM,REAR SPROCKET MOUNT

€ 100.50

14

6465016520
ref: 14

ABSORBER,RR WHEEL HUB SHOCK

€ 26.50

15

6471116500
ref: 15

AXLE,REAR

€ 41.00

16

6471132100
ref: 16
64711-32101

AXLE,REAR

€ 62.50

17-1

0918015014
ref: 17-1

SPACER (15.2X26X20)

€ 9.00

17-2

0918015028
ref: 17-2

SPACER

€ 1.50

18

6475030000
ref: 18

SPACER,REAR AXLE,RIGHT

€ 8.50

19

0914114001
ref: 19

NUT

€ 4.50

20

6473030000
ref: 20

SPACER,REAR HUB BEARING

€ 10.50

21

0811363020
ref: 21
09262-15027

BEARING, RH

€ 17.50

22

0812363040
ref: 22
08123-63047

BEARING

€ 14.00

23

0833111628
ref: 23

CIRCLIP

€ 4.00

24

0411130408
ref: 24
04111-3040A

PIN 30X40

€ 1.50

25

6479130000
ref: 25

SPACER,REAR AXLE,LEFT

€ 17.00

26

0914024002
ref: 26
09140-24010

NUT

€ 8.50

27

6473330000
ref: 27

SPACER,REAR HUB BEARING

€ 16.50

28

0928426001
ref: 28

OIL SEAL

€ 6.00

29-1

6451130720
ref: 29-1

SPROCKET,REAR

€ 47.00

29-2

6451130730
ref: 29-2

SPROCKET,REAR

€ 39.50

29-3

6451130740
ref: 29-3

SPROCKET,REAR

€ 40.50

30

0910508001
ref: 30

BOLT(8X33.5)

€ 2.50

31-1

0831231088
ref: 31-1
08310-00087

NUT

€ 2.00

31-2

0914008010
ref: 31-2

NUT

€ 2.00

32

0916908010
ref: 32
09169-08011

WASHER

€ 2.50

33

6141030000
ref: 33
61410-30003

ADJUSTER,CHAIN

€ 18.50

34

6142030001
ref: 34
61420-30002

ADJUSTER,CHAIN

€ 13.50

34

6142030001
ref: 34
61420-30002

ADJUSTER,CHAIN

€ 13.50

35

0910408000
ref: 35

BOLT

€ 0.00

36

0831211088
ref: 36
08310-00087

NUT

€ 2.00

37

6510016510
ref: 37

TIRE

€ 0.00

38

6520016510
ref: 38

TUBE ASSEMBLY,WHEEL,INNER

€ 16.00

39

6526116510
ref: 39
65261-33030

PROTECTOR,WHEEL,INNER

€ 5.50

40-1

6531116500
ref: 40-1

RIM,REAR WHEEL

€ 86.00

40-1

6531116500
ref: 40-1

RIM,REAR WHEEL

€ 86.00

40-1

6531116500
ref: 40-1

RIM,REAR WHEEL

€ 86.00

40-2

6531116520
ref: 40-2
65311-28322

RIM,REAR WHEEL

€ 86.00

40-2

6531116520
ref: 40-2
65311-28322

RIM,REAR WHEEL

€ 86.00

40-2

6531116520
ref: 40-2
65311-28322

RIM,REAR WHEEL

€ 86.00

40-3

6531128322
ref: 40-3

RIM,REAR WHEEL

€ 86.00

40-4

6531130400
ref: 40-4

RIM,REAR WHEEL

€ 0.00

40-4

6531130400
ref: 40-4

RIM,REAR WHEEL

€ 0.00

40-4

6531130400
ref: 40-4

RIM,REAR WHEEL

€ 0.00

40-5

6531130420
ref: 40-5

RIM,REAR WHEEL

€ 0.00

40-6

6531130421
ref: 40-6

RIM,REAR WHEEL

€ 0.00

41-1

6530028860
ref: 41-1

SPOKE SET,REAR

€ 39.50

41-2

6530016828
ref: 41-2
65320-16520

SPOKE SET,REAR

€ 54.00

41-3

6530030830
ref: 41-3

SPOKE SET,REAR

€ 0.00

42-1

6527030000
ref: 42-1
65270-43D00

STOPPER,BEAD

€ 30.50

42-2

6527032100
ref: 42-2
65270-28E00

STOPPER,BEAD

€ 38.00

43

0832221088
ref: 43
08322-01087

WASHER

€ 2.00

44

0915908016
ref: 44

NUT

€ 2.00
