FRONT FORK

TM400 1974 (L) USA (E03)

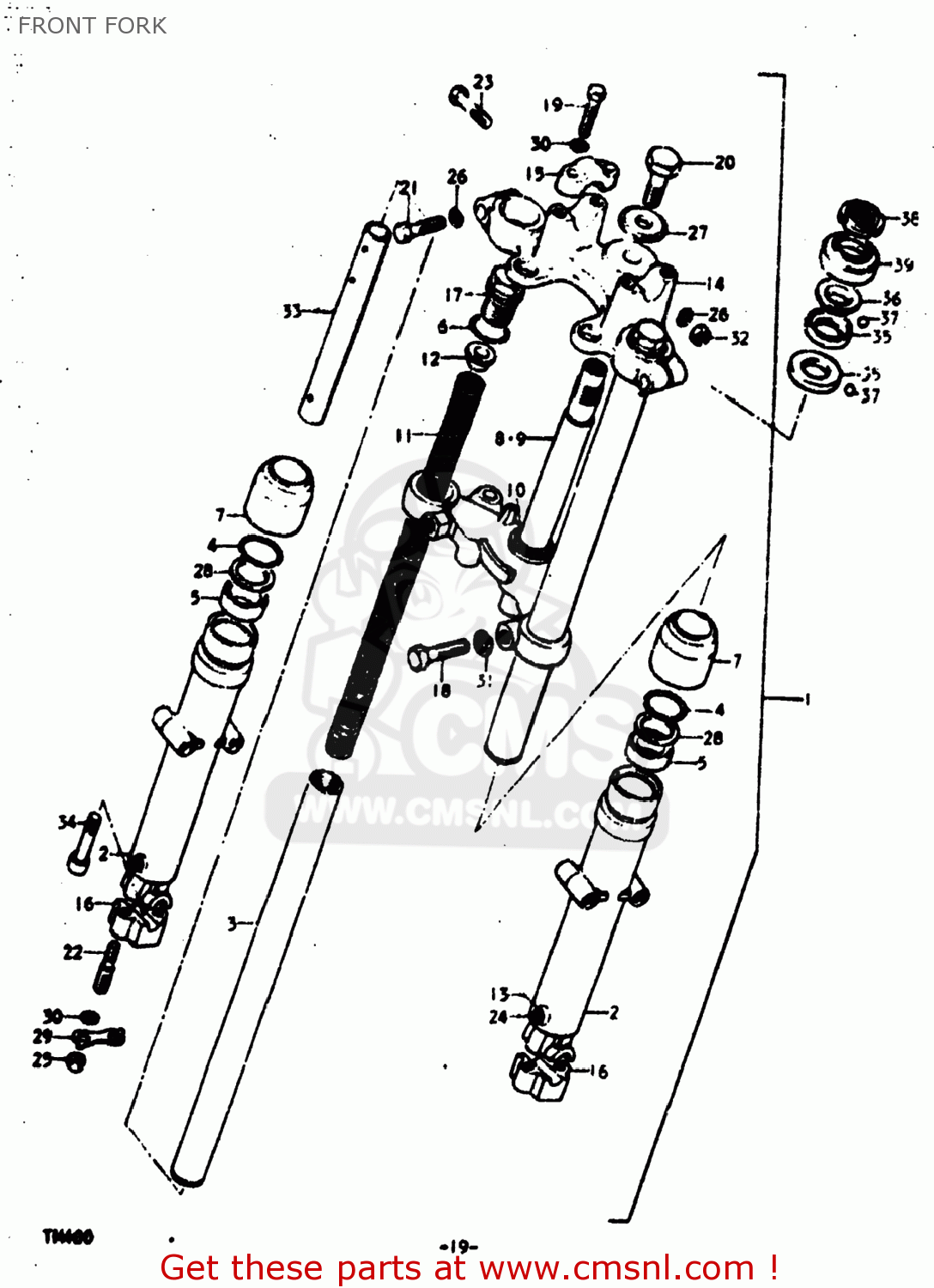

Front fork diagram TM400 1974 (L) USA (E03)

FRONT FORK TM400 1974 (L) USA (E03)
FRONT FORK TM400 1974 (L) USA (E03)
FRONT FORK TM400 1974 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
0-1
5110032111
ref: 0-1
DAMPER SET
€ 0.00
0-2
5110032112
ref: 0-2
DAMPER SET
€ 0.00
1
5113032110
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114032110
ref: 2
TUBE,OUTER,LEFT
€ 49.00
3
5114032111
ref: 3
TUBE,OUTER,LEFT
€ 49.00
4
5115334010
ref: 4
SEAL,OIL
5115334010
€ 15.00
5
5111132110
ref: 5
TUBE,FORK,INNER
€ 47.00
6
5114632110
ref: 6
CYLINDER,FRONT FORK
€ 0.00
7
5119532110
ref: 7
PIECE,OIL LOCK
€ 0.00
8
5114632112
ref: 8
CYLINDER,FRONT FORK
€ 0.00
9
5119532111
ref: 9
51195-38010
PIECE,OIL LOCK
5119532111
€ 16.00
10
5114816510
ref: 10
GASKET (NAS)
5114816510
€ 2.00
11
5114716510
ref: 11
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
12
0142108458
ref: 12
STUD BOLT
0142108458
€ 2.50
13
5113216510
ref: 13
HOLDER,AXLE
5113216510
€ 11.50
14
0832221088
ref: 14
08322-01087
WASHER
0832221088
€ 2.00
15
0832121088
ref: 15
08321-01087
LOCK WASHER
0832121088
€ 2.00
16
0914008005
ref: 16
09140-08017
NUT (8MM)
0914008005
€ 1.50
17
5135132110
ref: 17
CAP,FORK INNER TUBE
€ 13.50
18
5118118510
ref: 18
O-RING,FORK FITTING BOLT
€ 4.50
19
0211104087
ref: 19
02112-04087
SCREW
0211104087
€ 1.50
20
5118303010
ref: 20
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
21
5117132110
ref: 21
SPRING
€ 10.00
22
5117132112
ref: 22
SPRING
€ 0.00
23
5111816510
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
24
5111816511
ref: 24
SNAP RING
5111816511
€ 1.50
25
5111216510
ref: 25
PISTON L
5111216510
€ 4.50
26
5111216511
ref: 26
PISTON M
5111216511
€ 4.50
27
5131132110
ref: 27
HEAD,STEERING STEM
€ 35.50
28
0910610001
ref: 28
BOLT
€ 0.00
29
5135628310
ref: 29
WASHER,STEM HEAD
€ 2.50
30
5135128310
ref: 30
CAP
5135128310
€ 6.50
31
5621127110
ref: 31
HOLDER,HANDLEBAR
€ 12.50
32
0832121088
ref: 32
08321-01087
LOCK WASHER
0832121088
€ 2.00
33
0122108357
ref: 33
01204-08357
Bolt
€ 3.50
34
5141132110
ref: 34
STEM,STEERING
€ 46.00
35
5140132110
ref: 35
STEM,STEERING
€ 59.50
36
5162133001
ref: 36
RACE,STEERING OUTER LWR
5162133001
€ 10.00
37
0112210608
ref: 37
01500-1060A
BOLT
0112210608
€ 3.50
38
0832121108
ref: 38
08321-01107
LOCK WASHER
0832121108
€ 2.00
39
0831211108
ref: 39
08310-00107
NUT
€ 2.50
40
0112210508
ref: 40
01500-1050A
BOLT 10X50
€ 7.00
41
0832121108
ref: 41
08321-01107
LOCK WASHER
0832121108
€ 2.00
42
0831211108
ref: 42
08310-00107
NUT
€ 2.50
43
5117332110
ref: 43
SEAL,DUST
5117332110
€ 13.00
44
5145628310
ref: 44
BOLT
€ 0.00
45
5117216510
ref: 45
GUIDE,FRONT FORK SPRING
€ 0.00
46
5117234110
ref: 46
SEAT,FRONT FORK SPRING
5117234110
€ 7.50
47
5115632110
ref: 47
CIRCLIP,FORK OIL SEAL
€ 6.00
48
5113731010
ref: 48
09108-08142
BOLT,STUD
€ 2.00
49-1
5115816510
ref: 49-1
WASHER
€ 0.00
49-2
5115832110
ref: 49-2
RING,FORK BACK UP
€ 3.00
50-1
5161133001
ref: 50-1
51611-33002
RACE,STEERING,INNER,UPPER
€ 7.00
50-2
5161133002
ref: 50-2
LACE,STEERING INNER LWR
5161133002
€ 7.00
51
5162130001
ref: 51
LACE,STEERING OUTER UPR
5162130001
€ 14.00
52
0611108003
ref: 52
BALL
0611108003
€ 1.50
53
5163128000
ref: 53
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
54
5164330000
ref: 54
DUST SEAL,STEERING UPR
5164330000
€ 15.50
