STAND - BRAKE PEDAL
TM400 1974 (L) USA (E03)

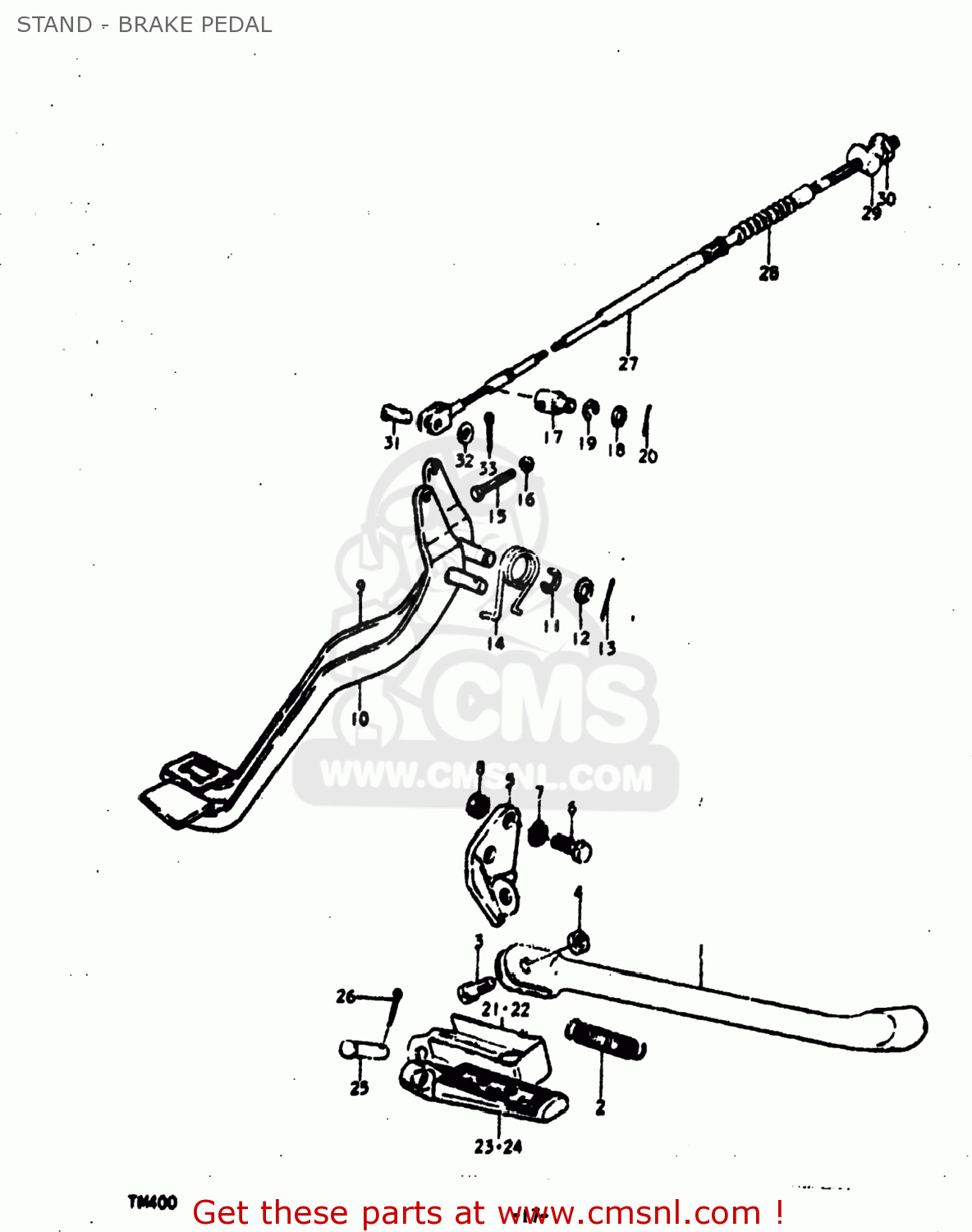

Stand - brake pedal diagram TM400 1974 (L) USA (E03)
STAND - BRAKE PEDAL TM400 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231016500
ref: 1-1
42310-41100
STAND,SIDE
€ 33.50
1-2
4231025000
ref: 1-2
STAND,SIDE
€ 17.00
2
0944314005
ref: 2
09443-14017
SPRING
€ 6.50
3-1
0910010007
ref: 3-1
09100-10287
BOLT
€ 4.50
3-2
0910010067
ref: 3-2
BOLT(10X30)
€ 3.50
4
0831231108
ref: 4
08310-00107
NUT
€ 2.50
5
4233032100
ref: 5
BRACKET,SIDE STAND
€ 9.00
6
0112210258
ref: 6
01500-10257
BOLT 10X25
€ 3.00
7
0832121108
ref: 7
08321-01107
LOCK WASHER
€ 2.00
8
0831231108
ref: 8
08310-00107
NUT
€ 2.50
9
4311016500
ref: 9
PEDAL,BRAKE
€ 12.50
10
4311032100
ref: 10
PEDAL,BRAKE
€ 18.00
11
0833211088
ref: 11
08332-1108A
E RING 8MM
€ 2.00
12-1
0916010001
ref: 12-1
09160-10093
WASHER
€ 2.00
12-2
0832211128
ref: 12-2
08322-01127
WASHER
€ 2.00
13-1
0411130308
ref: 13-1
04111-3030A
COTTER PIN
€ 1.50
13-2
0411130208
ref: 13-2
04111-3020A
PIN 30X20
€ 1.50
14-1
0944826001
ref: 14-1
SPRING
€ 1.50
14-2
0944826002
ref: 14-2
SPRING
€ 2.50
14-3
0944829001
ref: 14-3
SPRING
€ 6.50
15-1
0910006002
ref: 15-1
BOLT
€ 1.50
15-2
0910006003
ref: 15-2
BOLT
€ 1.50
16
0831111068
ref: 16
08310-00067
NUT
€ 2.50
17-1
4322116501
ref: 17-1
PROP STAND
€ 8.50
17-2
4322116500
ref: 17-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.00
18
0916008020
ref: 18
WASHER
€ 1.00
19
0833211068
ref: 19
08332-1106A
E RING 6MM
€ 2.00
20
0411125208
ref: 20
04111-2520A
PIN 25X20
€ 2.00
21
4355016500
ref: 21
FOOTREST,FRONT,RIGHT
€ 10.00
22
4356016500
ref: 22
FOOTREST,FRONT,LEFT
€ 24.50
23
4351130100
ref: 23
BAR,FRONT FOOTREST
€ 15.00
24
4352130100
ref: 24
BAR,FOOTREST,LEFT
€ 14.50
25-1
0920008024
ref: 25-1
PIN
€ 1.00
25-2
0432208308
ref: 25-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
26
0411120158
ref: 26
04111-2015A
PIN
€ 1.50
27
5851016501
ref: 27
CABLE,RR BRAKE
€ 31.50
27
5851016501
ref: 27
CABLE,RR BRAKE
€ 31.50
28
0928705001
ref: 28
SEAL,DUST
€ 11.00
29-1
0920913001
ref: 29-1
09209-13018
PIN
€ 2.50
29-2
0920913003
ref: 29-2
09209-13018
PIN
€ 3.50
30
0915006001
ref: 30
09150-06010
NUT
€ 3.50
31
0920006013
ref: 31
PIN(L:13.5)
€ 2.00
32
0832221068
ref: 32
08322-01067
WASHER
€ 2.00
33
0411120158
ref: 33
04111-2015A
PIN
€ 1.50
