TM400 1974 (L) USA (E03)

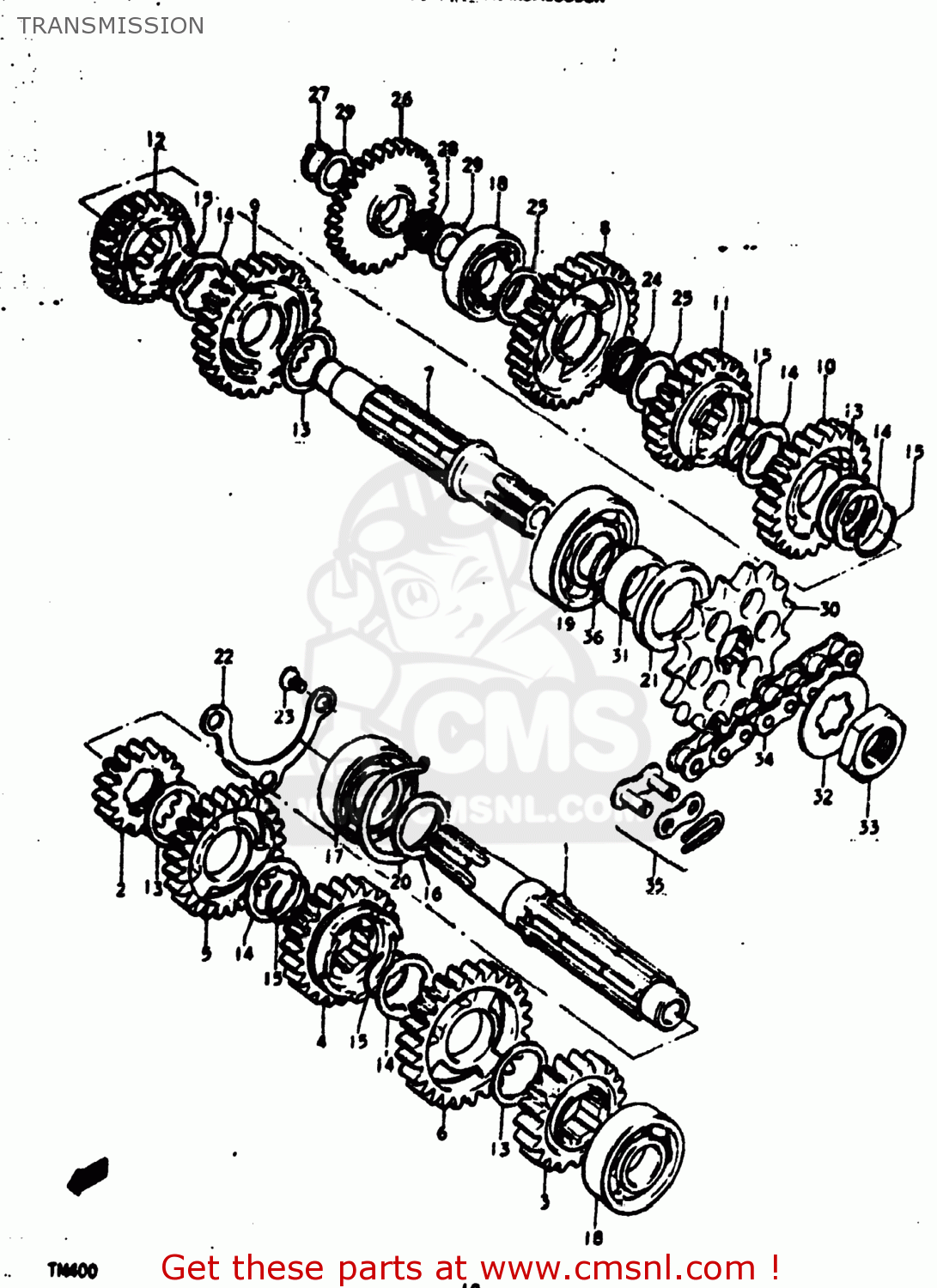

Transmission diagram TM400 1974 (L) USA (E03)
TRANSMISSION TM400 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412116501
ref: 1
SHAFT,COUNTER
€ 58.00
2
2421116500
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 13.00
3
2422116500
ref: 3
GEAR,SECOND DRIVE
€ 21.50
4
2423116500
ref: 4
GEAR,THIRD DRIVE
€ 35.50
5
2424016500
ref: 5
GEAR,FOURTH DRIVE
€ 45.50
6
2425016500
ref: 6
GEAR,FIFTH DRIVE
€ 39.00
7
2413116500
ref: 7
SHAFT,DRIVE
€ 112.00
8
2431116500
ref: 8
GEAR,FIRST DRIVEN
€ 26.50
9
2432016500
ref: 9
GEAR,SECOND DRIVEN
€ 36.00
10
2433116501
ref: 10
GEAR,THIRD DRIVEN
€ 63.00
11
2434116500
ref: 11
GEAR,FOURTH DRIVEN
€ 26.50
12
2435116500
ref: 12
GEAR,FIFTH DRIVEN
€ 27.50
13
0821125321
ref: 13
WASHER
€ 3.00
14
0916725006
ref: 14
09167-25012
WASHER
€ 3.00
15
0938025006
ref: 15
RING,SNAP
€ 2.00
16
0916025011
ref: 16
WASHER
€ 1.50
17
0814262050
ref: 17
08142-62057
BEARING
€ 18.00
18
0811362040
ref: 18
09262-20069
Bearing
€ 28.00
19
0926222006
ref: 19
09262-22025
BEARING
€ 63.50
20
0938152006
ref: 20
CIRCLIP
€ 2.00
21
0928332003
ref: 21
SEAL,OIL(32X42X6)
€ 3.50
22
2474116500
ref: 22
RETAINER,BEARING
€ 0.00
23
0212206128
ref: 23
02122-06127
SCREW
€ 3.00
24
0926320011
ref: 24
BEARING
€ 15.50
25
0916020004
ref: 25
WASHER (20X30X1)
€ 2.50
26
2626116500
ref: 26
GEAR,KICK STARTER IDLE
€ 41.00
27
0938017001
ref: 27
CIRCLIP
€ 2.00
28
0926317004
ref: 28
BEARING(17X21X9.8)
€ 7.00
29
0821117251
ref: 29
WASHER
€ 2.00
30-1
2751118710
ref: 30-1
SPROCKET,ENGINE
€ 39.00
30-2
2751118700
ref: 30-2
SPROCKET,ENGINE
€ 36.00
30-3
2751118000
ref: 30-3
SPROCKET,ENGINE
€ 27.50
30-4
2751118720
ref: 30-4
SPROCKET,ENGINE
€ 18.00
30-5
2751132000
ref: 30-5
SPROCKET,ENGINE
€ 51.50
31
0918022005
ref: 31
SPACER (22X32X13.4)
€ 4.50
32
0916722005
ref: 32
WASHER,LOCK
€ 2.50
33
0914022003
ref: 33
NUT
€ 10.00
34-1
2760016510
ref: 34-1
CHAIN ASSEMBLY,DRIVE
€ 55.00
34-1
2760016510
ref: 34-1
CHAIN ASSEMBLY,DRIVE
€ 55.00
34-2
2760032110
ref: 34-2
27600-16410
CHAIN ASSEMBLY,DRIVE
€ 55.00
34-2
2760032110
ref: 34-2
27600-16410
CHAIN ASSEMBLY,DRIVE
€ 55.00
34-3
2760030110
ref: 34-3
27600-16410
CHAIN ASSEMBLY,DRIVE
€ 55.00
34-3
2760030110
ref: 34-3
27600-16410
CHAIN ASSEMBLY,DRIVE
€ 55.00
35-1
2762016410
ref: 35-1
27620-30110
JOINT ASSEMBLY,CHAIN
€ 0.00
35-2
2762030110
ref: 35-2
JOINT ASSEMBLY,CHAIN
€ 0.00
36
0928022003
ref: 36
O RING(D:1.7,ID:22)
€ 2.50
