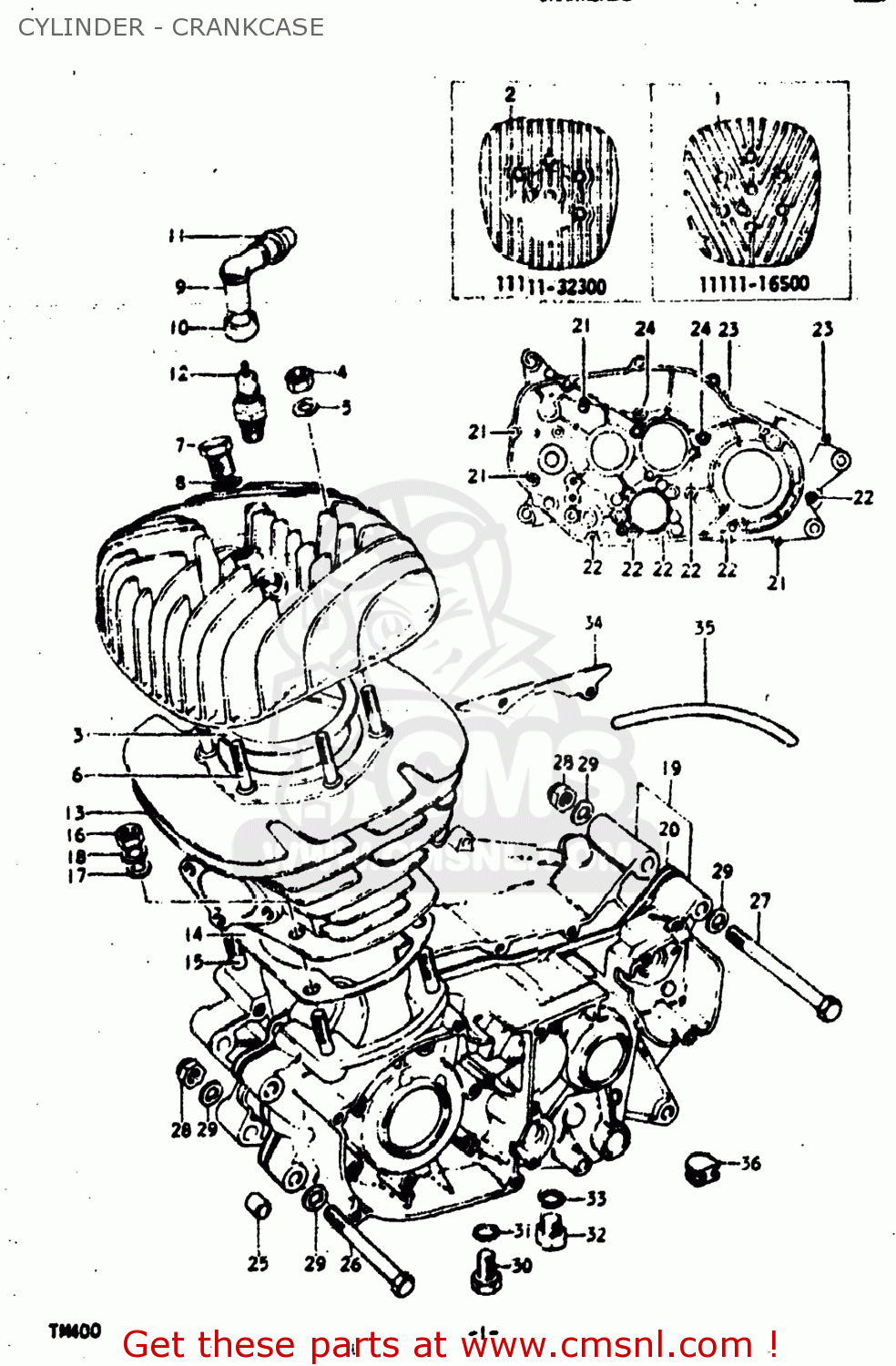

CYLINDER - CRANKCASE - TM400 1975 (M) USA (E03)

ref

part #

description

quantity

1

1111116500
ref: 1

HEAD,CYLINDER

€ 68.00

2

1111132300
ref: 2

HEAD,CYLINDER

€ 0.00

3-1

1114116500
ref: 3-1
11141-32210

GASKET,CYLINDER HEAD (NAS)

€ 17.50

3-2

1114132210
ref: 3-2

GASKET,CYLINDER HEAD (NAS)

€ 17.50

4

0914008005
ref: 4
09140-08017

NUT (8MM)

€ 1.50

5

0832221088
ref: 5
08322-01087

WASHER

€ 2.00

6

0910808018
ref: 6

BOLT,STUD

€ 4.00

7

0924714007
ref: 7
09247-14025

PLUG

€ 3.50

8

0916814004
ref: 8

GASKET(14X19.2X2) (NAS)

€ 2.50

9-1

3351026700
ref: 9-1
33510-28300

CAP,SPARK PLUG

€ 19.50

9-2

3351028300
ref: 9-2

CAP ASSEMBLY,SPARK PLUG

€ 19.50

10-1

3354122000
ref: 10-1

SEAL,SPARK PLUG

€ 5.00

10-2

3354169010
ref: 10-2

SEAL,SPARK PLUG

€ 5.00

11

3354226700
ref: 11

SEAL,HIGH TENSION CORD

€ 1.00

12-1

0948200056
ref: 12-1
09482-00091

SPARK PLUG

€ 3.00

12-2

0948200030
ref: 12-2

SPARK PLUG

€ 3.50

12-3

0948200047
ref: 12-3

SPARK PLUG

€ 3.50

13

1121016500
ref: 13

CYLINDER

€ 202.00

14-1

1124116500
ref: 14-1
11241-16501

GASKET,CYLINDER (MCA)

€ 3.00

14-2

1124116501
ref: 14-2

GASKET,CYLINDER (MCA)

€ 3.00

15

0142110358
ref: 15
01421-1035A

STUD BOLT

€ 2.00

16

0831211108
ref: 16
08310-00107

NUT

€ 2.50

17

0832211108
ref: 17
08322-01107

WASHER

€ 2.50

18

0832121108
ref: 18
08321-01107

LOCK WASHER

€ 2.00

19-1

1130116821
ref: 19-1

CRANKCASE SET

€ 366.00

19-2

1130016840
ref: 19-2

CRANKCASE SET

€ 366.00

20

1148116500
ref: 20
11481-16501

GASKET,CRANKCASE (NAS)

€ 16.50

21

0211206508
ref: 21
02112-06507

SCREW

€ 2.50

22

0211206608
ref: 22
02112-06607

SCREW 6X60

€ 2.50

23

0211206708
ref: 23
02112-06707

SCREW 6X70

€ 3.00

24

0211206808
ref: 24
02112-06807

SCREW 6X80

€ 3.00

25

0920613001
ref: 25
04211-13189

PIN

€ 2.50

26

0112210958
ref: 26
01500-1095B

BOLT

€ 3.00

27

0910010072
ref: 27

BOLT

€ 2.00

28

0915910011
ref: 28

NUT

€ 3.00

29

0832211108
ref: 29
08322-01107

WASHER

€ 2.50

30

0924710001
ref: 30

PLUG

€ 3.00

31

0916810002
ref: 31

GASKET(10X14X3.6) (NAS)

€ 2.00

32-1

0924714007
ref: 32-1
09247-14025

PLUG

€ 3.50

32-2

0924714001
ref: 32-2
09247-14002

PLUG

€ 5.00

33

0916814004
ref: 33

GASKET(14X19.2X2) (NAS)

€ 2.50

34

2487116500
ref: 34

PLATE,OIL RESERVOIR

€ 2.00

35

0934405015
ref: 35

HOSE

€ 1.50

36

0925904001
ref: 36

PLUG

€ 3.50
