FRAME COVER
TM400 1975 (M) USA (E03)

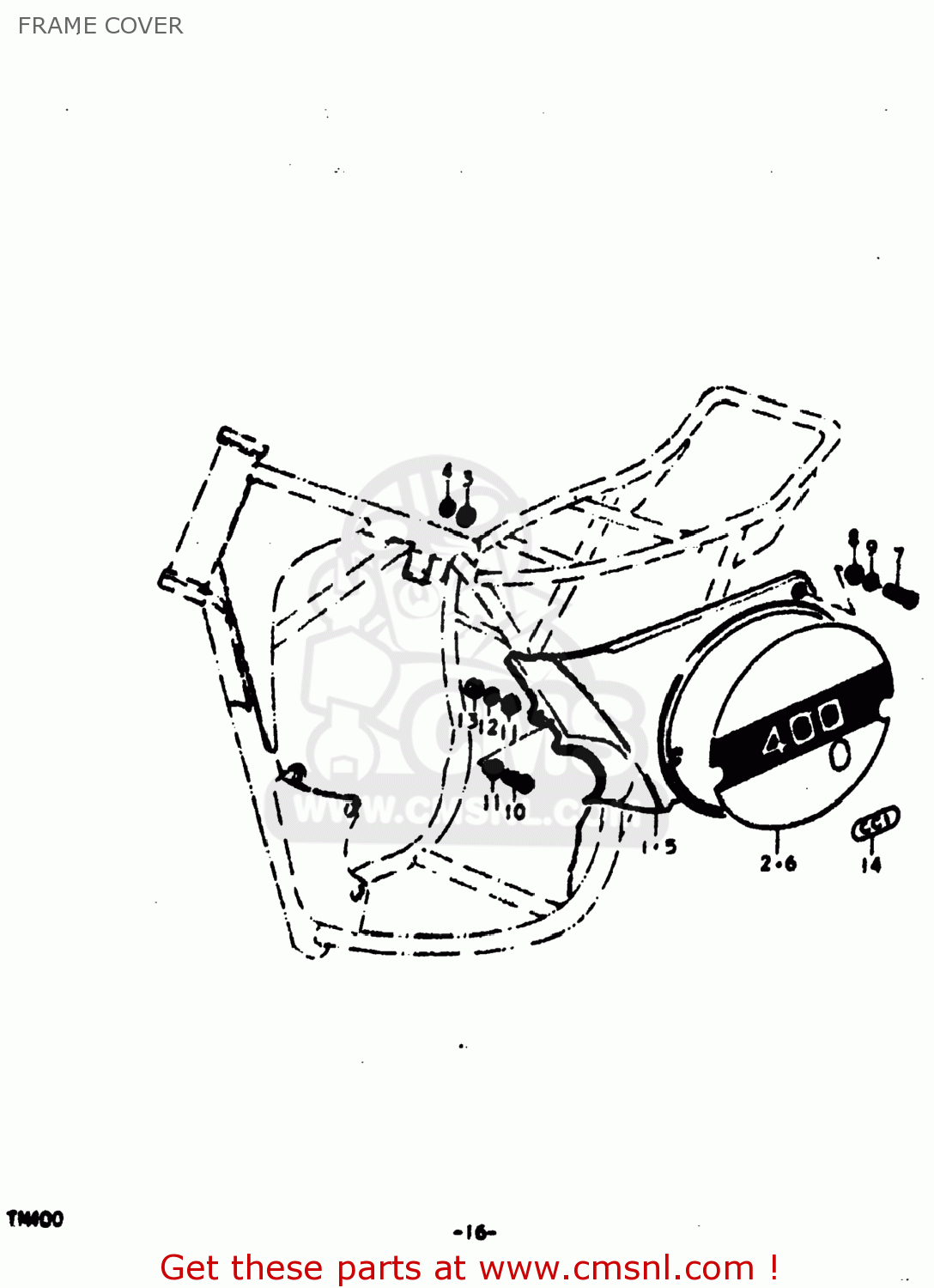

Frame cover diagram TM400 1975 (M) USA (E03)
FRAME COVER TM400 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711032100
ref: 1
COVER,FRAME,RIGHT
€ 20.50
2-1
6813132100
ref: 2-1
68131-32101
EMBLEM
€ 8.50
2-2
6813132101
ref: 2-2
EMBLEM
€ 8.50
3
0916905010
ref: 3
WASHER
€ 3.00
3
0916905010
ref: 3
WASHER
€ 3.00
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
4721032100
ref: 5
COVER,FRAME,LEFT
€ 22.50
6-1
6814132100
ref: 6-1
68141-32101
EMBLEM,FRAME COVER
€ 8.00
6-2
6814132101
ref: 6-2
EMBLEM,FRAME COVER
€ 8.00
7
0214106167
ref: 7
02142-06167
SCREW
€ 2.00
8
0916906010
ref: 8
WASHER
€ 3.00
9
0832121068
ref: 9
08321-01067
LOCK WASHER
€ 2.50
10
0214106167
ref: 10
02142-06167
SCREW
€ 2.00
11
0916906010
ref: 11
WASHER
€ 3.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0831111068
ref: 13
08310-00067
NUT
€ 2.50
14
6817126000
ref: 14
EMBLEM,CCIS
€ 4.00
