FRAME - OIL TANK

TM400 1975 (M) USA (E03)

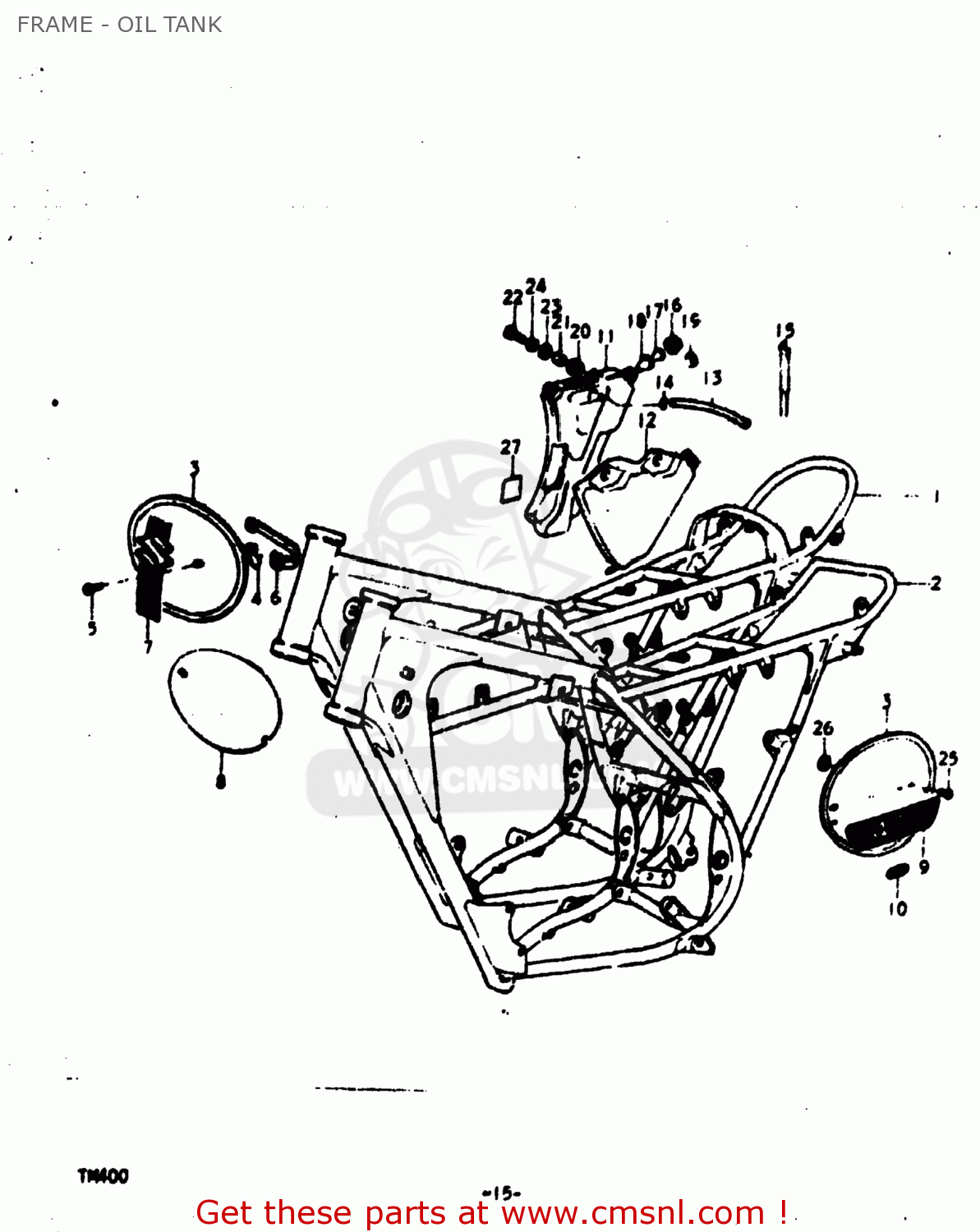

Frame - oil tank diagram TM400 1975 (M) USA (E03)

FRAME - OIL TANK TM400 1975 (M) USA (E03)
FRAME - OIL TANK TM400 1975 (M) USA (E03)
FRAME - OIL TANK TM400 1975 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4110016501019
ref: 1
FRAME
€ 256.00
2-1
4110032100019
ref: 2-1
FRAME
€ 0.00
2-2
4110032700019
ref: 2-2
FRAME
€ 0.00
3-1
9491016500
ref: 3-1
PLATE SET,FRONT
€ 19.00
3-1
9491016500
ref: 3-1
PLATE SET,FRONT
€ 19.00
3-2
9491116500
ref: 3-2
PLATE,NUMBER,FRONT
€ 10.00
3-3
9491216500
ref: 3-3
PLATE,NUMBER,FRONT
€ 10.00
4
9495028300
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
4
9495028300
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
5-1
0214106168
ref: 5-1
SCREW
€ 2.00
5-2
0214106127
ref: 5-2
02142-06127
SCREW 6X12
€ 1.50
6-1
0946200052
ref: 6-1
BAND
0946200052
€ 1.50
6-2
0946200055A
ref: 6-2
BAND
0946200055A
€ 4.00
7
6816916500
ref: 7
EMBLEM,FRONT NUMBER PLATE
€ 3.50
8
6816916500
ref: 8
EMBLEM,FRONT NUMBER PLATE
€ 3.50
9
6816916500
ref: 9
EMBLEM,FRONT NUMBER PLATE
€ 3.50
10
6817126000
ref: 10
EMBLEM,CCIS
6817126000
€ 4.00
11
4461116502
ref: 11
TANK,OIL
€ 31.50
11
4461116502
ref: 11
TANK,OIL
€ 31.50
12
4461116500
ref: 12
TANK,OIL
€ 15.50
13
0934405005
ref: 13
09351-50803-00B
HOSE
€ 10.00
14
0940108401
ref: 14
CLIP
0940108401
€ 1.50
14
0940108401
ref: 14
CLIP
0940108401
€ 1.50
15-1
0940711302
ref: 15-1
09407-18301
CLAMP
€ 6.00
15-1
0940711302
ref: 15-1
09407-18301
CLAMP
€ 6.00
15-2
0940709301
ref: 15-2
CLAMP
€ 6.00
15-2
0940709301
ref: 15-2
CLAMP
€ 6.00
16
5122151010
ref: 16
CAP, OIL TANK
5122151010
€ 3.50
17
5122216500
ref: 17
GASKET,OIL TANK CAP (NAS)
€ 3.50
18
5122316500
ref: 18
51222-16500
GASKET,OIL TANK CAP
€ 3.50
19
4466132100
ref: 19
51222-16500
GASKET,OIL TANK (NAS)
4466132100
€ 3.50
20
0932010008
ref: 20
CUSHION
0932010008
€ 2.50
21
0918006030
ref: 21
09180-06310
SPACER (6.8X10X10)
0918006030
€ 2.00
21
0918006030
ref: 21
09180-06310
SPACER (6.8X10X10)
0918006030
€ 2.00
22
0111206208
ref: 22
01500-06207
BOLT
€ 2.00
22
0111206208
ref: 22
01500-06207
BOLT
€ 2.00
23
0916006027
ref: 23
09160-06077
WASHER (6.5X20X1.2)
0916006027
€ 2.00
23
0916006027
ref: 23
09160-06077
WASHER (6.5X20X1.2)
0916006027
€ 2.00
24
0832121068
ref: 24
08321-01067
LOCK WASHER
0832121068
€ 2.50
24
0832121068
ref: 24
08321-01067
LOCK WASHER
0832121068
€ 2.50
25
0111206168
ref: 25
01500-06167
BOLT
€ 3.00
26
0916906010
ref: 26
WASHER
0916906010
€ 3.00
27
6832816500
ref: 27
LABEL
€ 1.50
