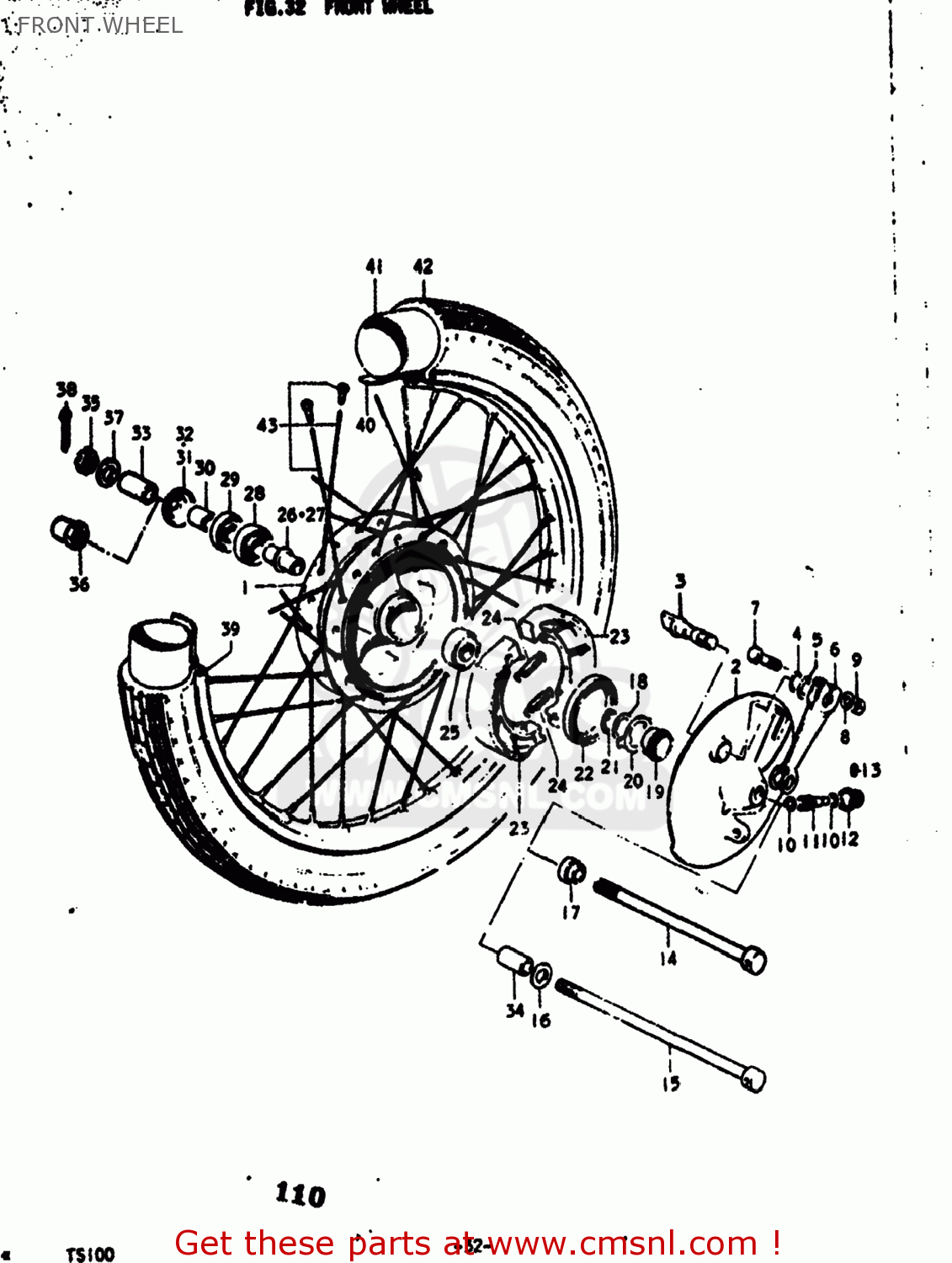

FRONT WHEEL

ref

part #

description

quantity

1-1

5411028000
ref: 1-1

HUB,FRONT

€ 95.50

1-2

5411028001
ref: 1-2
54110-28003

HUB,FRONT

€ 95.50

1-3

5411007001
ref: 1-3
54110-07003

HUB,FRONT

€ 137.50

1-4

5411016501
ref: 1-4
54110-16502

HUB,FRONT

€ 93.50

2-1

5421028000
ref: 2-1

PANEL,FRONT HUB

€ 38.00

2-2

5421027401
ref: 2-2

PANEL,FRONT HUB

€ 29.50

2-3

5421028400
ref: 2-3

PANEL,FRONT HUB

€ 69.00

2-4

5421028620
ref: 2-4

PANEL,FRONT HUB

€ 45.50

3-1

5444128001
ref: 3-1

CAM,FRONT BRAKE

€ 19.50

3-2

5444101002
ref: 3-2

CAM,FR BRAKE

€ 19.50

4

0928012001
ref: 4

O RING(D:2.5,ID:11.4)

€ 2.50

5

0916012011
ref: 5

WASHER(12.5X20X1)

€ 1.50

6-1

5445103602
ref: 6-1

LEVER,FRONT BRAKE CAM

€ 10.50

6-2

5445103002
ref: 6-2

LEVER,FR BRAKE CAM

€ 10.50

6-3

5445128400
ref: 6-3

LEVER,FRONT BRAKE CAM

€ 22.00

7

0910006050
ref: 7
09100-06150

BOLT

€ 1.50

8

0832221068
ref: 8
08322-01067

WASHER

€ 2.00

9

0831111068
ref: 9
08310-00067

NUT

€ 2.50

10

0916005001
ref: 10
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

11

5462128000
ref: 11
54621-28001

PINION,SPEEDOMETER

€ 13.00

12

5463201001
ref: 12

BUSH,METER GEAR OUTER

€ 9.00

13

0913403101
ref: 13
09134-03101-A05

SCREW

€ 1.50

14-1

5471107611
ref: 14-1
54711-07612

AXLE,FRONT

€ 22.00

14-2

5471125501
ref: 14-2

AXLE,FRONT

€ 12.00

14-3

5471116502
ref: 14-3
54711-16504

AXLE,FRONT

€ 29.50

15

5471128303
ref: 15

AXLE,FRONT

€ 22.50

16

0832221128
ref: 16
08322-01127

WASHER

€ 2.00

17

5475125500
ref: 17

SPACER,FRONT AXLE,LEFT

€ 3.00

18

0916018002
ref: 18

WASHER(18.5X24X1)

€ 2.00

19-1

5461128000
ref: 19-1
54611-28002

GEAR,SPEEDOMETER

€ 17.50

19-2

5461128001
ref: 19-2
54611-28002

GEAR,SPEEDOMETER

€ 17.50

20

5466107000
ref: 20

DRIVER,SPEEDOMETER GEAR

€ 3.00

21

0833111189
ref: 21

CIRCLIP

€ 2.00

22-1

0928543001
ref: 22-1
09283-43004

OIL SEAL (43X58X7)

€ 10.00

22-2

0928548001
ref: 22-2

SEAL,OIL(48X62X7)

€ 5.50

23-1

5441001004
ref: 23-1
54400-35860

SHOE,BRAKE

€ 39.00

23-2

5441001005
ref: 23-2
54400-35860

SHOE,BRAKE

€ 39.00

23-3

5441007002
ref: 23-3
54401-07810

SHOE,BRAKE

€ 35.00

24

0944307001
ref: 24
09443-07025

SPRING(L:34)

€ 2.50

25-1

0814362010
ref: 25-1
08143-62017

BEARING, LH

€ 11.50

25-2

0814363010
ref: 25-2
08143-63017

BEARING, RH

€ 14.50

26

0918012041
ref: 26
09180-12144

SPACER (12.6X19X52)

€ 4.50

27

5473007000
ref: 27

SPACER,FRONT HUB BEARING

€ 9.00

28-1

0811362010
ref: 28-1
08113-62017

BEARING

€ 11.00

28-2

0811363010
ref: 28-2

BEARING

€ 9.50

29-1

0928418002
ref: 29-1

OIL SEAL

€ 4.50

29-2

0928418001
ref: 29-2

OIL SEAL(17X38X5)

€ 12.50

30-1

0918012040
ref: 30-1

SPACER(12X18X16.4)

€ 4.50

30-2

0918012052
ref: 30-2

SPACER

€ 0.00

31-1

5489228000
ref: 31-1

DUST SEAL,FRONT HUB DRUM

€ 2.50

31-2

5489225500
ref: 31-2

DUST SEAL,FRONT HUB DRUM

€ 2.50

32

5489228400
ref: 32

DUST SEAL,FRONT HUB DRUM

€ 3.50

33

0918012061
ref: 33

SPACER (12X20X44)

€ 4.50

34

0918012062
ref: 34

SPACER (12X20X41)

€ 13.00

35

0831431128
ref: 35
08314-3112A

NUT 12MM

€ 2.00

36

5472125500
ref: 36

NUT,FRONT AXLE

€ 3.50

37

0832221128
ref: 37
08322-01127

WASHER

€ 2.00

38

0411130308
ref: 38
04111-3030A

COTTER PIN

€ 1.50

39-1

5531117021
ref: 39-1

RIM,FRONT WHEEL

€ 76.50

39-2

5531117022
ref: 39-2

RIM,FRONT WHEEL (1.40X19)

€ 76.50

40

5526129010
ref: 40
55261-15010

PROTECTOR,WHEEL,INNER

€ 2.50

41

5520029010
ref: 41

TUBE 2.75-19 070-483MM

€ 0.00

42

5510025600
ref: 42

TIRE 2.75-19 070-483MM

€ 134.00

43-1

5530028806
ref: 43-1
55320-28020

SPOKE SET,FRONT

€ 35.50

43-2

5530028840
ref: 43-2

SPOKE SET,FRONT

€ 29.00

all assemblies
