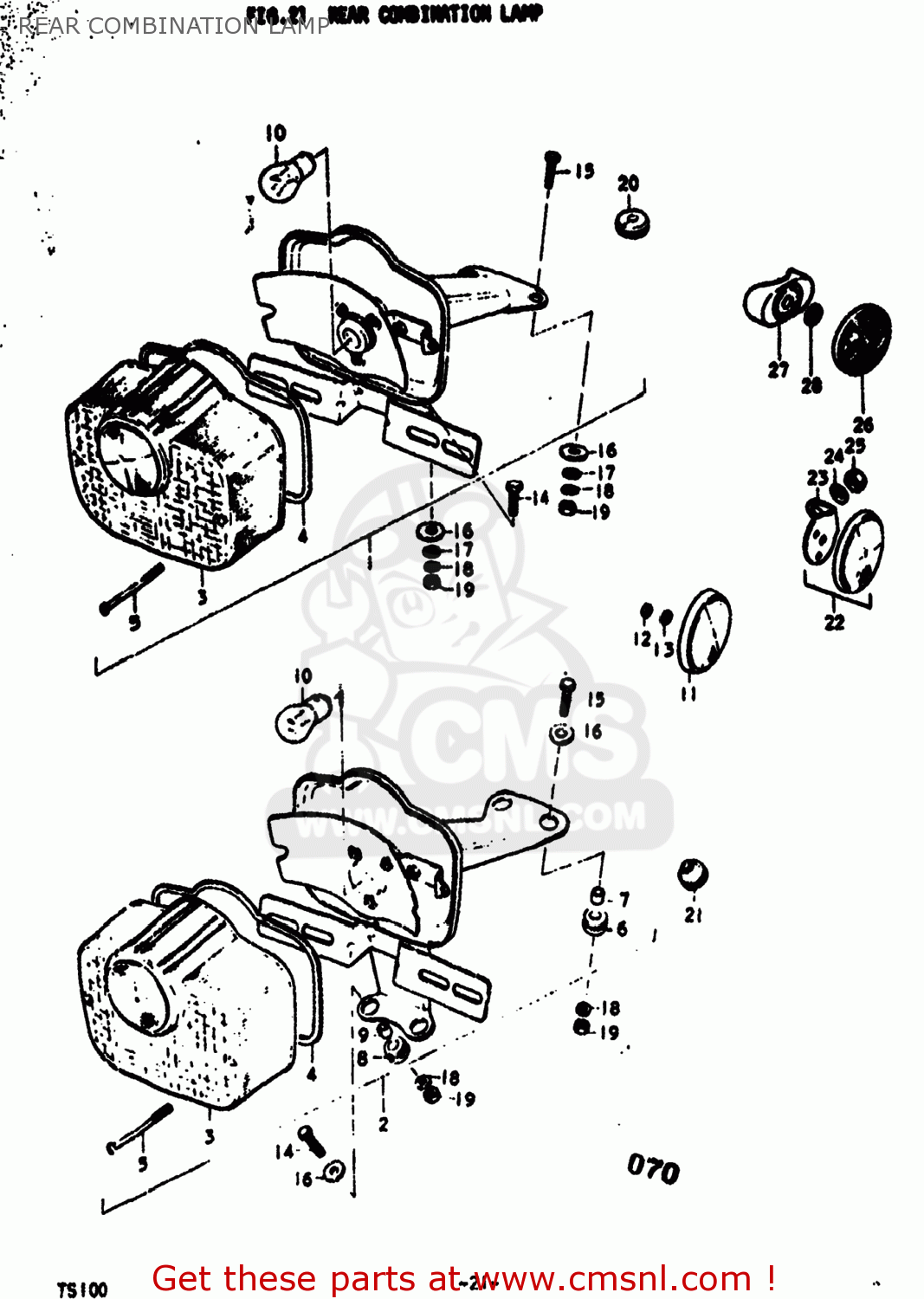

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571028691
ref: 1

LAMP ASSEMBLY,REAR COMBINATION

€ 40.50

2

3571025681
ref: 2
35710-25681-999

LAMP ASSEMBLY,REAR COMBINATION

€ 52.00

3

3571227630
ref: 3
35712-23011

LENS,REAR COMBINATION LAMP

€ 50.50

4

3571327630
ref: 4

GASKET (NAS)

€ 5.50

5

0211104558
ref: 5
02112-04558

SCREW

€ 1.50

6

3576515010
ref: 6

CUSHION

€ 9.00

7

3576615010
ref: 7
35766-37110

SPACER,REAR COMBINATION LAMP

€ 11.50

8

3576522210
ref: 8

CUSHION

€ 4.00

9

3576622210
ref: 9
35766-37120

SPACER,REAR COMBINATION LAMP

€ 2.50

10

0947106030
ref: 10

BULB(6V32/3CP,STANLEY)

€ 12.50

11

3597031610
ref: 11

REFLECTOR,REFLEX

€ 19.50

12

0831111058
ref: 12
08310-00057

NUT

€ 2.50

13

0832121058
ref: 13
08321-0105A

LOCK WASHER

€ 2.00

14

0111206208
ref: 14
01500-06207

BOLT

€ 2.00

15

0111206258
ref: 15
01500-06257

BOLT

€ 2.00

16

0916006020
ref: 16
09160-06066

WASHER

€ 2.00

17

0832211068
ref: 17
08322-0106B

WASHER 6MM

€ 2.00

18

0832121068
ref: 18
08321-01067

LOCK WASHER

€ 2.50

19

0831111068
ref: 19
08310-00067

NUT

€ 2.50

20

0930807002
ref: 20

GROMMET

€ 2.50

21

0930807005
ref: 21

GROMMET

€ 1.50

22

3595025610
ref: 22
35950-25611

REFLEX REFLECTOR ASSEMBLY

€ 4.50

23

3595416400
ref: 23

SPACER

€ 5.50

24

0832121108
ref: 24
08321-01107

LOCK WASHER

€ 2.00

25

0831232108
ref: 25
08310-00107

NUT

€ 2.50

26

3595031010
ref: 26
35950-49080

REFLEX REFLECTOR ASSEMBLY

€ 17.50

27

3599529000
ref: 27

SPACER

€ 14.00

28

0916006027
ref: 28
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

all assemblies
