CARBURETOR
TS125 1974 (L) USA (E03)

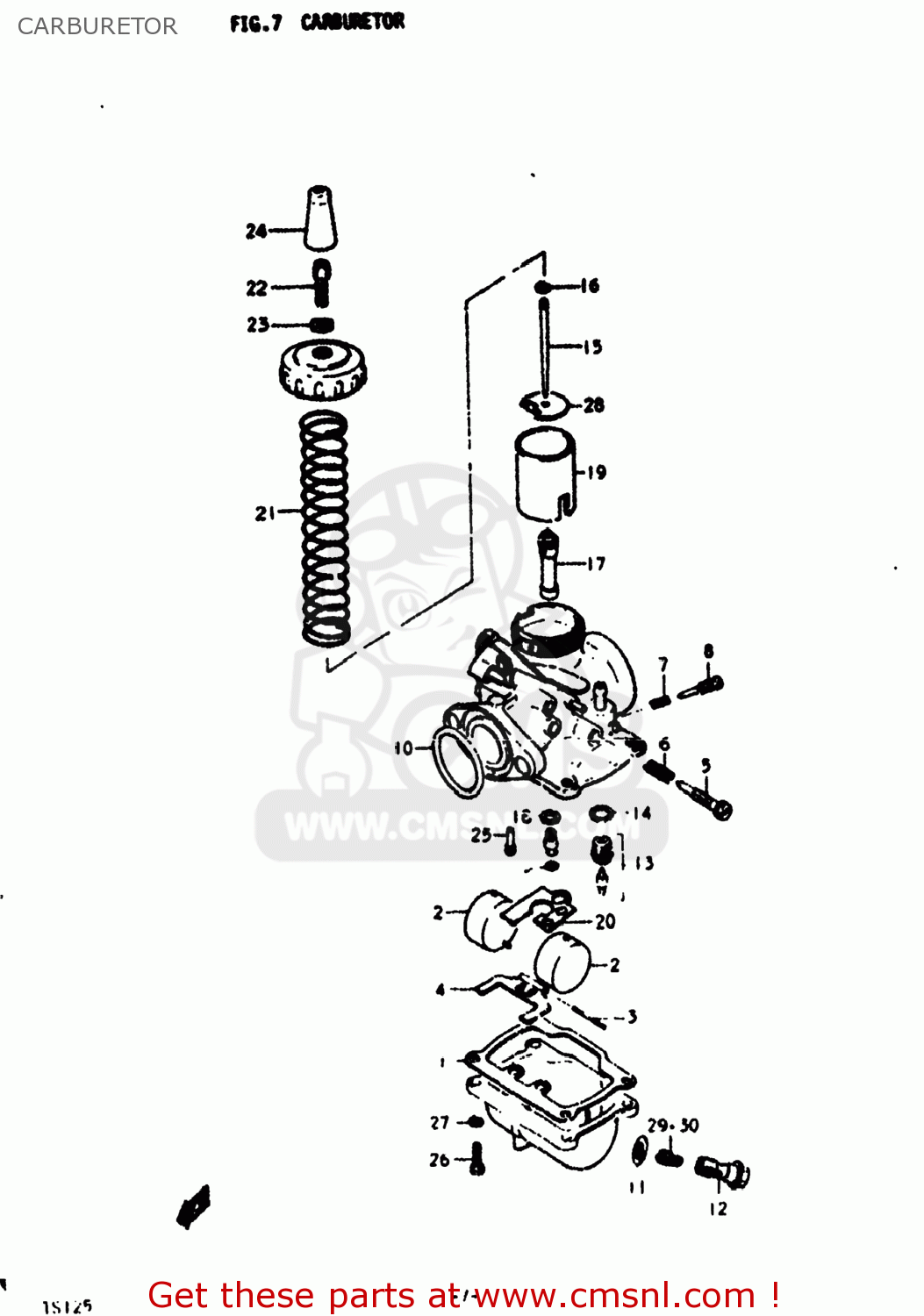

Carburetor diagram TS125 1974 (L) USA (E03)
CARBURETOR TS125 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
1320028603
ref: 0-1
CARBURETOR ASSEMBLY
€ 112.00
0-2
1320028111
ref: 0-2
CARBURETOR ASSEMBLY
€ 218.50
1
1325111010
ref: 1
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
2
1325218620
ref: 2
FLOAT
€ 27.50
3-1
1325411010
ref: 3-1
PIN,FLOAT
€ 3.00
3-2
1325435013
ref: 3-2
13254-01010
PIN,FLOAT
€ 3.00
4
1325328010
ref: 4
ARM,FLOAT
€ 3.00
5
1326728110
ref: 5
SCREW,THROTTLE STOP
€ 6.00
6
1326803110
ref: 6
SPRING,THROTTLE SCREW
€ 3.50
7
1326801010
ref: 7
SPRING
€ 3.50
8
1326915010
ref: 8
SCREW,PILOT AIR
€ 10.50
9
1329428010
ref: 9
O RING
€ 6.50
10
1329528010
ref: 10
O RING
€ 3.50
11-1
1333297010
ref: 11-1
WASHER
€ 3.00
11-2
1333297015
ref: 11-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
12
1333397010
ref: 12
HOLDER
€ 10.00
13
1337028110
ref: 13
VALVE ASSY,NEEDLE
€ 33.50
14
1339258600
ref: 14
GASKET,VALVE SEAT (NAS)
€ 2.00
14
1339258600
ref: 14
GASKET,VALVE SEAT (NAS)
€ 2.00
15
1338333010
ref: 15
NEEDLE,JET
€ 18.00
16
1339410010
ref: 16
CLIP
€ 4.50
17
0949400102
ref: 17
JET,NEEDLE
€ 10.50
18
1338203110
ref: 18
WASHER
€ 2.50
19
1355128010
ref: 19
VALVE,THROTTLE
€ 50.50
20
1325997010
ref: 20
PLATE
€ 3.50
21
1357397010
ref: 21
13573-30900
SPRING, THROTTLE VALVE
€ 6.00
22
1357703010
ref: 22
13577-48110
ADJUSTER,CABLE
€ 8.00
23
1366116600
ref: 23
NUT
€ 5.00
24
1368116601
ref: 24
CAP
€ 7.00
25
0949225003
ref: 25
09492-25005
JET
€ 6.50
26
0211104168
ref: 26
02112-0416A
SCREW
€ 1.00
27
0832121048
ref: 27
08321-0104A
LOCK WASHER
€ 2.00
28
1358128010
ref: 28
SEAT,THROTTLE VALVE SPRING
€ 6.50
29-1
0949190003
ref: 29-1
09491-90007
JET
€ 10.50
29-2
0949185004
ref: 29-2
09491-85008
JET
€ 8.50
30-1
0949180005
ref: 30-1
JET
€ 9.50
30-2
0949182002
ref: 30-2
09491-82003
JET
€ 8.50
30-3
0949185004
ref: 30-3
09491-85008
JET
€ 8.50
30-4
0949187001
ref: 30-4
09491-87005
JET
€ 6.50
30-5
0949190003
ref: 30-5
09491-90007
JET
€ 10.50
30-6
0949192001
ref: 30-6
09491-92004
JET
€ 8.50
30-7
0949195003
ref: 30-7
09491-95005
JET
€ 8.50
30-8
0949197001
ref: 30-8
09491-97003
JET
€ 8.50
