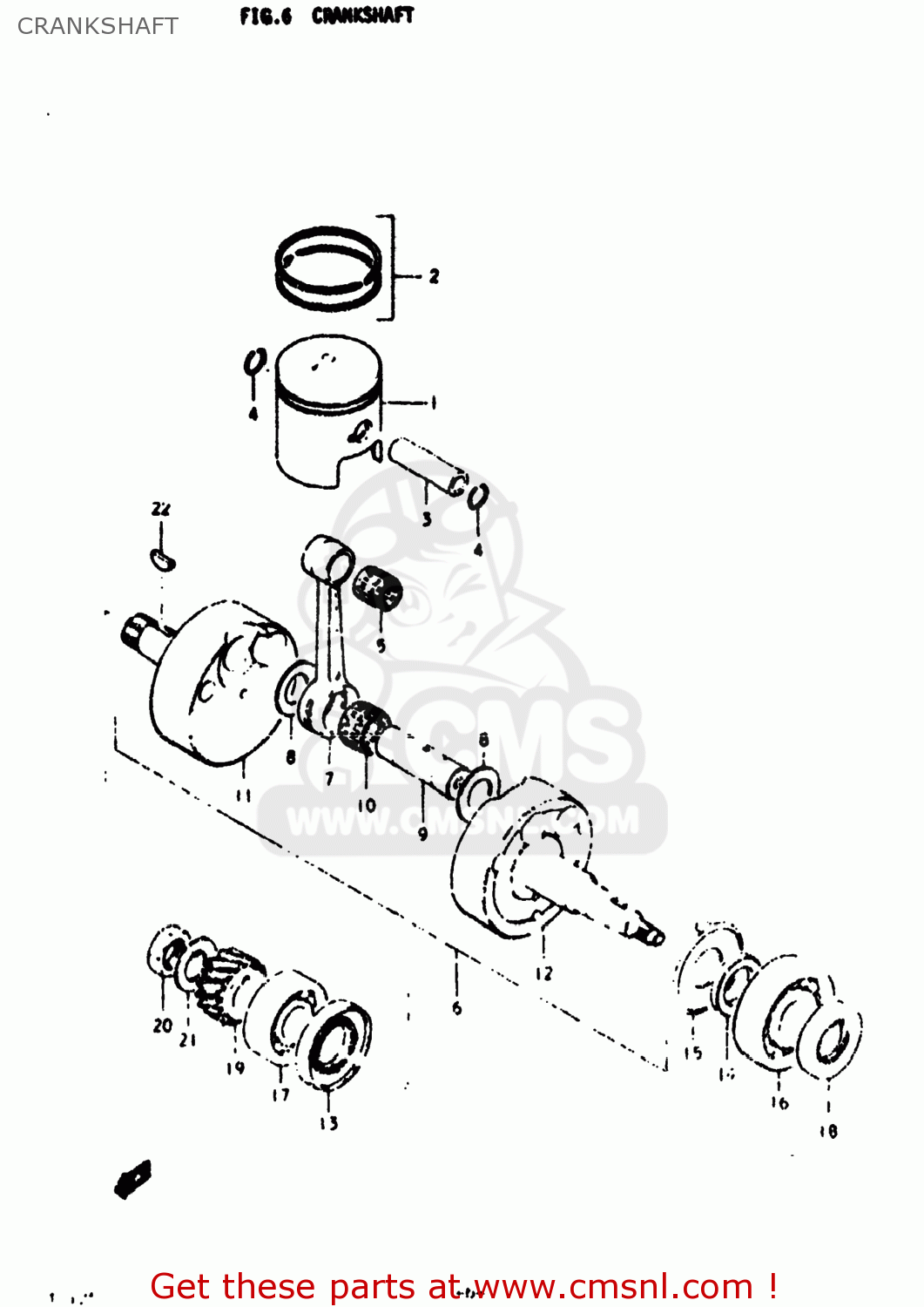

CRANKSHAFT

ref

part #

description

quantity

1-1

1211028000
ref: 1-1
12110-48001

PISTON

€ 99.00

1-2

1211028003
ref: 1-2
12110-48001

PISTON

€ 99.00

1-3

1211028710
ref: 1-3
12100-48000-050

PISTON

€ 105.00

1-4

1211028713
ref: 1-4
12100-48000-050

PISTON

€ 105.00

1-5

1211028723
ref: 1-5
12100-48000-100

PISTON

€ 80.50

1-6

1211028723
ref: 1-6
12100-48000-100

PISTON

€ 80.50

2-1

1214028010
ref: 2-1
12140-28021

RING SET,PISTON

€ 41.50

2-2

1214028710
ref: 2-2
12140-28011-050

RING SET,PISTON

€ 42.00

2-3

1214028720
ref: 2-3
12140-28011-100

RING SET,PISTON

€ 60.50

3

1215128000
ref: 3
12151-05200

PIN,PISTON

€ 6.50

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314006
ref: 5
09263-14022

BEARING

€ 10.00

6-1

1220028300
ref: 6-1

CRANKSHAFT ASSEMBLY

€ 195.50

6-2

1220028301
ref: 6-2

CRANKSHAFT ASSEMBLY

€ 195.50

6-3

1220028302
ref: 6-3

CRANKSHAFT ASSEMBLY

€ 195.50

7

1216112000
ref: 7
12161-39300

CONNECTING ROD

€ 54.50

8

0916019001
ref: 8

WASHER(19X32X1)

€ 3.50

9

1221128000
ref: 9

PIN,CRANK

€ 33.50

10

0926319007
ref: 10
09263-19009

BEARING

€ 15.00

11-1

1222128001
ref: 11-1

CRANKSHAFT

€ 64.50

11-2

1222128002
ref: 11-2
12221-28003

CRANKSHAFT

€ 64.50

12-1

1226128002
ref: 12-1
12261-41001

CRANKSHAFT,LEFT

€ 76.00

12-2

1226128003
ref: 12-2
12261-41001

CRANKSHAFT,LEFT

€ 76.00

12-3

1226141000
ref: 12-3
12261-41001

CRANKSHAFT,LEFT

€ 76.00

13

0928326007
ref: 13

SEAL,OIL(26X52X8)

€ 7.50

14

0918025041
ref: 14

SPACER

€ 4.50

15

1251128002
ref: 15

PLATE,CRANKSHAFT OIL GUIDE

€ 7.50

16

0926925013
ref: 16

BEARING(25X62X17)

€ 41.50

17

0926220009
ref: 17
09262-20073

BEARING

€ 19.00

18

0928325037
ref: 18
09283-25066

OIL SEAL

€ 7.00

19

2111128000
ref: 19
21111-28001

GEAR,PRIMARY DRIVE

€ 42.00

20

0914018002
ref: 20

NUT

€ 3.50

21

0916618001
ref: 21

WASHER

€ 3.00

22

0834131059
ref: 22

KEY

€ 3.00
