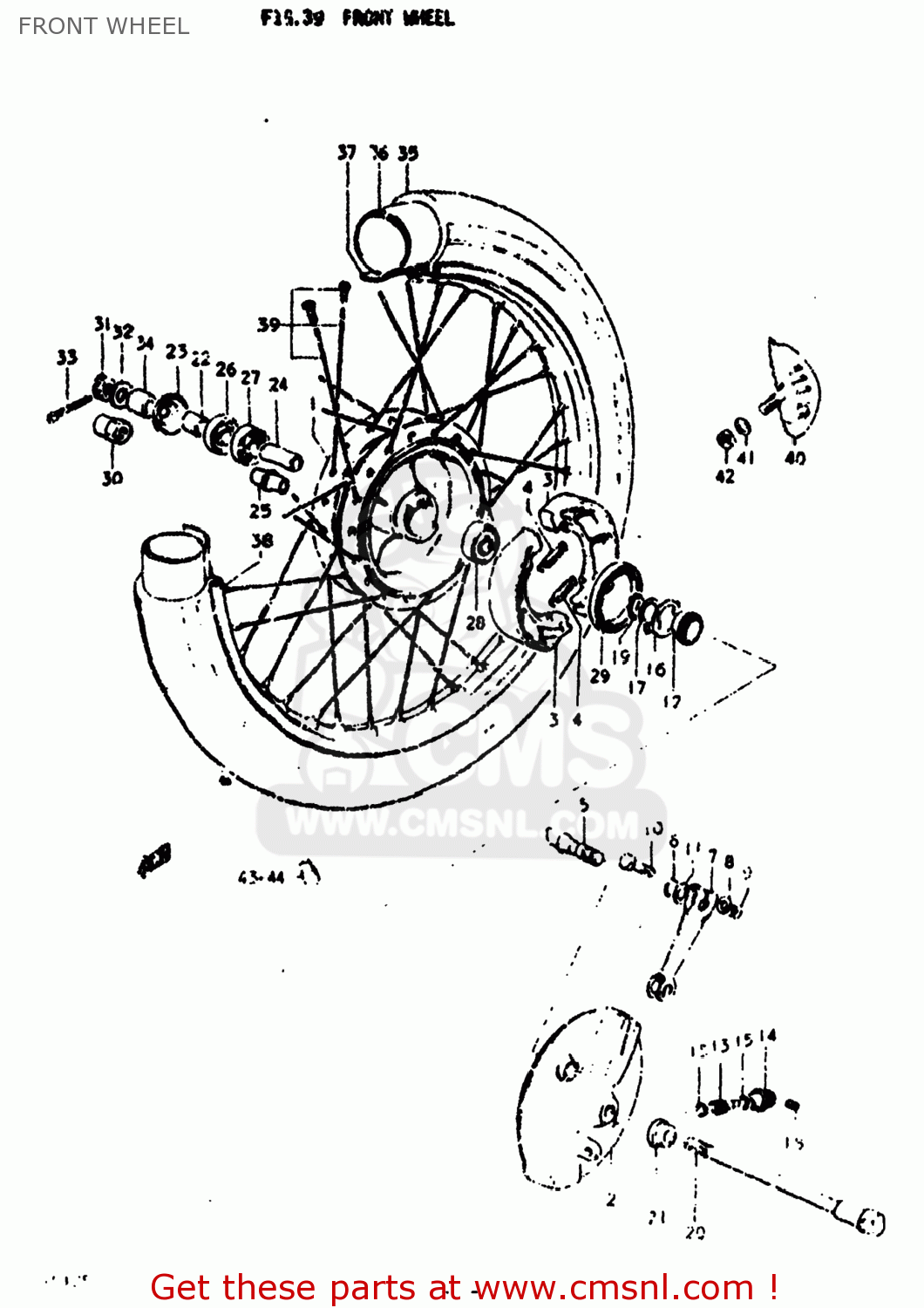

FRONT WHEEL

ref

part #

description

quantity

1-1

5411028001
ref: 1-1
54110-28003

HUB,FRONT

€ 95.50

1-2

5411007001
ref: 1-2
54110-07003

HUB,FRONT

€ 137.50

1-3

5411016501
ref: 1-3
54110-16502

HUB,FRONT

€ 93.50

2-1

5421028002
ref: 2-1

PANEL,FRONT HUB

€ 55.50

2-2

5421028400
ref: 2-2

PANEL,FRONT HUB

€ 69.00

2-3

5421028620
ref: 2-3

PANEL,FRONT HUB

€ 45.50

3-1

5441001005
ref: 3-1
54400-35860

SHOE,BRAKE

€ 39.00

3-2

5441007002
ref: 3-2
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444128001
ref: 5-1

CAM,FRONT BRAKE

€ 19.50

5-2

5444107001
ref: 5-2

CAM,FRONT BRAKE

€ 19.50

5-3

5444101002
ref: 5-3

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7-1

5445103002
ref: 7-1

LEVER,FR BRAKE CAM

€ 10.50

7-2

5445128400
ref: 7-2

LEVER,FRONT BRAKE CAM

€ 22.00

8

0832221068
ref: 8
08322-01067

WASHER

€ 2.00

9

0831111068
ref: 9
08310-00067

NUT

€ 2.50

10

0910006050
ref: 10
09100-06150

BOLT

€ 1.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

12-1

5461128001
ref: 12-1
54611-28002

GEAR,SPEEDOMETER

€ 17.50

12-2

5461128401
ref: 12-2
54611-28402

GEAR,SPEEDOMETER

€ 26.00

13-1

5462128000
ref: 13-1
54621-28001

PINION,SPEEDOMETER

€ 13.00

13-2

5462128400
ref: 13-2
54621-28401

PINION,SPEEDOMETER

€ 15.50

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916010002
ref: 17
09160-10094

WASHER (10.5X30X3.2)

€ 3.50

18

0913403101
ref: 18
09134-03101-A05

SCREW

€ 1.50

19

0833111189
ref: 19

CIRCLIP

€ 2.00

20-1

5471128000
ref: 20-1

AXLE,FRONT

€ 27.00

20-2

5471128401
ref: 20-2

AXLE,FRONT

€ 24.00

20-3

5471128303
ref: 20-3

AXLE,FRONT

€ 22.50

21-1

5475125500
ref: 21-1

SPACER,FRONT AXLE,LEFT

€ 3.00

21-2

0918012062
ref: 21-2

SPACER (12X20X41)

€ 13.00

22-1

0918012040
ref: 22-1

SPACER(12X18X16.4)

€ 4.50

22-2

0918012061
ref: 22-2

SPACER (12X20X44)

€ 4.50

23-1

5489228001
ref: 23-1

DUST SEAL,FRONT HUB DRUM

€ 2.50

23-2

5489228400
ref: 23-2

DUST SEAL,FRONT HUB DRUM

€ 3.50

24

0918012041
ref: 24
09180-12144

SPACER (12.6X19X52)

€ 4.50

25

5473007000
ref: 25

SPACER,FRONT HUB BEARING

€ 9.00

26-1

0928418002
ref: 26-1

OIL SEAL

€ 4.50

26-2

0928418001
ref: 26-2

OIL SEAL(17X38X5)

€ 12.50

27-1

0811362010
ref: 27-1
08113-62017

BEARING

€ 11.00

27-2

0811363010
ref: 27-2

BEARING

€ 9.50

28-1

0814362010
ref: 28-1
08143-62017

BEARING, LH

€ 11.50

28-2

0811363010
ref: 28-2

BEARING

€ 9.50

29-1

0928543001
ref: 29-1
09283-43004

OIL SEAL (43X58X7)

€ 10.00

29-2

0928543001
ref: 29-2
09283-43004

OIL SEAL (43X58X7)

€ 10.00

30

5472136000
ref: 30

NO PRODUCT DESCRIPTION AVAILABLE

€ 7.00

31

0831431128
ref: 31
08314-3112A

NUT 12MM

€ 2.00

32

0832221128
ref: 32
08322-01127

WASHER

€ 2.00

32

0832221128
ref: 32
08322-01127

WASHER

€ 2.00

33

0411130308
ref: 33
04111-3030A

COTTER PIN

€ 1.50

34

0918012040
ref: 34

SPACER(12X18X16.4)

€ 4.50

35-1

5510025600
ref: 35-1

TIRE 2.75-19 070-483MM

€ 134.00

35-2

5510028600
ref: 35-2

TIRE,FRONT

€ 0.00

36-1

5520028030
ref: 36-1
55200-29010

TUBE,INNER

€ 0.00

36-2

5520016510
ref: 36-2

TUBE

€ 32.50

37-1

5526128030
ref: 37-1

PROTECTOR,WHEEL,INNER

€ 0.00

37-2

5526116510
ref: 37-2
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

38-1

5531129600
ref: 38-1

RIM,FRONT WHEEL

€ 83.50

38-2

5531128701
ref: 38-2

RIM,FRONT WHEEL

€ 83.50

38-3

5531128420
ref: 38-3

RIM,FRONT WHEEL (1.60X21)

€ 112.50

39-1

5530028806
ref: 39-1
55320-28020

SPOKE SET,FRONT

€ 35.50

39-2

5530028830
ref: 39-2

SPOKE SET,FRONT

€ 33.00

40

6527028600
ref: 40

STOPPER,BEAD

€ 26.50

41

0832211088
ref: 41
08322-01087

WASHER

€ 2.00

42

0831211088
ref: 42
08310-00087

NUT

€ 2.00

43

5541211000
ref: 43
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

44

5541130000
ref: 44

BALANCER,WHEEL (50G)

€ 4.50

all assemblies
