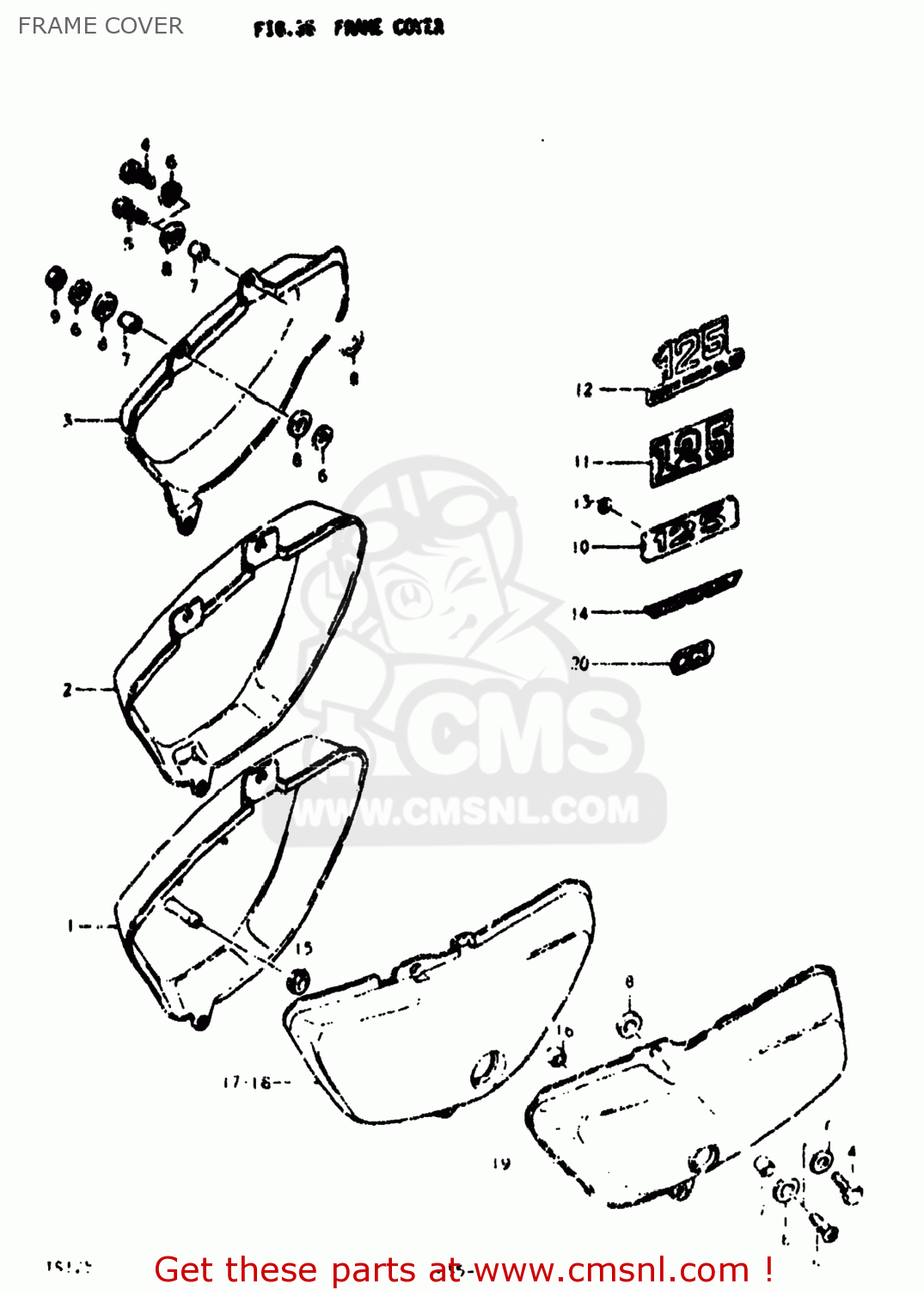

FRAME COVER

ref

part #

description

quantity

1-1

4711128600293
ref: 1-1

COVER,FRAME,RIGHT

€ 64.50

1-2

4711128601293
ref: 1-2

COVER,FRAME,RIGHT

€ 64.50

2-1

4711128602293
ref: 2-1
47111-28602-019

COVER,FRAME,RIGHT

€ 64.50

2-2

4711128602279
ref: 2-2
47111-28602-019

COVER,FRAME,RIGHT

€ 64.50

2-3

4711128602737
ref: 2-3
47111-28602-019

COVER,FRAME,RIGHT

€ 64.50

3-1

471112861000N
ref: 3-1
47111-28610-019

COVER,FRAME,RIGHT

€ 41.50

3-2

4711128610293
ref: 3-2
47111-28610-019

COVER,FRAME,RIGHT

€ 41.50

4

0912806005
ref: 4
02162-0616B

SCREW

€ 2.50

5

0214106168
ref: 5

SCREW

€ 2.00

6

0632221068
ref: 6

WASHER

€ 0.00

6

0832221068
ref: 6
08322-01067

WASHER

€ 2.00

7

0918006044
ref: 7
09180-06248

SPACER (6.1X8X9.5)

€ 2.50

8

0932007005
ref: 8

CUSHION

€ 3.00

9

0831111068
ref: 9
08310-00067

NUT

€ 2.50

10

6814128600
ref: 10

EMBLEM,FRAME COVER

€ 29.50

11-1

6813128400719
ref: 11-1

EMBLEM

€ 4.00

11-2

6813128400993
ref: 11-2

EMBLEM

€ 3.00

11-3

6815128620538
ref: 11-3

EMBLEM A

€ 0.00

12

6813128630538
ref: 12

EMBLEM

€ 3.50

13

0914805004
ref: 13
09148-05013

NUT

€ 1.50

14-1

6836326200
ref: 14-1

LABEL,COMPANY NAME

€ 7.50

14-2

6836326300
ref: 14-2

LABEL (COMPANY NAME)

€ 2.50

15

0930810001
ref: 15

GROMMET

€ 2.00

16

0932003002
ref: 16

CUSHION

€ 2.00

17

4721128600293
ref: 17

COVER,FRAME,LEFT

€ 83.00

18-1

4721128601293
ref: 18-1
47211-28601-019

COVER,FRAME,LEFT

€ 83.00

18-2

4721128601279
ref: 18-2
47211-28601-019

COVER,FRAME,LEFT

€ 83.00

18-3

4721128601737
ref: 18-3
47211-28601-019

COVER,FRAME,LEFT

€ 83.00

19-1

472112861000N
ref: 19-1
47211-28610-019

COVER,FRAME,LEFT

€ 30.50

19-2

4721128610293
ref: 19-2
47211-28610-019

COVER,FRAME,LEFT

€ 30.50

20

6817126000
ref: 20

EMBLEM,CCIS

€ 4.00
