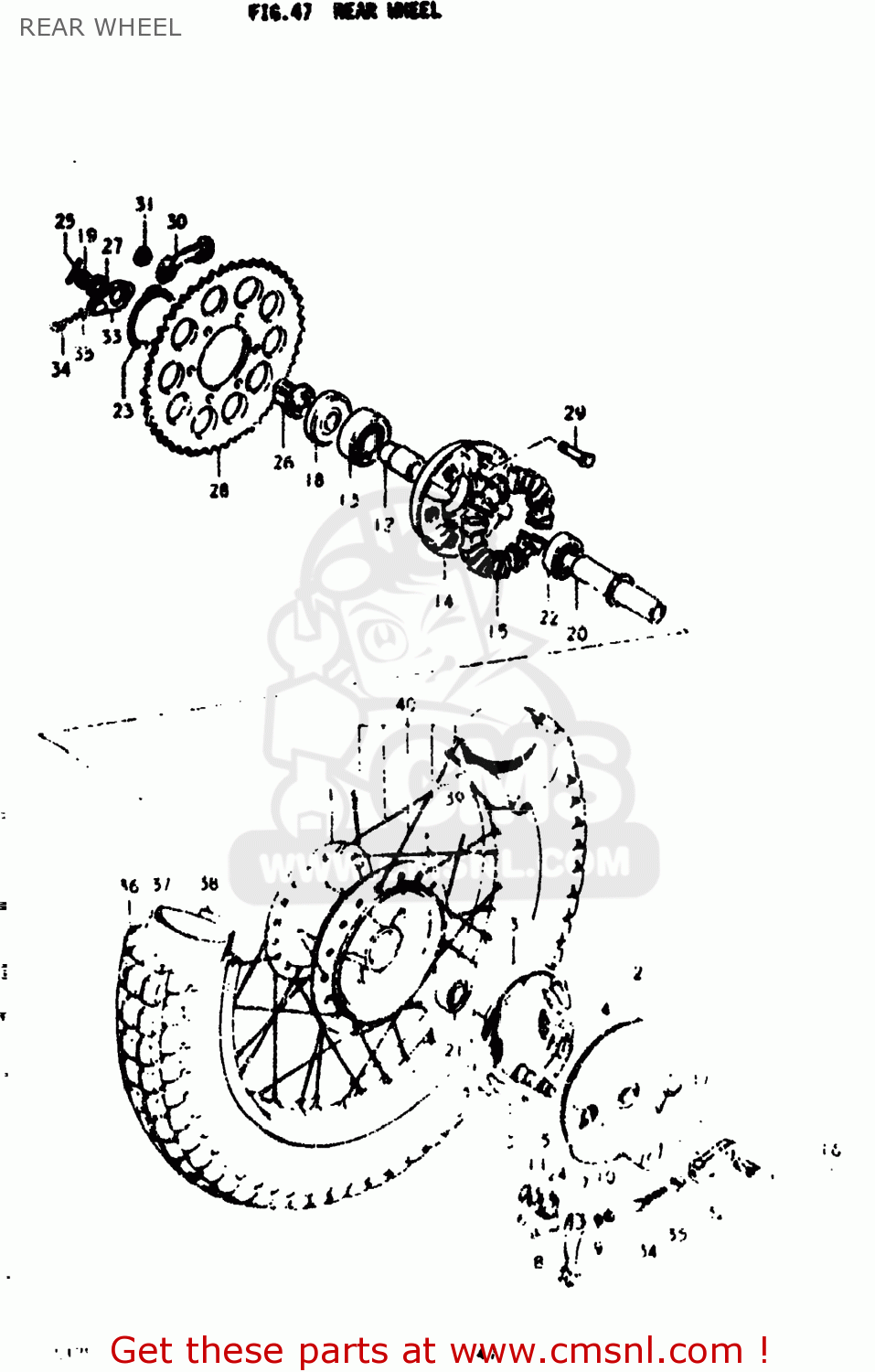

REAR WHEEL

ref

part #

description

quantity

1-1

6411028001
ref: 1-1

HUB,REAR

€ 90.00

1-2

6411028002
ref: 1-2

HUB,REAR

€ 90.00

1-3

6411028400
ref: 1-3

HUB,REAR

€ 151.50

1-4

6411028610
ref: 1-4

HUB,REAR

€ 118.50

2-1

6421028002
ref: 2-1

PANEL,REAR HUB

€ 106.50

2-2

6421025500
ref: 2-2
64210-28004

PANEL,REAR HUB

€ 106.50

2-3

6421028003
ref: 2-3
64210-28004

PANEL,REAR HUB

€ 106.50

2-3

6421028003
ref: 2-3
64210-28004

PANEL,REAR HUB

€ 106.50

2-4

6421028305
ref: 2-4
64210-28004

PANEL,REAR HUB

€ 106.50

3

5441007002
ref: 3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5

5444101007
ref: 5

CAM, BRAKE

€ 0.00

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7-1

6445128000
ref: 7-1

LEVER,REAR BRAKE CAM

€ 14.50

7-2

6445128600
ref: 7-2

LEVER,REAR BRAKE CAM

€ 15.50

8

0910006050
ref: 8
09100-06150

BOLT

€ 1.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831111068
ref: 10
08310-00067

NUT

€ 2.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

12

6473328400
ref: 12

SPACER,REAR HUB BEARING

€ 9.00

13

0812362040
ref: 13
08123-62047

BEARING

€ 17.00

14-1

6461028001
ref: 14-1

DRUM,REAR SPROCKET MOUNT

€ 65.00

14-2

6461128400
ref: 14-2

DRUM,REAR SPROCKET MOUNT

€ 34.50

14-3

6461128600
ref: 14-3

DRUM,REAR SPROCKET MOUNT

€ 28.00

15-1

6465028000
ref: 15-1
64650-28002

CUSHION,REAR DRUM

€ 15.00

15-2

6465028002
ref: 15-2

ABSORBER,RR WHEEL HUB SHOCK

€ 15.00

15-3

6465028400
ref: 15-3

ABSORBER,RR WHEEL HUB SHOCK

€ 17.00

16

6471128001
ref: 16
64711-4130V

AXLE,REAR

€ 78.50

17-1

0918015010
ref: 17-1
09180-15038

SPACER

€ 7.00

17-2

0918015038
ref: 17-2

SPACER(15.2X22X26)

€ 7.00

18-1

6475028000
ref: 18-1

SPACER,RR AXLE,L

€ 11.50

18-2

6475028400
ref: 18-2

SPACER,REAR AXLE,RIGHT

€ 9.50

19

0831431128
ref: 19
08314-3112A

NUT 12MM

€ 2.00

20-1

6473028000
ref: 20-1

SPACER,REAR HUB BEARING

€ 9.00

20-2

0918016039
ref: 20-2
09180-16043

SPACER

€ 23.50

21

0814362020
ref: 21
08143-62027

BEARING

€ 12.50

21

0814362020
ref: 21
08143-62027

BEARING

€ 12.50

22

0812363020
ref: 22
08123-63027

BEARING

€ 19.00

23

0833111558
ref: 23
08331-31558

CIRCLIP

€ 4.00

24

0944827003
ref: 24

SPRING

€ 7.00

25

0411130308
ref: 25
04111-3030A

COTTER PIN

€ 1.50

26-1

6479128000
ref: 26-1

SPACER,REAR AXLE

€ 12.00

26-2

6479128001
ref: 26-2

SPACER,CHAIN ADJUSTER,L

€ 12.00

27-1

0914018001
ref: 27-1
09140-18501

NUT

€ 3.00

27-2

0914018002
ref: 27-2

NUT

€ 3.50

28-1

6451128000
ref: 28-1

SPROCKET,REAR

€ 67.50

28-2

6451128700
ref: 28-2

SPROCKET,RR

€ 57.00

28-3

6451128710
ref: 28-3
64511-28770

SPROCKET,REAR

€ 41.50

29-1

0910508001
ref: 29-1

BOLT(8X33.5)

€ 2.50

29-2

0910508006
ref: 29-2

BOLT(8X32)

€ 2.00

29-3

0910508007
ref: 29-3

BOLT(8X30)

€ 2.50

30

0916908013
ref: 30

WASHER

€ 2.50

31

0831211088
ref: 31
08310-00087

NUT

€ 2.00

32-1

6141028001A
ref: 32-1

ADJUSTER,CHAIN

€ 8.00

32-2

6141028002A
ref: 32-2
61410-28004

ADJUSTER,CHAIN

€ 8.00

33-1

6142028001
ref: 33-1

ADJUSTER,CHAIN

€ 11.00

33-2

6142028002
ref: 33-2
61420-28003

ADJUSTER,CHAIN

€ 11.00

34-1

0910006065
ref: 34-1

BOLT(6X38)

€ 2.50

34-2

0910008099
ref: 34-2
09100-08146

BOLT

€ 2.50

35-1

0831211068
ref: 35-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

35-2

0831211088
ref: 35-2
08310-00087

NUT

€ 2.00

36

6510028610
ref: 36

TIRE

€ 0.00

37

6520018010
ref: 37
65200-44AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

38-1

6526111010
ref: 38-1
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

38-2

6526111010
ref: 38-2
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

39-1

6531129601
ref: 39-1

RIM,REAR WHEEL

€ 46.00

39-2

6531129602
ref: 39-2

RIM,REAR WHEEL

€ 38.50

39-3

6531129022
ref: 39-3

RIM,REAR WHEEL

€ 105.50

40-1

6530028807
ref: 40-1

SPOKE SET,REAR

€ 37.00

40-2

6530028880
ref: 40-2
65320-28021

SPOKE SET,REAR

€ 31.50
