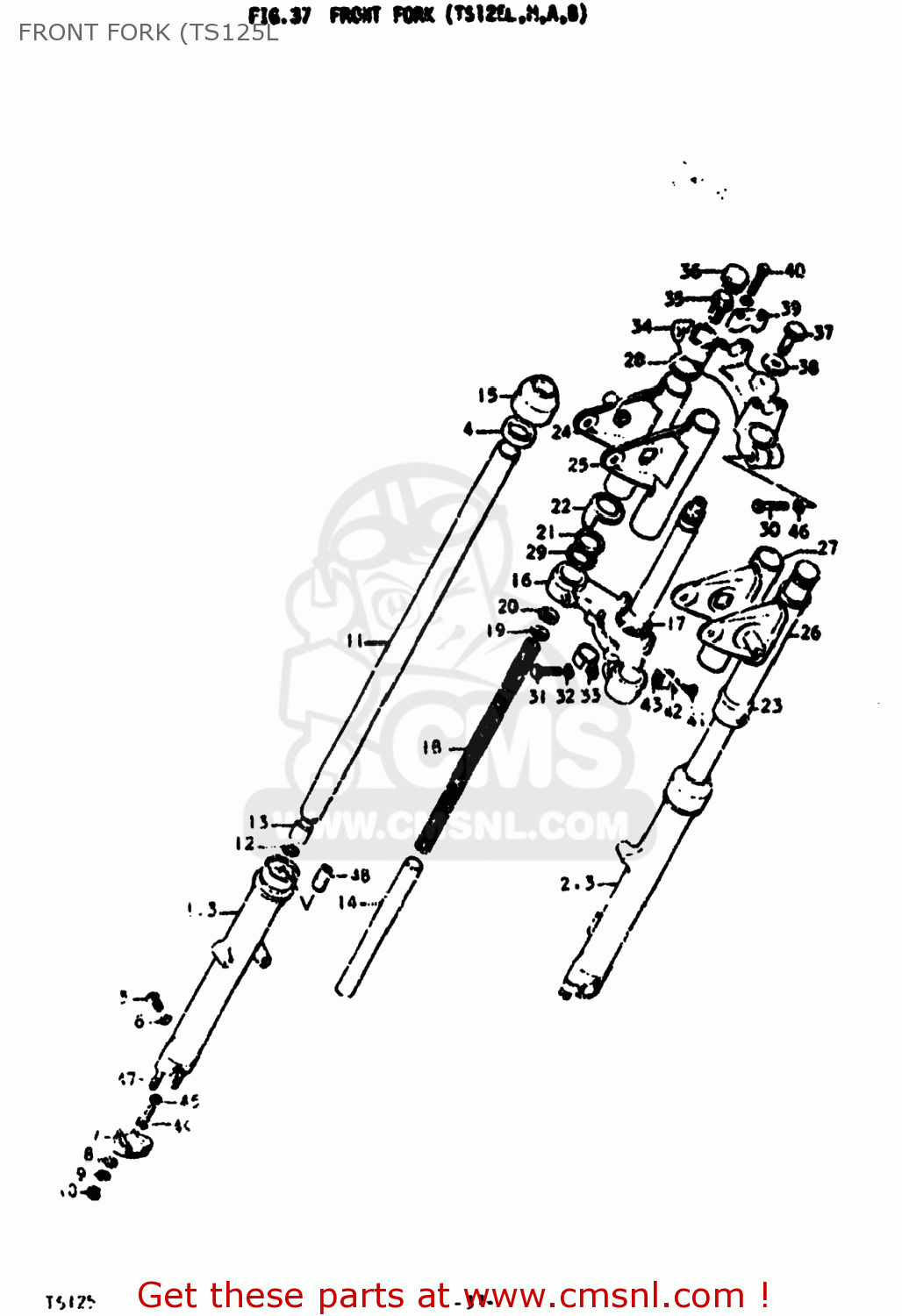

FRONT FORK (TS125L

ref

part #

description

quantity

0

5110028410019
ref: 0

DAMPER SET

€ 267.00

0-1

5110028410126
ref: 0-1

DAMPER SET

€ 267.00

0-2

5110028411291
ref: 0-2
51106-28411

DAMPER SET

€ 267.00

0-3

5110028620291
ref: 0-3

DAMPER SET

€ 0.00

1

5113036010
ref: 1

TUBE,OUTER,RIGHT

€ 87.00

1

5113036010
ref: 1

TUBE,OUTER,RIGHT

€ 87.00

2

5114036010
ref: 2

TUBE,OUTER,LEFT

€ 87.00

2

5114036010
ref: 2

TUBE,OUTER,LEFT

€ 87.00

3

5114036011
ref: 3

TUBE,OUTER,LEFT

€ 87.00

4

5115308011
ref: 4

SEAL,OIL

€ 10.50

5

0211104087
ref: 5
02112-04087

SCREW

€ 1.50

6

5118303010
ref: 6

GASKET,DRAIN,PLUG (NAS)

€ 3.00

7-1

5113216510
ref: 7-1

HOLDER,AXLE

€ 11.50

7-2

5113216511
ref: 7-2

HOLDER,AXLE

€ 11.50

8

0832221088
ref: 8
08322-01087

WASHER

€ 2.00

9

0832121088
ref: 9
08321-01087

LOCK WASHER

€ 2.00

10

0914008005
ref: 10
09140-08017

NUT (8MM)

€ 1.50

11

5111128410
ref: 11

TUBE,FORK,INNER

€ 135.50

12

5111828312
ref: 12

SNAP RING

€ 2.50

13-1

5111228310
ref: 13-1

PISTON

€ 0.00

13-2

5111228311
ref: 13-2

PISTON

€ 0.00

14-1

5114628310
ref: 14-1

CYLINDER,FRONT FORK

€ 19.00

14-2

5114628311
ref: 14-2

CYLINDER,FRONT FORK

€ 30.00

15

5117325010
ref: 15

SEAL,DUST

€ 10.00

16-1

5141028012
ref: 16-1

STEM,STEERING

€ 72.50

16-2

5141028013
ref: 16-2
51410-36260

STEM,STEERING

€ 72.50

17

5162133001
ref: 17

RACE,STEERING OUTER LWR

€ 10.00

18

5117128410
ref: 18

SPRING,FRONT FORK

€ 29.50

19

5117228010
ref: 19

GUIDE,SPRING

€ 0.00

20

5118629620
ref: 20

SEAT,SPRING

€ 0.00

21-1

5155307110
ref: 21-1

CUSHION,HEADLAMP BRACKET

€ 1.50

21-2

5155328010
ref: 21-2

CUSHION,HEADLAMP BRACKET

€ 0.00

22

5155428010
ref: 22

CUSHION,HEADLAMP BRACKET

€ 0.00

23

5155728010
ref: 23

NO PRODUCT DESCRIPTION AVAILABLE

€ 5.50

24-1

5153029621
ref: 24-1

BRACKET,HEADLAMP HOUSING

€ 54.00

24-2

5153029630126
ref: 24-2
51500-29820-126

BRACKET,HEADLAMP HOUSING

€ 39.50

24-3

5153029630291
ref: 24-3
51500-29820-126

BRACKET,HEADLAMP HOUSING

€ 39.50

25

5153028620291
ref: 25

BRACKET,HEADLAMP HOUSING

€ 13.50

26-1

5154029621
ref: 26-1

BRACKET,HEADLAMP,LEFT

€ 75.50

26-2

5154029630126
ref: 26-2
51500-29820-126

BRACKET,HEADLAMP,LEFT

€ 41.00

26-3

5154029630291
ref: 26-3
51500-29820-126

BRACKET,HEADLAMP,LEFT

€ 39.00

27

5154028620291
ref: 27

BRACKET,HEADLAMP,LEFT

€ 18.50

28

5155120210
ref: 28

SEAT,HEADLAMP BRACKET

€ 4.00

29

5155828010
ref: 29

GUIDE, COVER

€ 7.50

30

5145115113
ref: 30
01104-10388

BOLT,FORK INNER TUBE F

€ 2.50

31

5145128012
ref: 31

BOLT,FR FORK LWR(12X33)

€ 11.50

32

0832121128
ref: 32
08321-01127

WASHER,LOCK 12

€ 2.50

33

5145536010
ref: 33

CLIP

€ 6.50

34-1

5131128011019
ref: 34-1

HEAD,STEERING STEM

€ 65.50

34-2

5131126210019
ref: 34-2

HEAD,STEERING STEM

€ 41.00

35

5118029010
ref: 35

CAP

€ 41.50

36

5118929010
ref: 36

CAP,FRONT FORK

€ 7.50

37

5135120010
ref: 37
51351-29400

BOLT,FORK INNER TUBE

€ 25.00

38-1

5135622011
ref: 38-1

WASHER

€ 6.00

38-2

5135622012
ref: 38-2

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

39

5621127210019
ref: 39
56211-29320-291

HOLDER,HANDLEBAR

€ 12.00

40

0122108357
ref: 40
01204-08357

Bolt

€ 3.50

41

0211206108
ref: 41
02112-06107

SCREW

€ 1.50

42

0832121060
ref: 42
08321-01067

LOCK WASHER

€ 2.50

43

5145330011
ref: 43

CLIP

€ 3.50

44

5114736010
ref: 44

BOLT

€ 2.50

45

5114834010
ref: 45
51148-36011

GASKET

€ 4.00

46

0832121108
ref: 46
08321-01107

LOCK WASHER

€ 2.00

47

5113731010
ref: 47
09108-08142

BOLT,STUD

€ 2.00

48

5119528311
ref: 48

PIECE,OIL LOCK

€ 6.50
