FRAME

TS125 1978 (C) USA (E03)

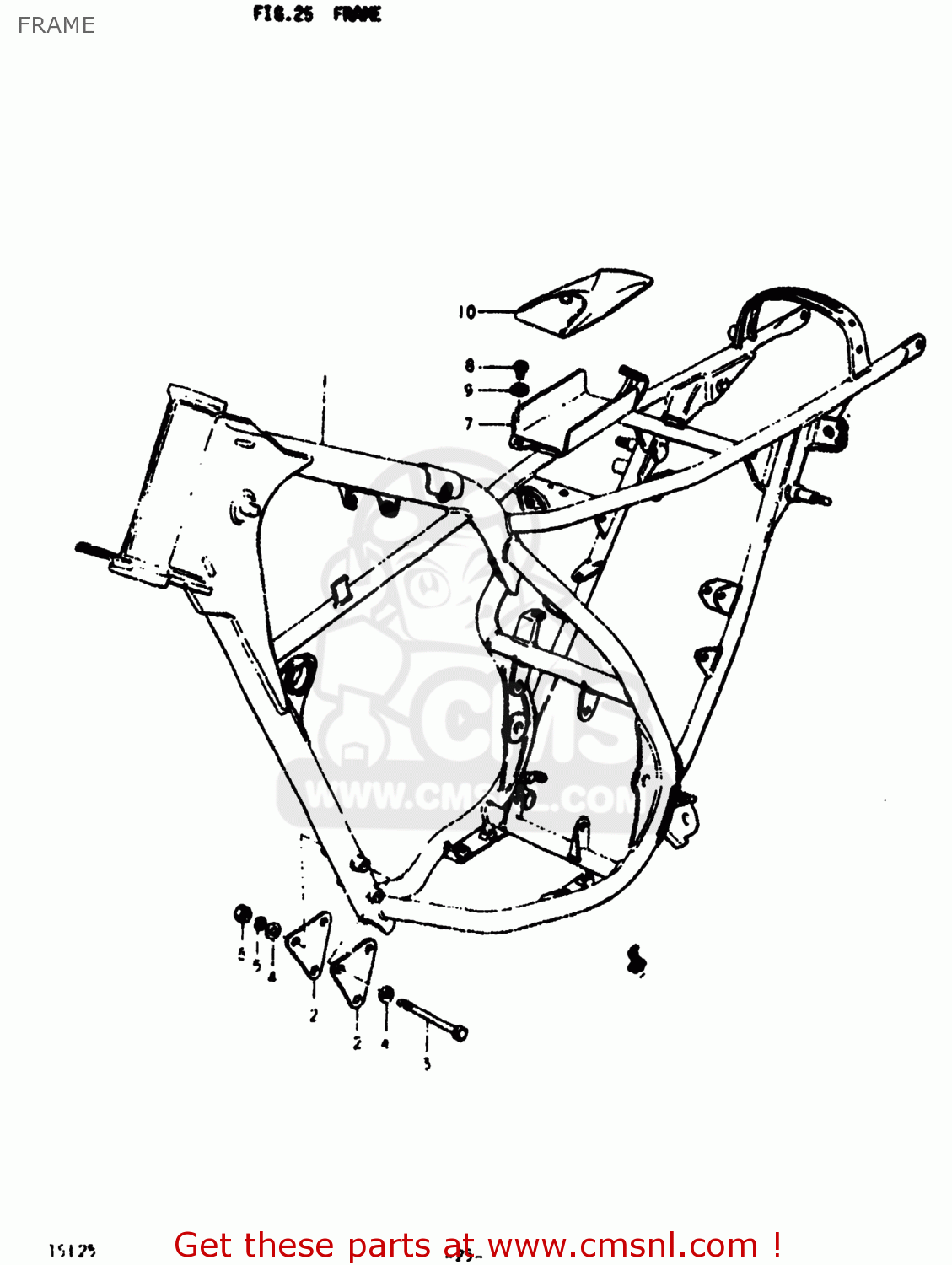

Frame diagram TS125 1978 (C) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110048000019
ref: 1-1
41100-48021-019

FRAME

€ 0.00

1-2

4110048001019
ref: 1-2
41100-48021-019

FRAME

€ 0.00

4199148000
ref: 2

PLATE,ENG MTG

€ 0.00

0110708758
ref: 3
01500-0875B

BOLT,8X75

€ 3.00

0832211088
ref: 4
08322-01087

WASHER

€ 2.00

0832121088
ref: 5
08321-01087

LOCK WASHER

€ 2.00

0831012068
ref: 6
08310-00067

NUT

€ 2.50

4155029301
ref: 7

HOLDER,TOOL

€ 0.00

0211206108
ref: 8
02112-06107

SCREW

€ 1.50

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

0980000108
ref: 10
09800-21028

TOOL SET

€ 43.50
