STAND - FOOTREST
TS125 1978 (C) USA (E03)

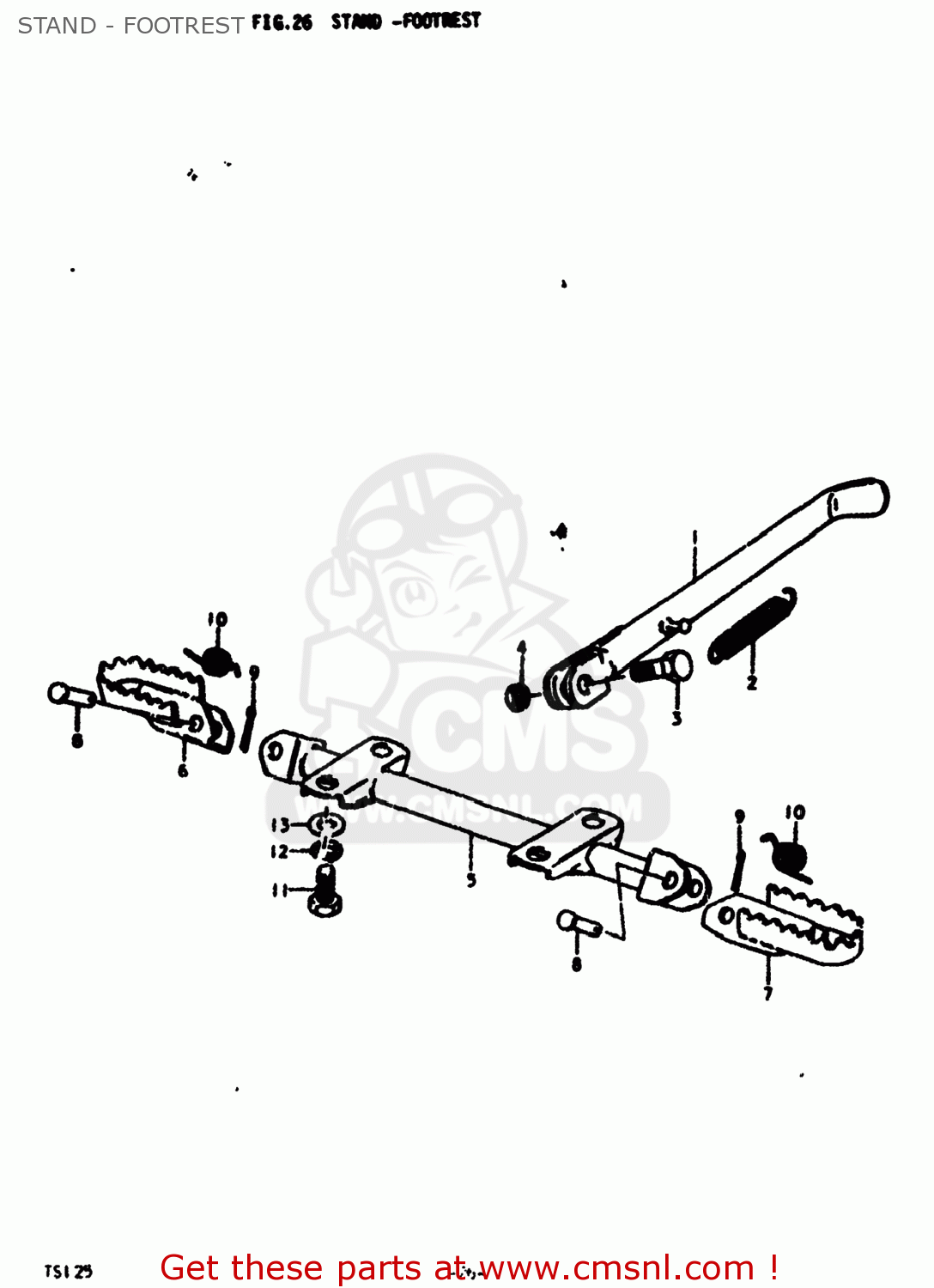

Stand - footrest diagram TS125 1978 (C) USA (E03)
STAND - FOOTREST TS125 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231048000
ref: 1
42310-05280-019
STAND,SIDE
€ 94.50
2
0944314005
ref: 2
09443-14017
SPRING
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
4
0831022108
ref: 4
08310-00107
NUT
€ 2.50
5
4351048001
ref: 5
BAR,FR FOOTREST
€ 32.50
6
4355029300
ref: 6
FOOTREST,FR,R
€ 11.50
7
4356029300
ref: 7
FOOTREST,FR,L
€ 11.50
8
0920010008
ref: 8
PIN
€ 3.00
9
0411120208
ref: 9
04111-2020A
PIN 20X20
€ 1.50
10
0944815004
ref: 10
SPRING
€ 2.50
11
0110706208
ref: 11
01500-06207
BOLT
€ 2.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
08322-01087
WASHER
€ 2.00
