AIR CLEANER

TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

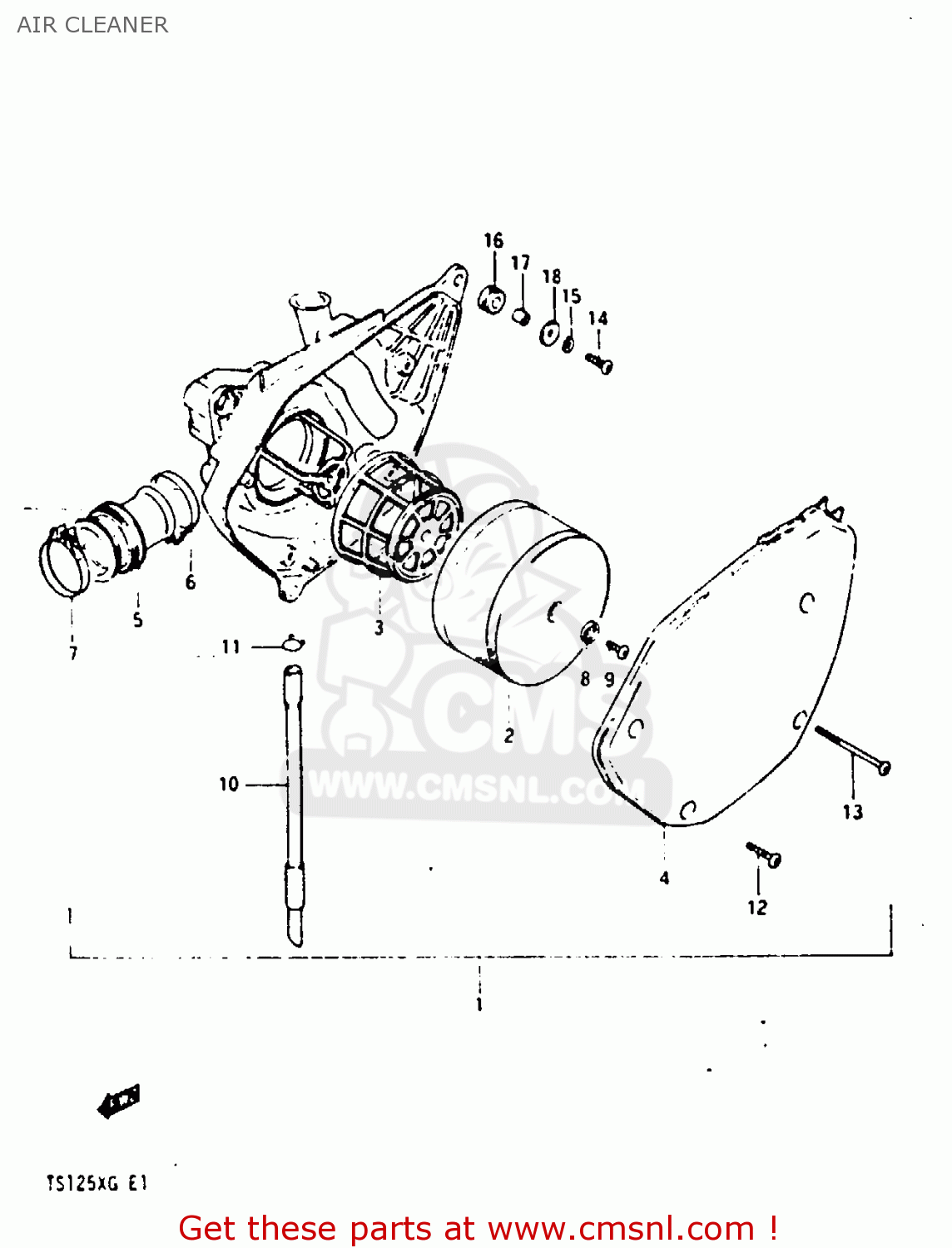

Air cleaner diagram TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

AIR CLEANER TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

AIR CLEANER TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

prices are in EUR

ref

part #

description

quantity

1

1370001A00
ref: 1

CLEANER ASSY, AIR

€ 159.00

2

1378101A00
ref: 2

FILTER

€ 37.00

3

1379101A00
ref: 3

HOLDER

€ 9.00

4

1374001A00
ref: 4

CAP

€ 37.00

5

1388101A00
ref: 5

TUBE, OUTLET

€ 15.00

6

0940258207
ref: 6

CLAMP

€ 5.50

7

0940250207
ref: 7

CLAMP

€ 5.00

8

1379616700
ref: 8

WASHER,FILTER HOLDER

€ 2.50

9

0214205165
ref: 9

SCREW

€ 2.50

10

1387011261
ref: 10

TUBE, DRAIN

€ 13.50

11

1382400A00
ref: 11

CLIP

€ 2.50

12

0214205305
ref: 12

SCREW

€ 2.50

13

0214205755
ref: 13

SCREW

€ 3.00

14

0211206205
ref: 14

SCREW

€ 2.00

15

0832121064
ref: 15

WASHER,LOCK

€ 2.00

16

0932008007
ref: 16

CUSHION

€ 4.00

17

0918007005
ref: 17

SPACER (7X9X7)

€ 2.50

18

0916006006
ref: 18

WASHER

€ 2.00
