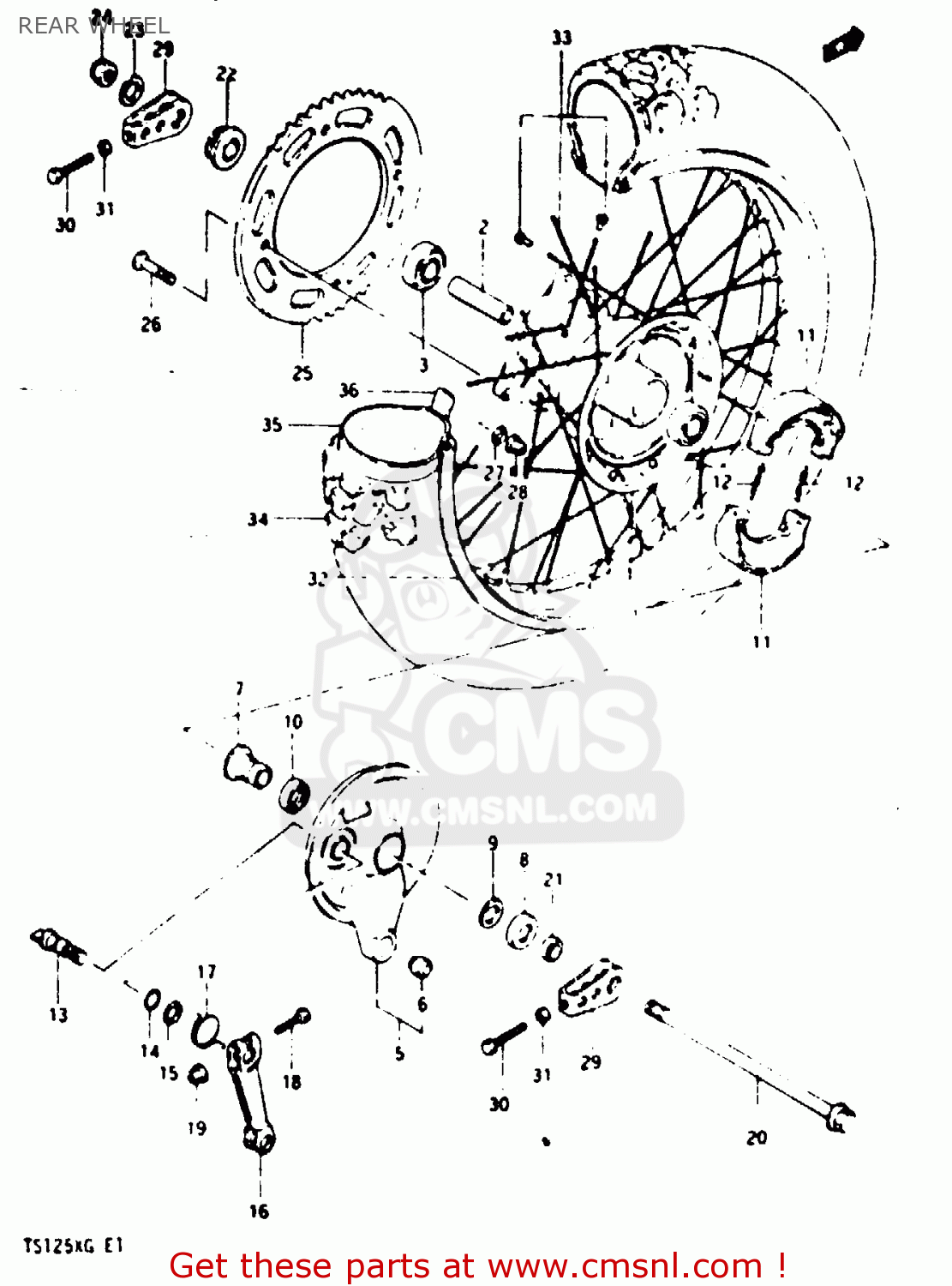

REAR WHEEL

ref

part #

description

quantity

1

6411001A01
ref: 1

HUB, REAR

€ 329.50

2

0918015070
ref: 2

SPACER(15.3X21.7X100)

€ 12.00

3

0812362027
ref: 3

BEARING

€ 14.50

4

0812363027
ref: 4

BEARING

€ 19.00

5

6420001810
ref: 5

PANEL SET, REAR

€ 149.50

6

6435240401
ref: 6

SPHERICAL BRNG,TORQUE LINK

€ 69.50

7

6421314100
ref: 7

SPACER,RR BRAKE ANCHOR PANEL

€ 17.00

8

6484514100
ref: 8

CVR,RR BRAKE AHR PNL DUST SEAL

€ 10.00

9

0821115281
ref: 9

WASHER,THRUST

€ 2.50

10

0928320031
ref: 10

SEAL,OIL(20X27X5)

€ 5.00

11

6441001A00
ref: 11

SHOE, BRAKE

€ 32.00

12

6443040300
ref: 12

SPRING

€ 6.50

13

6444101A00
ref: 13

CAM, BRAKE

€ 10.50

14

0928014003
ref: 14

O-RING (D:2.4 ID:13.8)

€ 3.50

15

0916014001
ref: 15

WASHER (14.5X22X1.6)

€ 2.50

16

6445101A00
ref: 16

LEVER,RR BRAKE CAM

€ 45.00

17

0944830007
ref: 17

SPRING

€ 19.00

18

0151706358
ref: 18

BOLT 6X35

€ 2.50

19

0915906017
ref: 19

NUT

€ 2.50

20

6471101A01
ref: 20

AXLE,RR

€ 25.00

21

0918015071
ref: 21

SPACER, RH

€ 10.50

22

6475001A01
ref: 22

SPACER,RR AXLE,L

€ 17.50

23

0832211148
ref: 23

WASHER

€ 2.00

24

0915914008
ref: 24

NUT

€ 5.00

25

6451101A10
ref: 25

SPROCKET,RR

€ 80.00

26

0912008004
ref: 26

SCREW(8X33.5)

€ 3.00

27

0832211088
ref: 27

WASHER

€ 2.00

28

0831931088
ref: 28

NUT

€ 2.50

29

6141032400
ref: 29

ADJUSTER,CHAIN

€ 22.00

30

0910408006
ref: 30

BOLT

€ 3.00

31

0831012088
ref: 31

NUT

€ 2.00

32-1

6531101A10
ref: 32-1
MODEL E/F

RIM, WHEEL (2.15*18)

€ 84.00

32-2

6531101A20
ref: 32-2
MODEL G

RIM, WHEEL (2.15*18) GOLD

€ 84.00

33

6532001A10
ref: 33

SPOKE SET, REAR

€ 45.00

34

6510001A30
ref: 34

TIRE, REAR (110/80-18) BS

€ 192.50

35

6520033030
ref: 35

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

36

6526129230
ref: 36

PROTECTOR,WHEEL,INNER

€ 5.50
