REAR BRAKE

TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

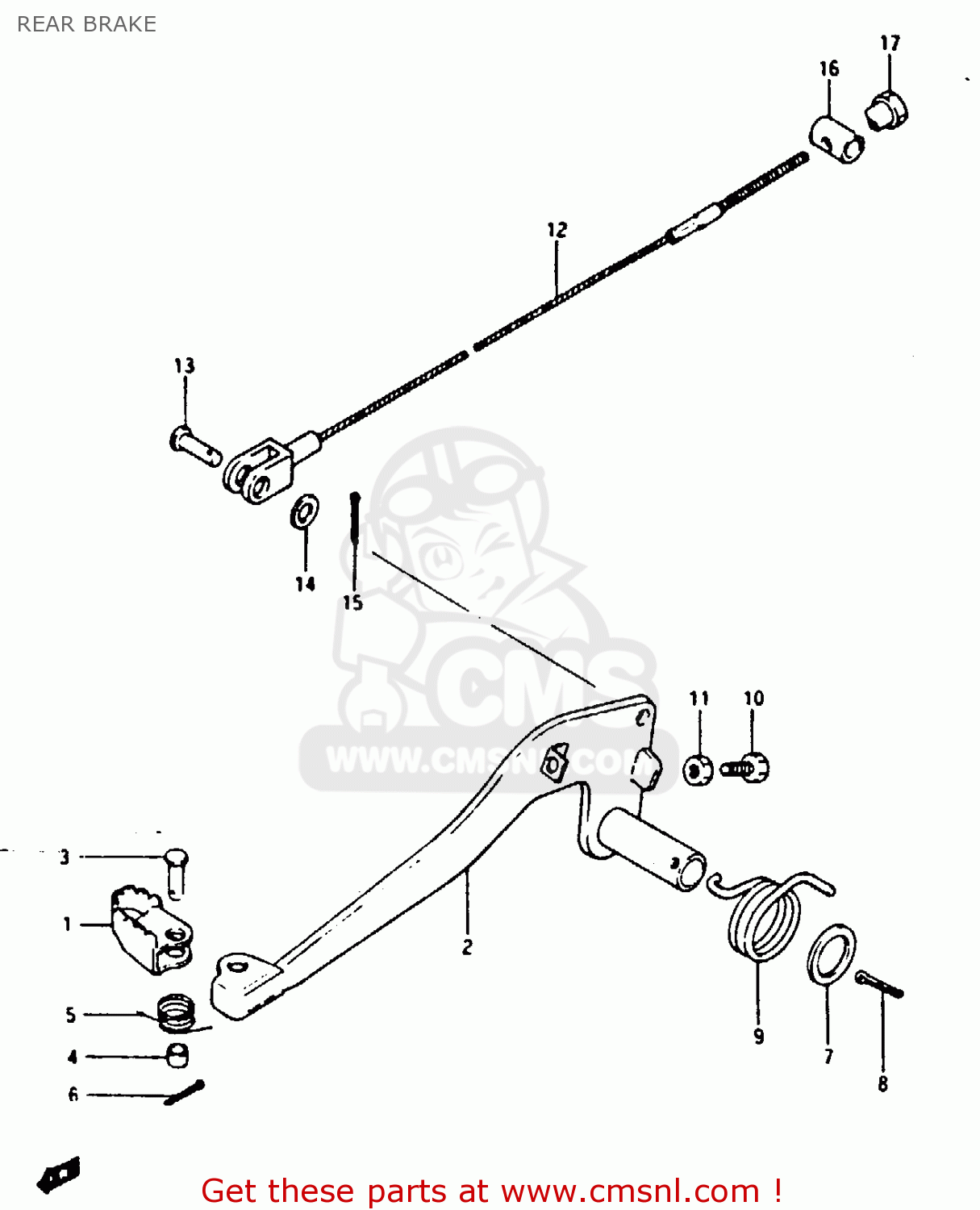

Rear brake diagram TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

REAR BRAKE TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

REAR BRAKE TS125X 1984 (E) (E01 E02 E04 E06 E15 E17 E18 E21 E22 E24 E27)

prices are in EUR

ref

part #

description

quantity

1

4311014130
ref: 1

PEDAL,BRAKE

€ 6.00

2

4312001A00
ref: 2

ARM, BRAKE PEDAL

€ 41.00

3

0920006038
ref: 3

PIN

€ 2.00

4

0913006137
ref: 4

SPACER

€ 0.00

5

0944411004
ref: 5

SPRING

€ 3.00

6

0411120158
ref: 6

PIN

€ 1.50

7

0916015002
ref: 7

WASHER(15.5X26X2.3)

€ 2.00

8

0411130308
ref: 8

COTTER PIN

€ 1.50

9

0944831028
ref: 9

SPRING

€ 6.50

10

0912806028
ref: 10

SCREW(6X23)

€ 2.00

11

0831011068
ref: 11

NUT

€ 2.50

12

5851001A00
ref: 12

CABLE,RR BRAKE

€ 16.50

13

0920005001
ref: 13

PIN(L:17.5)

€ 1.50

14

0832221068
ref: 14

WASHER

€ 2.00

15

0411120208
ref: 15

PIN 20X20

€ 1.50

16

0920913004
ref: 16

PIN

€ 7.50

17

0915006009
ref: 17

NUT (6MM)

€ 3.50
