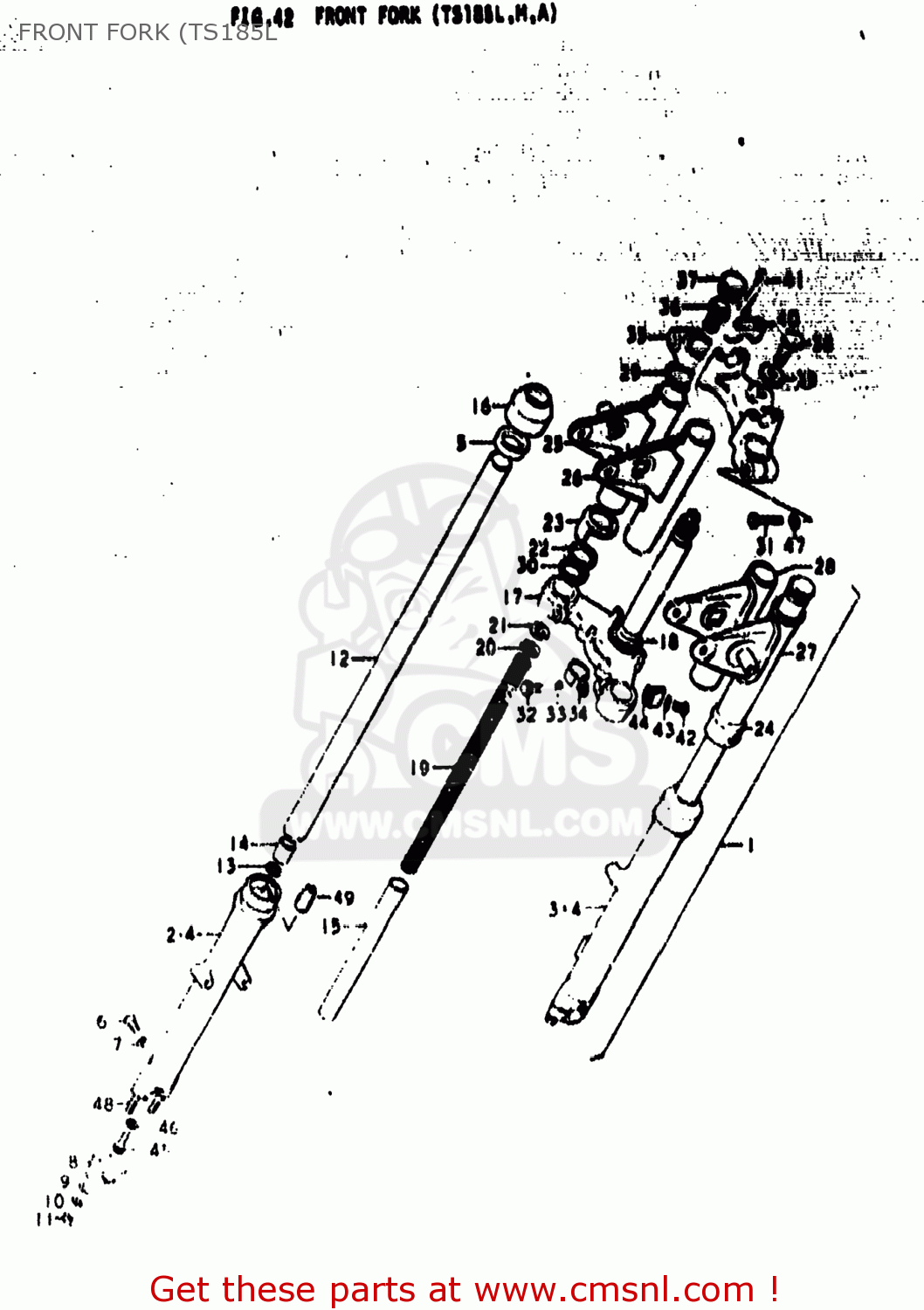

FRONT FORK (TS185L

ref

part #

description

quantity

1-1

5110028410019
ref: 1-1

DAMPER SET

€ 267.00

1-2

5110028410126
ref: 1-2

DAMPER SET

€ 267.00

1-3

5110028620291
ref: 1-3

DAMPER SET

€ 0.00

2

5113036010
ref: 2

TUBE,OUTER,RIGHT

€ 87.00

2

5113036010
ref: 2

TUBE,OUTER,RIGHT

€ 87.00

3

5114036010
ref: 3

TUBE,OUTER,LEFT

€ 87.00

3

5114036010
ref: 3

TUBE,OUTER,LEFT

€ 87.00

4

5114036011
ref: 4

TUBE,OUTER,LEFT

€ 87.00

5

5115308011
ref: 5

SEAL,OIL

€ 10.50

6

0211104087
ref: 6
02112-04087

SCREW

€ 1.50

7

5118303010
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 3.00

8-1

5113216510
ref: 8-1

HOLDER,AXLE

€ 11.50

8-2

5113216511
ref: 8-2

HOLDER,AXLE

€ 11.50

9

0832221088
ref: 9
08322-01087

WASHER

€ 2.00

10

0832121088
ref: 10
08321-01087

LOCK WASHER

€ 2.00

11

0914008005
ref: 11
09140-08017

NUT (8MM)

€ 1.50

12

5111128410
ref: 12

TUBE,FORK,INNER

€ 135.50

13

5111828312
ref: 13

SNAP RING

€ 2.50

14-1

5111228310
ref: 14-1

PISTON

€ 0.00

14-2

5111228311
ref: 14-2

PISTON

€ 0.00

15-1

5114628310
ref: 15-1

CYLINDER,FRONT FORK

€ 19.00

15-2

5114628411
ref: 15-2

CYLINDER,FRONT FORK

€ 0.00

16

5117325010
ref: 16

SEAL,DUST

€ 10.00

17-1

5141028012
ref: 17-1

STEM,STEERING

€ 72.50

17-2

5141028013
ref: 17-2
51410-36260

STEM,STEERING

€ 72.50

18

5162133001
ref: 18

RACE,STEERING OUTER LWR

€ 10.00

19

5117128410
ref: 19

SPRING,FRONT FORK

€ 29.50

20

5117228010
ref: 20

GUIDE,SPRING

€ 0.00

21

5118629620
ref: 21

SEAT,SPRING

€ 0.00

22-1

5155307110
ref: 22-1

CUSHION,HEADLAMP BRACKET

€ 1.50

22-2

5155325010
ref: 22-2
51553-25210

CUSHION,HEADLAMP BRACKET

€ 6.50

23

5155420010
ref: 23

COVER, STEERING STEM RH

€ 0.00

24

5155728010
ref: 24

NO PRODUCT DESCRIPTION AVAILABLE

€ 5.50

25-1

5153029621
ref: 25-1

BRACKET,HEADLAMP HOUSING

€ 54.00

25-2

5153029630126
ref: 25-2
51500-29820-126

BRACKET,HEADLAMP HOUSING

€ 39.50

26

5153028620291
ref: 26

BRACKET,HEADLAMP HOUSING

€ 13.50

27-1

5154029621
ref: 27-1

BRACKET,HEADLAMP,LEFT

€ 75.50

27-2

5154029630126
ref: 27-2
51500-29820-126

BRACKET,HEADLAMP,LEFT

€ 41.00

28

5154028620291
ref: 28

BRACKET,HEADLAMP,LEFT

€ 18.50

29

5155120210
ref: 29

SEAT,HEADLAMP BRACKET

€ 4.00

30

5155828010
ref: 30

GUIDE, COVER

€ 7.50

31-1

5145115112
ref: 31-1

BOLT,FORK INNER TUBE F

€ 2.50

31-2

5145115113
ref: 31-2
01104-10388

BOLT,FORK INNER TUBE F

€ 2.50

32-1

5145128011
ref: 32-1

BOLT,FORK INNER TUBE F

€ 11.50

32-2

5145128012
ref: 32-2

BOLT,FR FORK LWR(12X33)

€ 11.50

33

0832121128
ref: 33
08321-01127

WASHER,LOCK 12

€ 2.50

34

5145536010
ref: 34

CLIP

€ 6.50

35

5131128210019
ref: 35
51311-29320-291

HEAD,STEERING STEM

€ 65.50

36

5118029010
ref: 36

CAP

€ 41.50

37

5118929010
ref: 37

CAP,FRONT FORK

€ 7.50

38

5135120010
ref: 38
51351-29400

BOLT,FORK INNER TUBE

€ 25.00

39-1

5135622011
ref: 39-1

WASHER

€ 6.00

39-2

5135622012
ref: 39-2

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

40

5621127210019
ref: 40
56211-29320-291

HOLDER,HANDLEBAR

€ 12.00

41

0122108357
ref: 41
01204-08357

Bolt

€ 3.50

42

0211206108
ref: 42
02112-06107

SCREW

€ 1.50

43

0832121068
ref: 43
08321-01067

LOCK WASHER

€ 2.50

44

5145330011
ref: 44

CLIP

€ 3.50

45

5114736010
ref: 45

BOLT

€ 2.50

46-1

5114836010
ref: 46-1

GASKET

€ 4.00

46-2

5114834010
ref: 46-2
51148-36011

GASKET

€ 4.00

47

0832121108
ref: 47
08321-01107

LOCK WASHER

€ 2.00

48

5113731010
ref: 48
09108-08142

BOLT,STUD

€ 2.00

49

5119528311
ref: 49

PIECE,OIL LOCK

€ 6.50
