REAR FENDER (TS185K)
TS185 1975 (M) USA (E03)

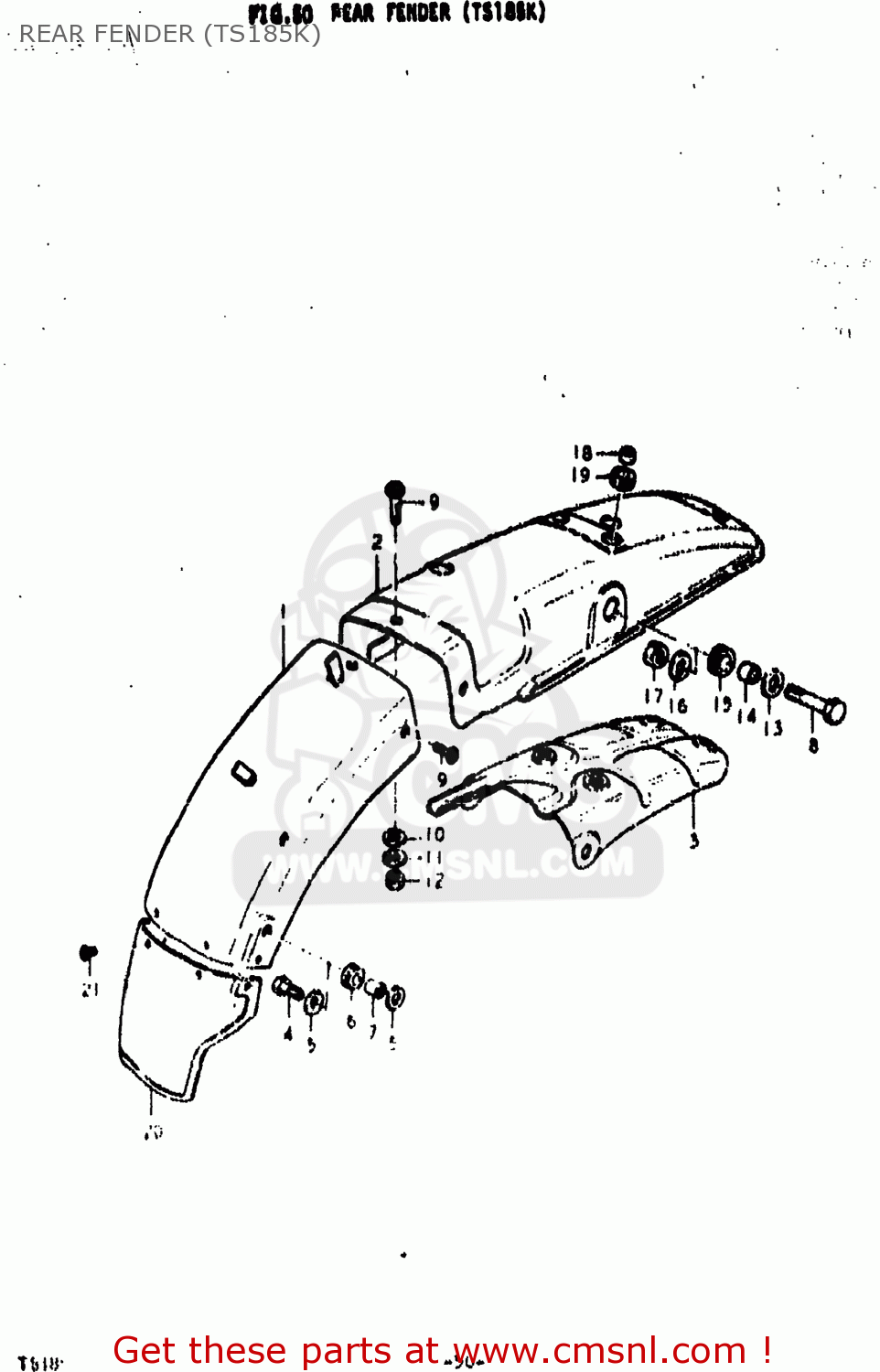

Rear fender (ts185k) diagram TS185 1975 (M) USA (E03)
REAR FENDER (TS185K) TS185 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311029600
ref: 1
FENDER,REAR
€ 37.50
2-1
6311328000279
ref: 2-1
63113-28000-737
FENDER,REAR
€ 28.00
2-2
6311328000713
ref: 2-2
63113-28000-737
FENDER,REAR
€ 28.00
3
6312028000
ref: 3
REINFORCEMENT,REAR FENDER
€ 42.00
4
0111206168
ref: 4
01500-06167
BOLT
€ 3.00
5
0916006027
ref: 5
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
6
0932008007
ref: 6
09320-08021
CUSHION
€ 4.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0112210458
ref: 8
01500-1045A
BOLT
€ 2.00
9
0214105127
ref: 9
02142-05127
SCREW
€ 1.50
10
0832211058
ref: 10
08322-01057
WASHER 5MM
€ 2.50
11
0832121058
ref: 11
08321-0105A
LOCK WASHER
€ 2.00
12
0831111058
ref: 12
08310-00057
NUT
€ 2.50
13
0916010031
ref: 13
09160-10126
WASHER
€ 2.50
14
0918010026
ref: 14
SPACER
€ 6.00
15
0932012011
ref: 15
CUSHION
€ 3.00
16
0832121108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17
0831231108
ref: 17
08310-00107
NUT
€ 2.50
18
0918006038
ref: 18
SPACER(6.1X9X7.5)
€ 2.00
19
0932008001
ref: 19
CUSHION
€ 3.50
20
6341129000
ref: 20
MUD GUARD,REAR FENDER
€ 6.50
21
0214105107
ref: 21
02142-05107
SCREW
€ 2.50
