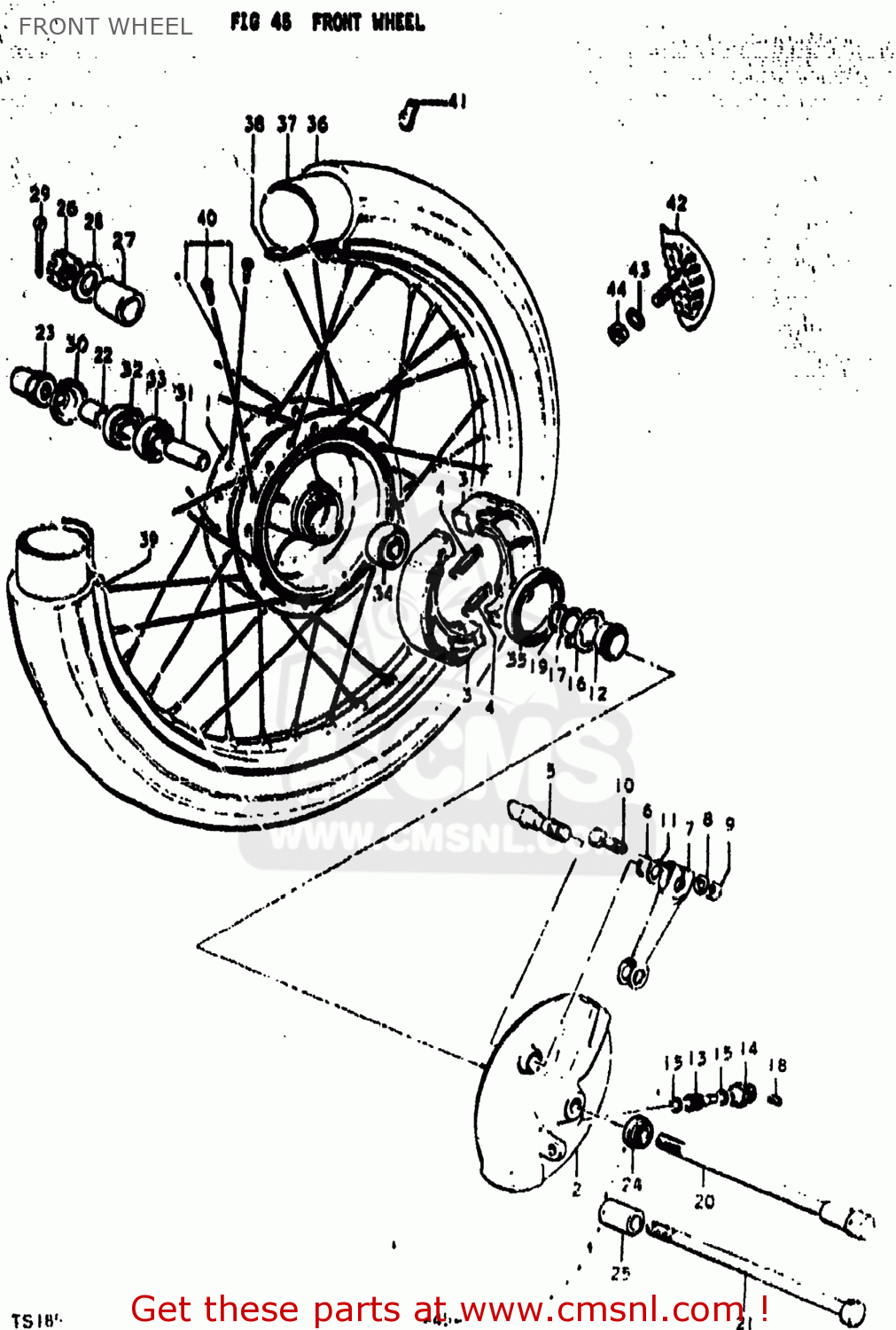

FRONT WHEEL

ref

part #

description

quantity

1-1

5411028001
ref: 1-1
54110-28003

HUB,FRONT

€ 95.50

1-2

5411007001
ref: 1-2
54110-07003

HUB,FRONT

€ 137.50

1-2

5411007001
ref: 1-2
54110-07003

HUB,FRONT

€ 137.50

2-1

5421028002
ref: 2-1

PANEL,FRONT HUB

€ 55.50

2-2

5421028400
ref: 2-2

PANEL,FRONT HUB

€ 69.00

3-1

5441001004
ref: 3-1
54400-35860

SHOE,BRAKE

€ 39.00

3-2

5441007001
ref: 3-2
54401-07810

SHOE,BRAKE

€ 35.00

3-3

5441007002
ref: 3-3
54401-07810

SHOE,BRAKE

€ 35.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444128000
ref: 5-1

CAM,FRONT BRAKE

€ 19.50

5-2

5444107001
ref: 5-2

CAM,FRONT BRAKE

€ 19.50

5-3

5444101002
ref: 5-3

CAM,FR BRAKE

€ 19.50

6

0928012001
ref: 6

O RING(D:2.5,ID:11.4)

€ 2.50

7-1

5445103601
ref: 7-1
54451-03002

LEVER,FRONT BRAKE CAM

€ 10.50

7-2

5445128400
ref: 7-2

LEVER,FRONT BRAKE CAM

€ 22.00

8

0832221068
ref: 8
08322-01067

WASHER

€ 2.00

9

0831111068
ref: 9
08310-00067

NUT

€ 2.50

10

0910006050
ref: 10
09100-06150

BOLT

€ 1.50

11

0916012011
ref: 11

WASHER(12.5X20X1)

€ 1.50

12-1

5461128001
ref: 12-1
54611-28002

GEAR,SPEEDOMETER

€ 17.50

12-2

5461128401
ref: 12-2
54611-28402

GEAR,SPEEDOMETER

€ 26.00

13-1

5462128000
ref: 13-1
54621-28001

PINION,SPEEDOMETER

€ 13.00

13-2

5462128400
ref: 13-2
54621-28401

PINION,SPEEDOMETER

€ 15.50

14

5463201001
ref: 14

BUSH,METER GEAR OUTER

€ 9.00

15

0916005001
ref: 15
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

16

5466107000
ref: 16

DRIVER,SPEEDOMETER GEAR

€ 3.00

17

0916018002
ref: 17

WASHER(18.5X24X1)

€ 2.00

18

0913403101
ref: 18
09134-03101-A05

SCREW

€ 1.50

19

0833111189
ref: 19

CIRCLIP

€ 2.00

20-1

5471128000
ref: 20-1

AXLE,FRONT

€ 27.00

20-2

5471128401
ref: 20-2

AXLE,FRONT

€ 24.00

20-3

5471128402
ref: 20-3
54711-28303

AXLE,FRONT

€ 22.50

21

5471128303
ref: 21

AXLE,FRONT

€ 22.50

22

0918012040
ref: 22

SPACER(12X18X16.4)

€ 4.50

23

5472136000
ref: 23

NO PRODUCT DESCRIPTION AVAILABLE

€ 7.00

24

5475125500
ref: 24

SPACER,FRONT AXLE,LEFT

€ 3.00

25

0918012062
ref: 25

SPACER (12X20X41)

€ 13.00

26

0831431128
ref: 26
08314-3112A

NUT 12MM

€ 2.00

27

0918012061
ref: 27

SPACER (12X20X44)

€ 4.50

28

0832221128
ref: 28
08322-01127

WASHER

€ 2.00

28

0832221128
ref: 28
08322-01127

WASHER

€ 2.00

29

0411130308
ref: 29
04111-3030A

COTTER PIN

€ 1.50

30-1

5489228001
ref: 30-1

DUST SEAL,FRONT HUB DRUM

€ 2.50

30-2

5489228400
ref: 30-2

DUST SEAL,FRONT HUB DRUM

€ 3.50

31-1

0918012041
ref: 31-1
09180-12144

SPACER (12.6X19X52)

€ 4.50

31-2

5473007000
ref: 31-2

SPACER,FRONT HUB BEARING

€ 9.00

32-1

0928418002
ref: 32-1

OIL SEAL

€ 4.50

32-2

0928418001
ref: 32-2

OIL SEAL(17X38X5)

€ 12.50

33-1

0811362010
ref: 33-1
08113-62017

BEARING

€ 11.00

33-2

0811363010
ref: 33-2

BEARING

€ 9.50

34-1

0814362010
ref: 34-1
08143-62017

BEARING, LH

€ 11.50

34-2

0814363010
ref: 34-2
08143-63017

BEARING, RH

€ 14.50

35-1

0928543001
ref: 35-1
09283-43004

OIL SEAL (43X58X7)

€ 10.00

35-2

0928548001
ref: 35-2

SEAL,OIL(48X62X7)

€ 5.50

36-1

5510029600
ref: 36-1

TIRE,FRONT

€ 47.00

36-2

5510028600
ref: 36-2

TIRE,FRONT

€ 0.00

37-1

5520029010
ref: 37-1

TUBE 2.75-19 070-483MM

€ 0.00

37-2

5520016510
ref: 37-2

TUBE

€ 32.50

38-1

5526129010
ref: 38-1
55261-15010

PROTECTOR,WHEEL,INNER

€ 2.50

38-2

5526116510
ref: 38-2
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

39-1

5531129600
ref: 39-1

RIM,FRONT WHEEL

€ 83.50

39-2

5531128701
ref: 39-2

RIM,FRONT WHEEL

€ 83.50

39-3

5531129620
ref: 39-3

RIM,FRONT WHEEL

€ 76.50

40-1

5530028806
ref: 40-1
55320-28020

SPOKE SET,FRONT

€ 35.50

40-2

5530028830
ref: 40-2

SPOKE SET,FRONT

€ 33.00

40-3

5530029810
ref: 40-3

SPOKE SET,FRONT

€ 14.00

41-1

5541130000
ref: 41-1

BALANCER,WHEEL (50G)

€ 4.50

41-2

5541211000
ref: 41-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

41-2

5541211000
ref: 41-2
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

42

6527028600
ref: 42

STOPPER,BEAD

€ 26.50

43

0832211088
ref: 43
08322-01087

WASHER

€ 2.00

44

0831211088
ref: 44
08310-00087

NUT

€ 2.00
