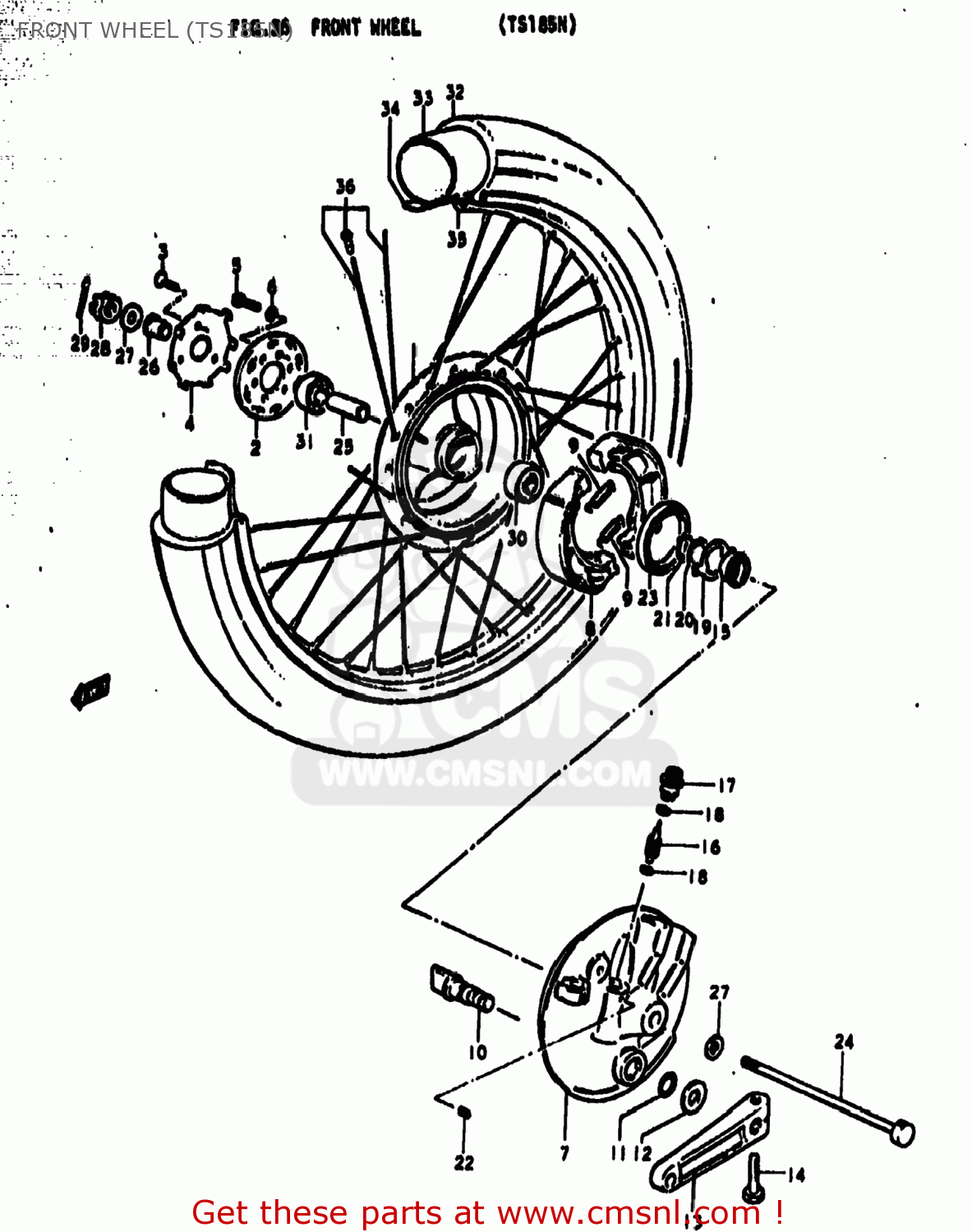

FRONT WHEEL (TS185N)

ref

part #

description

quantity

1

5411029300
ref: 1

HUB,FR WHEEL

€ 156.50

2

5411230500
ref: 2

FLANGE,FR HUB,R

€ 17.00

3

0212206168
ref: 3
02122-06167

SCREW

€ 2.00

4

5415130500
ref: 4

RETAINER,FR HUB BEARING,R

€ 7.00

5

0110706168
ref: 5
01500-06167

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

5421041502
ref: 7

PANEL,FRONT HUB

€ 0.00

8

5441007002
ref: 8
54401-07810

SHOE,BRAKE

€ 35.00

9

0944307001
ref: 9
09443-07025

SPRING(L:34)

€ 2.50

10

5444141300
ref: 10

CAM,FRONT BRAKE

€ 15.50

11

0928012001
ref: 11

O RING(D:2.5,ID:11.4)

€ 2.50

12

0916012011
ref: 12

WASHER(12.5X20X1)

€ 1.50

13

5445141500
ref: 13

LEVER,FRONT BRAKE CAM

€ 22.50

14

0110706258
ref: 14
01500-06257

BOLT

€ 2.00

15

5461141500
ref: 15
54611-41501

GEAR,SPEEDOMETER

€ 8.00

16

5462141500
ref: 16
54621-41501

PINION,SPEEDOMETER

€ 5.00

17

5463201001
ref: 17

BUSH,METER GEAR OUTER

€ 9.00

18

0916005001
ref: 18
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

19

5466129300
ref: 19

DRIVER,SPEEDOMETER GEAR

€ 4.00

20

0916018002
ref: 20

WASHER(18.5X24X1)

€ 2.00

21

0833111189
ref: 21

CIRCLIP

€ 2.00

22

0913403101
ref: 22
09134-03101-A05

SCREW

€ 1.50

23

0928543001
ref: 23
09283-43004

OIL SEAL (43X58X7)

€ 10.00

24

5471116502
ref: 24
54711-16504

AXLE,FRONT

€ 29.50

25

0918012041
ref: 25
09180-12144

SPACER (12.6X19X52)

€ 4.50

26

5474141100
ref: 26

SPACER,FR AXLE,R

€ 10.00

27

0832211128
ref: 27
08322-01127

WASHER

€ 2.00

28

0831431128
ref: 28
08314-3112A

NUT 12MM

€ 2.00

29

0411130308
ref: 29
04111-3030A

COTTER PIN

€ 1.50

30

0814362017
ref: 30

BEARING

€ 11.50

31

0812362017
ref: 31
08133-62017

BEARING, RH

€ 15.00

32

5510028600
ref: 32

TIRE,FRONT

€ 0.00

33

5520016510
ref: 33

TUBE

€ 32.50

34

5526116510
ref: 34
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

35

5531148020
ref: 35

RIM,FR WHEEL(1.60X21)

€ 136.00

36

5530029830
ref: 36
55320-29300

SPOKE SET,FRONT

€ 37.00
