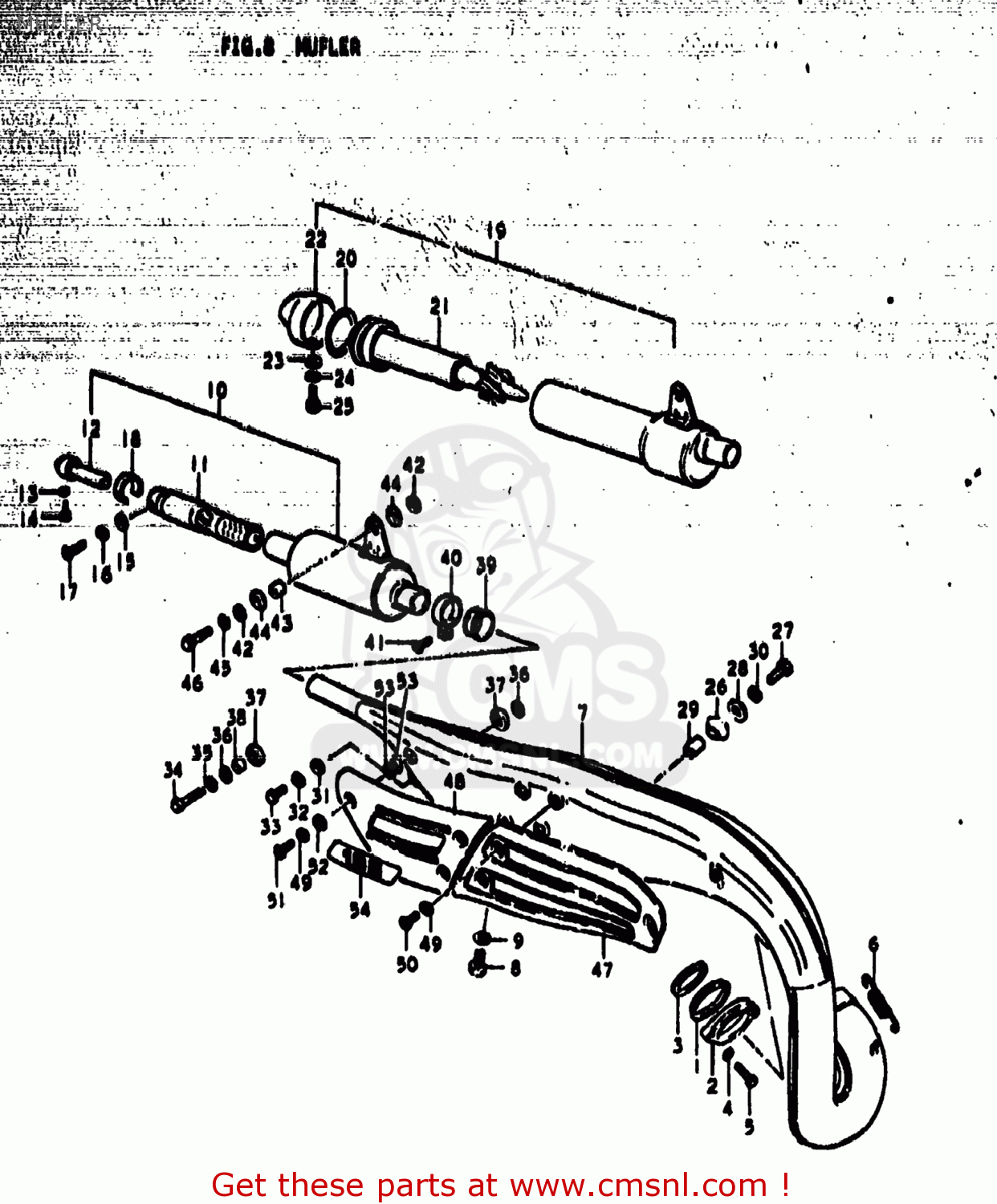

MUFLER

ref

part #

description

quantity

1

1418128080
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 10.50

2

1418228000
ref: 2

CLAMP,EXHAUST PIPE

€ 11.50

3

1418428010
ref: 3
14184-28011

CUSHION,EXHAUST PIPE

€ 4.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

0110706258
ref: 5
01500-06257

BOLT

€ 2.00

6

0944311002
ref: 6

SPRING

€ 4.50

7-1

1431029300
ref: 7-1
14310-29320-H01

BODY,MUFFLER

€ 239.50

7-1

1431029300
ref: 7-1
14310-29320-H01

BODY,MUFFLER

€ 239.50

7-2

1431029671
ref: 7-2
14310-29320-H01

BODY,MUFFLER

€ 239.50

7-3

1431029310
ref: 7-3
14310-29320-H01

BODY,MUFFLER

€ 239.50

7-4

1431029320
ref: 7-4
14310-29320-H01

BODY,MUFFLER

€ 239.50

8

0910010004
ref: 8

BOLT 10X9

€ 1.00

9

0916810002
ref: 9

GASKET(10X14X3.6) (NAS)

€ 2.00

10

1430329600
ref: 10
14303-29600-H01

MUFFLER ASSEMBLY

€ 0.00

11

1481038601
ref: 11

ARRESTER,SPARK

€ 62.00

12

1485038601
ref: 12

TUBE,MUFFLER CLEAN OUT

€ 32.50

13

0832121058
ref: 13
08321-0105A

LOCK WASHER

€ 2.00

14

0211205088
ref: 14
02112-05087

SCREW

€ 2.00

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

0912806013
ref: 17

SCREW(6X8)

€ 1.50

18

1484338600
ref: 18

BAND,SPARK ARRESTER

€ 3.50

19-1

1430329320
ref: 19-1
14303-29321-H01

MUFFLER ASSEMBLY

€ 62.50

19-1

1430329320
ref: 19-1
14303-29321-H01

MUFFLER ASSEMBLY

€ 62.50

19-2

1430329321
ref: 19-2
14303-29321-H01

MUFFLER ASSEMBLY

€ 62.50

20

0928055001
ref: 20

O-RING (D:3.5 ID:54.4)

€ 5.50

21

1485030510
ref: 21

TUBE,MUFFLER CLEAN OUT

€ 22.50

22-1

1464930510
ref: 22-1
14649-30520

COVER,SECOND MUFFLER TAIL

€ 10.00

22-2

1464930511
ref: 22-2
14649-30520

COVER,SECOND MUFFLER TAIL

€ 10.00

23

0832221068
ref: 23
08322-01067

WASHER

€ 2.00

24

0832121068
ref: 24
08321-01067

LOCK WASHER

€ 2.50

25

0912806013
ref: 25

SCREW(6X8)

€ 1.50

26

1477230500
ref: 26

DAMPER,MUFFLER,FR

€ 3.00

27-1

0110708308
ref: 27-1
01500-08307

BOLT (8X30)

€ 2.50

27-2

0110708358
ref: 27-2
01500-0835B

BOLT

€ 3.50

28

0916008005
ref: 28
09160-08134

WASHER

€ 2.50

29

0918008046
ref: 29

SPACER

€ 1.00

30

0832121088
ref: 30
08321-01087

LOCK WASHER

€ 2.00

31

0832221088
ref: 31
08322-01087

WASHER

€ 2.00

32

0832121088
ref: 32
08321-01087

LOCK WASHER

€ 2.00

33

0110708168
ref: 33
01500-0816B

BOLT

€ 2.00

34

0110708258
ref: 34
01500-08257

BOLT

€ 2.50

35

0832121088
ref: 35
08321-01087

LOCK WASHER

€ 2.00

36

0916008010
ref: 36
09160-08054

WASHER (8.2X20X1.6)

€ 1.50

37

0932014006
ref: 37

CUSHION

€ 3.50

38

0918008075
ref: 38
09180-08200

SPACER (8.6X13.8X9.8)

€ 3.00

39

1477138000
ref: 39

CONNECTOR,MUFFLER

€ 25.00

40

0940237601
ref: 40

CLAMP

€ 5.50

41

0211206208
ref: 41
02112-06207

SCREW

€ 2.00

42

0916008005
ref: 42
09160-08134

WASHER

€ 2.50

43-1

0918008050
ref: 43-1
09180-08199

SPACER (8.6X13.8X9)

€ 2.50

43-2

0918008083
ref: 43-2
09180-08201

SPACER

€ 4.50

44

0932014006
ref: 44

CUSHION

€ 3.50

45

0832121088
ref: 45
08321-01087

LOCK WASHER

€ 2.00

46

0110708258
ref: 46
01500-08257

BOLT

€ 2.50

47

1478129300
ref: 47

COVER,MUFFLER,FRONT

€ 20.50

48-1

147822930000N
ref: 48-1

COVER,MUFFLER

€ 11.50

48-2

147822930003K
ref: 48-2

COVER,MUFFLER

€ 13.00

48-3

147822930003J
ref: 48-3

COVER,MUFFLER

€ 10.00

49

0832121068
ref: 49
08321-01067

LOCK WASHER

€ 2.50

50

0211206088
ref: 50
02112-06087

SCREW

€ 2.00

51

0211206128
ref: 51
02112-06127

SCREW 6X12

€ 2.00

52

0832221068
ref: 52
08322-01067

WASHER

€ 2.00

53

0916806005
ref: 53
09168-06105

GASKET 6.2X12X1.5 (MCA)

€ 2.00

54

1479929300
ref: 54

EMBLEM,MUFFLER COVER

€ 7.50

all assemblies
